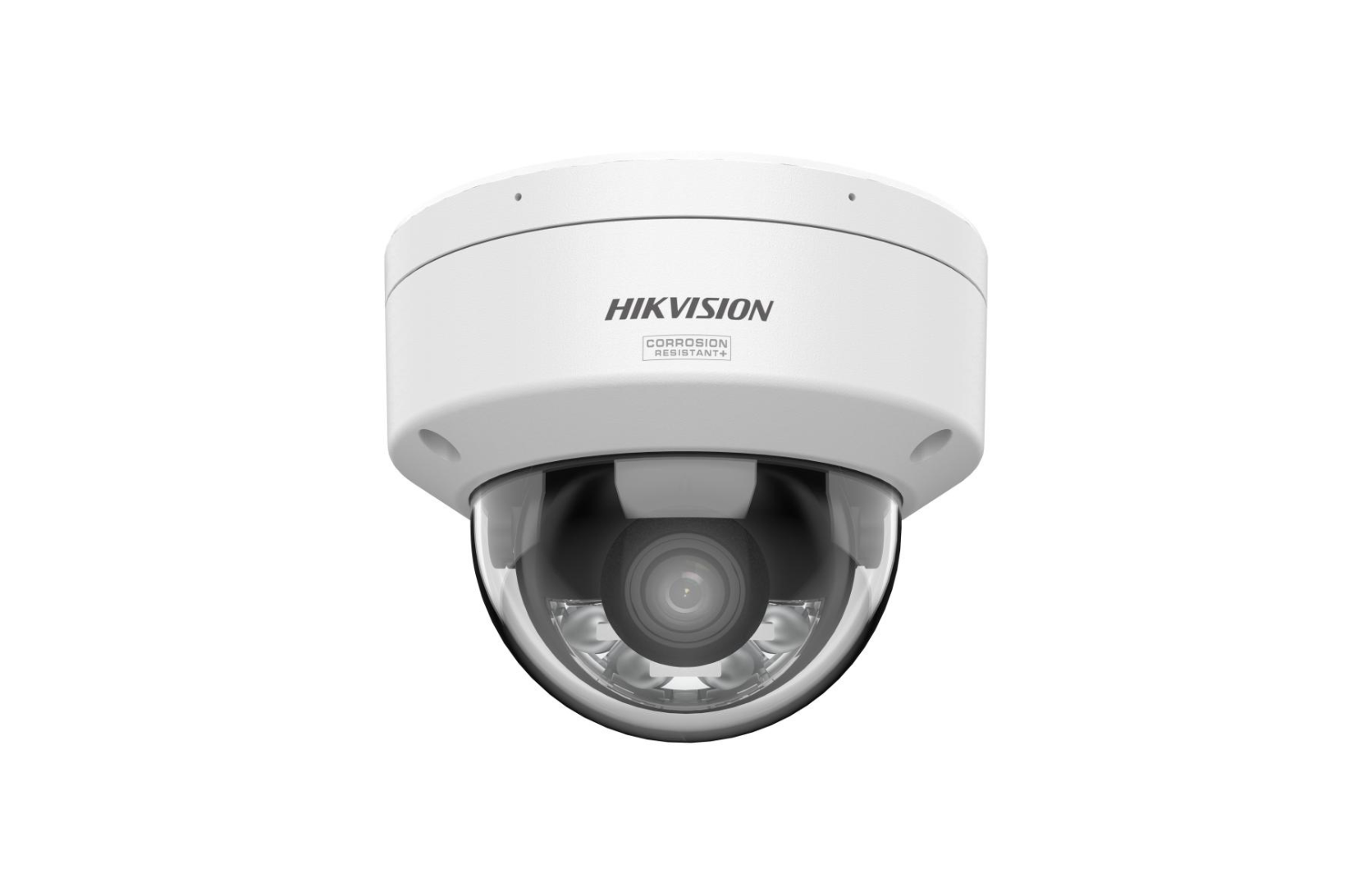

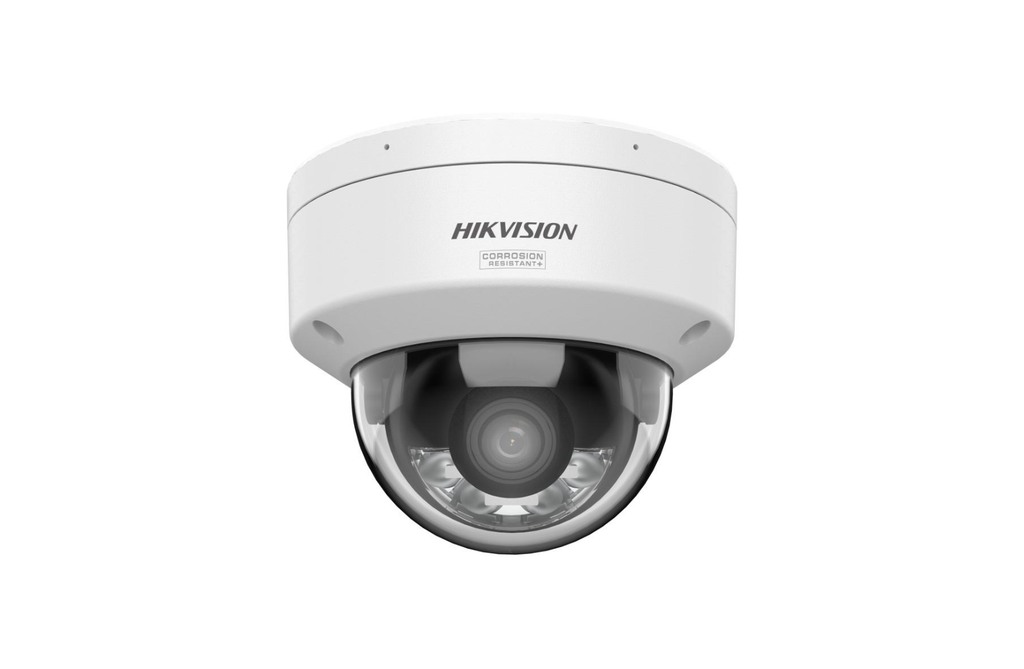

Hikvision DS-2CD2167G3-LIS2UY 6 MP Smart Hybrid Light with ColorVu Fixed Dome Network Camera

6MP Smart Hybrid Light with ColorVu Fixed Dome Network Camera

Key Features

• 6MP resolution (3200 × 1800)
• 1/1.8" Progressive Scan CMOS
• HikAI-ISP for excellent noise reduction
• 24/7 full-colour imaging with ColorVu
• Smart Hybrid Light with IR + White Light
• Up to 30m illumination distance
• Person & vehicle detection with deep learning
• Built-in array dual microphones (-S2U)
• 130dB scene-adaptive WDR
• Face capture and perimeter protection
• IP67 weatherproof
• IK10 vandal resistant
• NEMA 4X anti-corrosion
• microSD storage up to 512GB
• Aluminium alloy dome housing
• Datasheet

Camera

• Sensor: 1/1.8" Progressive Scan CMOS
• Resolution: 3200 × 1800
• Min Illumination: 0.0005 Lux colour / 0 Lux with light
• Shutter: 1s to 1/100,000s
• Day/Night: IR cut filter
• Angle Adjustment: 355° pan / 75° tilt / 355° rotate

Lens

• Lens Options: 2.8mm / 4mm
• Lens Type: Fixed focal
• Mount: M16
• Aperture: F1.0
• Iris: Fixed
• Depth of Field: 3.3m to ∞ (2.8mm) / 3.8m to ∞ (4mm)

Field of View

• 2.8mm: 108.8° H / 56.4° V / 134.3° D
• 4mm: 93.3° H / 47.2° V / 114.2° D

DORI

• 2.8mm: D 89m / O 35m / R 17m / I 8m
• 4mm: D 109m / O 43m / R 21m / I 10m

Lighting

• Type: White Light + IR
• Range: Up to 30m
• Smart Supplement Light: Yes
• IR Wavelength: 850nm

Video

• Main Stream: Up to 30fps @ 3200 × 1800
• Sub Stream: Up to 30fps
• Third Stream: Supported
• Compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Control: CBR / VBR
• ROI: 5 fixed regions
• SVC: H.264 / H.265 supported

Audio

• Built-in array dual microphones (-S2U)
• Mono sound
• Noise filtering supported
• Audio input and output supported
• G.711 / G.722.1 / G.726 / AAC-LC / MP3 / PCM

AI Analytics

• Face capture
• Line crossing
• Intrusion detection
• Region entry / exit
• Human & vehicle filtering
• Scene change detection
• Smart motion detection
• Video tampering alarm

Network & Storage

• LAN: 1 × RJ45 10/100M
• Storage: microSD up to 512GB
• NAS: NFS / SMB / CIFS
• ANR: Supported
• Protocols: ONVIF Profile S/G/T, ISAPI, SDK, IPv4/IPv6, HTTPS, TLS
• Users: Up to 32
• Live View: Up to 6 channels
• Client: iVMS-4200 / Hik-Connect / Hik-Central

Image Features

• 130dB WDR
• 3D DNR
• BLC / HLC
• Defog
• Distortion correction
• EIS image stabilisation
• 8 polygon privacy masks
• SNR: ≥ 52dB

Power

• 12VDC: Max 9W
• PoE: IEEE 802.3af Class 3
• PoE Max: 10.5W

Build

• Material: Aluminium alloy base and cover
• Dimensions: Ø121.5 × 97.6mm
• Weight: 600g
• Package Weight: 825g

Protection

• IP67 weatherproof
• IK10 vandal resistant
• NEMA 4X anti-corrosion
• Operating Temp: -30°C to 60°C

Certifications

• CE
• RCM
• IC
• KC
• UL
• RoHS
• WEEE
• REACH
