Description

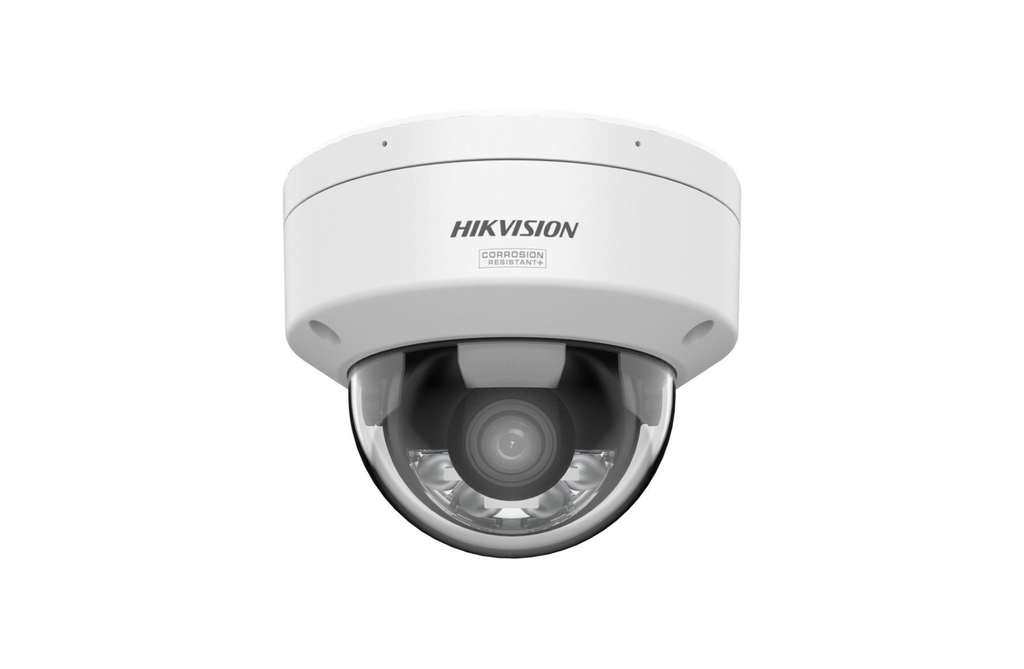

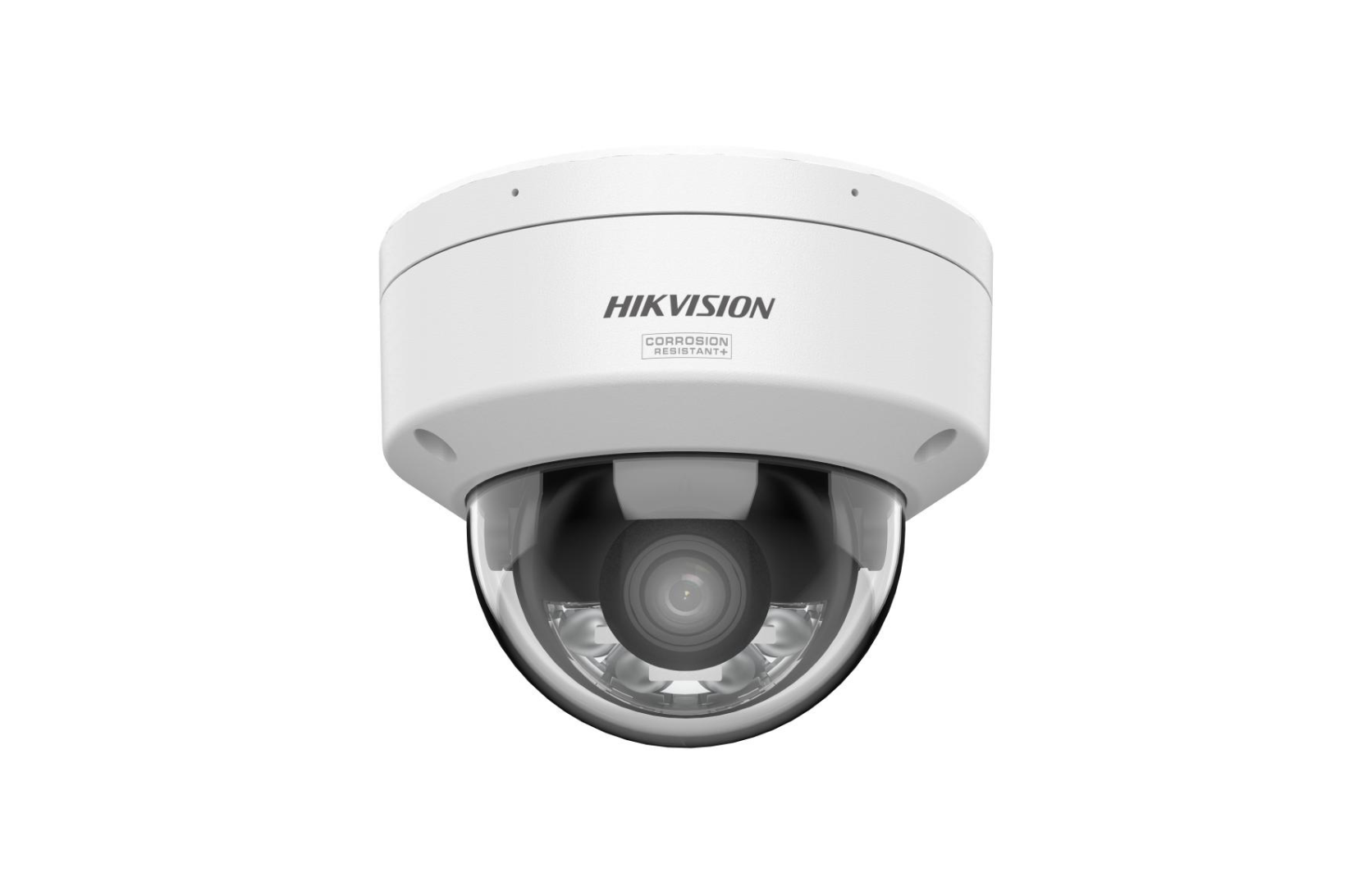

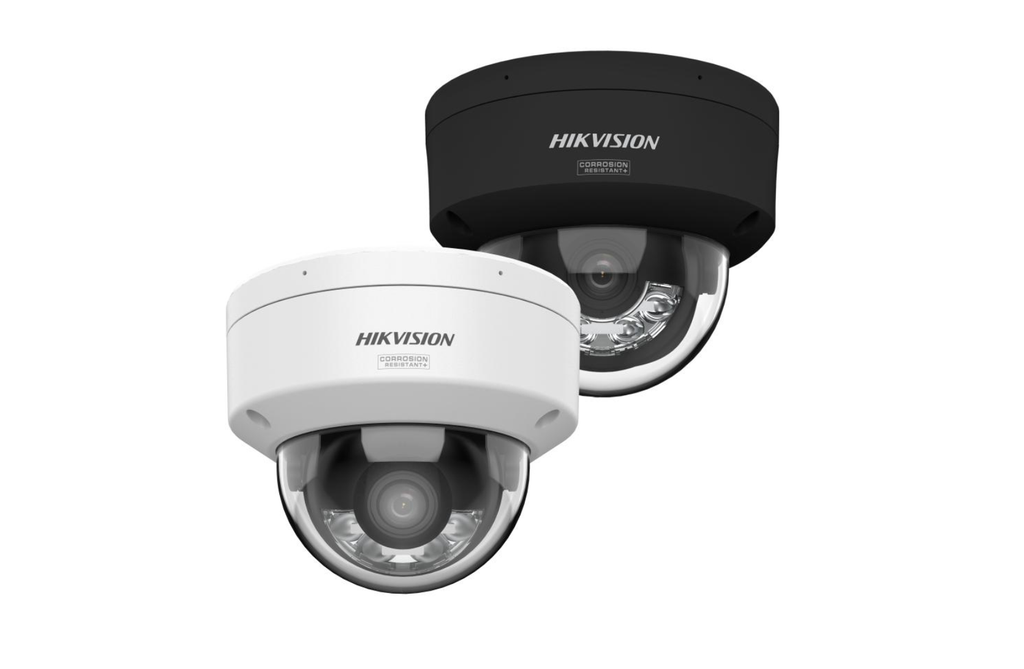

8MP Smart Hybrid Light ColorVu Fixed Mini Dome Network Camera
Key Features
- 8MP ultra-clear resolution (3840 × 2160)
- 1/1.8" Progressive Scan CMOS
- HikAI-ISP for advanced noise reduction
- 24/7 full-colour imaging with ColorVu
- Smart Hybrid Light with IR + White Light
- Up to 30m smart illumination
- Human & vehicle classification with deep learning
- Built-in array dual microphones (-S2U)
- 130dB scene-adaptive WDR
- Face capture and perimeter protection
- IP67 weatherproof
- IK10 vandal resistant
- NEMA 4X anti-corrosion
- microSD storage up to 512GB
- Aluminium alloy mini dome housing
- Datasheet
Camera
- Sensor: 1/1.8" Progressive Scan CMOS
- Resolution: 3840 × 2160
- Minimum Illumination: 0.0005 Lux colour / 0 Lux with supplemental light
- Shutter Speed: 1s to 1/100,000s
- Day/Night: IR cut filter
- Angle Adjustment: 355° pan / 75° tilt / 355° rotate
Lens
- Lens Options: 2.8mm / 4mm fixed focal
- Aperture: F1.0
- Lens Mount: M16
- Iris: Fixed
- Depth of Field: 3.3m to ∞ (2.8mm) / 3.8m to ∞ (4mm)
Field of View
- 2.8mm: 108.8° H / 56.4° V / 134.3° D
- 4mm: 93.3° H / 47.2° V / 114.2° D
DORI Performance
- 2.8mm: Detect 89m / Observe 35m / Recognise 17m / Identify 8m
- 4mm: Detect 109m / Observe 43m / Recognise 21m / Identify 10m
Lighting
- Type: Smart Hybrid Light White Light + IR
- Range: Up to 30m
- Smart Supplement Light: Yes
- IR Wavelength: 850nm
Video
- Main Stream: Up to 30fps @ 3840 × 2160
- Sub Stream: Up to 30fps
- Third Stream: Supported
- Compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
- Bit Rate: 32 Kbps to 16 Mbps
- Bit Rate Control: CBR / VBR
- ROI: 1 fixed region
- SVC: H.264 / H.265 supported
Audio
- Built-in array dual microphones
- Mono audio
- Noise filtering supported
- Audio input and output terminal support
- Codec Support: G.711 / G.722.1 / G.726 / AAC-LC / MP3 / PCM
AI Analytics
- Face capture
- Line crossing
- Intrusion detection
- Region entry / exit
- Human & vehicle filtering
- Scene change detection
- Smart motion detection
- Video tampering alarm
Network & Storage
- LAN: 1 × RJ45 10/100M
- Storage: microSD up to 512GB
- NAS: NFS / SMB / CIFS
- ANR: Supported
- Protocols: ONVIF Profile S/G/T, ISAPI, SDK, ISUP, IPv4/IPv6, HTTPS, TLS
- Users: Up to 32
- Simultaneous Live View: Up to 6 channels
- Client Software: iVMS-4200 / Hik-Connect / Hik-Central
Image Features
- 130dB WDR
- 3D DNR
- BLC / HLC
- Defog
- Distortion correction
- EIS image stabilisation
- 4 polygon privacy masks
- SNR: ≥ 52dB
Power
- 12VDC: Max 9W
- PoE: IEEE 802.3af Class 3
- PoE Max: 10.5W
Build
- Material: Aluminium alloy base and cover
- Dimensions: Ø121.5 × 97.6mm
- Unit Weight: 600g
- Package Weight: 825g
Protection
- IP67 weatherproof
- IK10 vandal resistant
- NEMA 4X anti-corrosion
- Operating Temperature: -30°C to 60°C
Certifications
- CE
- RCM
- IC
- KC
- UL
- RoHS
- WEEE
- REACH
