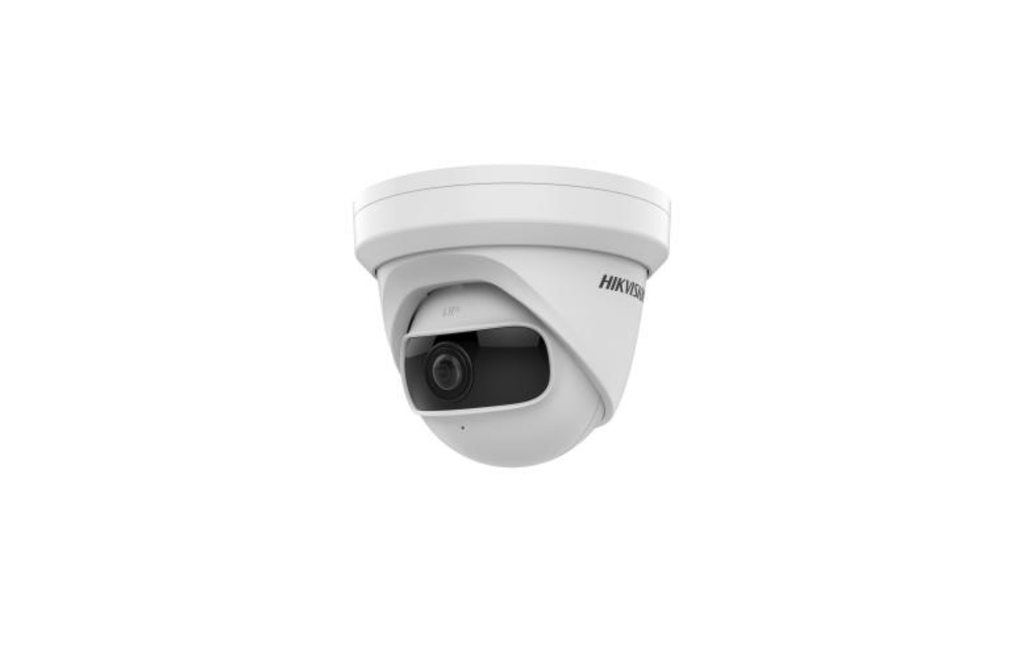

Hikvision DS-2CD2345G0P-I 4MP Super Wide Angle Fixed Turret Network Camera

• High quality imaging with 4 MP resolution
• 180°super wide field of view
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Distortion correction
• Robust structure design with full metal materials


Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS

• Min. Illumination:

  • Color: 0.028 Lux @ (F2.0, AGC ON)

  • B/W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR

• Shutter Speed: 1/3 s to 1/100,000 s

• Slow Shutter: Yes

• Wide Dynamic Range: 120 dB

• Day & Night: IR Cut Filter

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°

Lens

• Lens Type: Fixed lens, 1.68 mm

• Field of View:

  • Horizontal: 180°

  • Vertical: 101°

  • Diagonal: 180°

• Aperture: F2.0

• Lens Mount: M12

Illuminator

• IR Range: Up to 10 m

• Wavelength: 850 nm

Video

• Max. Resolution: 2688 × 1520

• Main Stream:

  • 50Hz: 25fps (2688×1520, 2304×1296, 1920×1080, 1280×720)

  • 60Hz: 24fps (2688×1520), 30fps (2304×1296, 1920×1080, 1280×720)

• Sub Stream:

  • 50Hz: 25fps (640×480, 640×360, 320×240)

  • 60Hz: 30fps (640×480, 640×360, 320×240)

• Video Compression:

  • Main Stream: H.265+/H.264+/H.265/H.264

  • Sub Stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps

• H.264 Type: Baseline / Main / High Profile

• H.265 Type: Main Profile

• Scalable Video Coding (SVC): Supported for H.264 and H.265

• Region of Interest (ROI): 1 fixed region (main, sub, and third streams)

Network

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profile S, Profile G), ISAPI, SDK

• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets

• Users: Up to 32 users (Administrator, Operator, User)

• Security: Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP filter, WSSE & digest authentication, TLS 1.2

• Network Storage: microSD/SDHC/SDXC (up to 256 GB), NAS (NFS, SMB/CIFS), ANR

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser:

  • Plug-in: IE8+

  • Plug-in free: Chrome 57+, Firefox 52+, Safari 11+

  • Local Service: Chrome 41+, Firefox 30+


• Day/Night Switch: Day/Night/Auto/Schedule

• Enhancement: BLC, HLC, 3D DNR

• Adjustments: Saturation, Brightness, Contrast, Sharpness, AGC, White Balance (via software/web browser)

Interface

• On-board Storage: Built-in microSD slot (up to 256 GB)

• Reset: Hardware button, web browser, or client software

• Communication: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Events: Motion detection, video tampering, network disconnection, IP conflict, illegal login, HDD full/error

• Smart Events: Line crossing, intrusion, unattended baggage, object removal, face detection, scene change detection

• Linkage Methods:

  • Trigger recording: memory card, NAS, pre/post-record

  • Image upload: FTP, HTTP, NAS, Email

  • Notification: HTTP, ISAPI, Alarm output, Email

General

• Languages: 32 supported (English, Russian, German, French, Spanish, Chinese, Japanese, etc.)

• Functions: Anti-flicker, triple stream, heartbeat, mirror, privacy mask, email password reset, pixel counter, HTTP listening

• Storage Conditions: –10 °C to 40 °C (humidity ≤95%, non-condensing)

• Operating Conditions: –10 °C to 40 °C (humidity ≤95%, non-condensing)

• Power Supply:

  • 12 VDC ±25% (Φ5.5 mm plug), reverse polarity protection

  • PoE (802.3af, Type 1, Class 3)

• Power Consumption:

  • 12 VDC: 0.48 A, Max 5.8 W

  • PoE: 36–57 V, 0.19–0.12 A, Max 6.8 W

• Dimensions:

  • Camera: Φ127.3 × 104.1 mm (Φ5" × 4.1")

  • With Package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")

• Weight:

  • Camera: 520 g (1.1 lb.)

  • With Package: 700 g (1.5 lb.)

Approvals

• EMC: FCC, CE-EMC, RCM, IC, KC

• Safety: UL, CB, CE-LVD, BIS, LOA

• Environment: CE-RoHS, WEEE, REACH
