Description

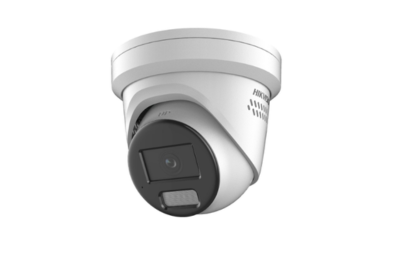

Hikvision DS-2CD2347G2-LSU/SL 2.8mm (C) AcuSeek 4MP ColorVu Active Deterrence Turret Camera
Key Features
- 4MP resolution: 2688 × 1520
- AcuSeek AI technology
- ColorVu 24/7 full-colour imaging
- Human and vehicle classification
- Active strobe light and audible warning
- Built-in two-way audio
- 130 dB WDR
- White light range up to 30 m
- H.265+ compression
- MicroSD card support up to 512 GB
- IP67 weatherproof rating
- PoE support
- Datasheet
Camera
- Image sensor: 1/1.8" Progressive Scan CMOS
- Maximum resolution: 2688 × 1520
- Minimum illumination: Colour 0.0005 Lux @ F1.0, AGC ON
- 0 Lux with white light
- Shutter speed: 1/3 s to 1/100,000 s
- Angle adjustment: Pan 0° to 360°, Tilt 0° to 75°, Rotate 0° to 360°
Lens
- Lens options: 2.8 mm
- Lens mount: M16
- Iris type: Fixed
- Aperture: F1.0
- 2.8 mm FOV: Horizontal 111.9°, Vertical 60.5°, Diagonal 133.6°
- 2.8 mm depth of field: 3.1 m to ∞
DORI
- 2.8 mm: Detect 58.2 m, Observe 23.1 m, Recognise 11.6 m, Identify 5.8 m
Illuminator
- Supplement light type: White light
- Supplement light range: Up to 30 m
- Smart supplement light: Yes
Video
- Main stream: Up to 30 fps at 2688 × 1520, 1920 × 1080, 1280 × 720
- Sub stream: Up to 30 fps at 1280 × 720, 640 × 480, 640 × 360
- Third stream: Up to 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360
- Video compression: H.265, H.264, H.265+, H.264+, MJPEG
- Video bit rate: 32 Kbps to 8 Mbps
- Bit rate control: CBR / VBR
- H.264 profile: Baseline, Main, High
- H.265 profile: Main Profile
- ROI: 1 fixed region for main stream and sub-stream
- Scalable video coding: H.265 and H.264
Audio
- Audio compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
- Audio bit rate: 16 Kbps to 320 Kbps, depending on codec
- Audio sampling rate: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
- Environment noise filtering: Yes
- Built-in microphone: Yes
- Built-in speaker: 1.2 W, 95 dB at 10 cm
- Audio input: 1 line input
- Audio output: 1 line output
- Two-way audio: Yes
- Image parameters switch: Yes
- Image settings: Rotate mode, saturation, brightness, contrast, sharpness, gain and white balance
- Day/night switch: Auto / Schedule
- Wide Dynamic Range: 130 dB
- SNR: ≥ 52 dB
- Image enhancement: BLC, HLC, 3D DNR
Network
- Ethernet interface: 1 × RJ45 10/100 Mbps self-adaptive Ethernet port
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous live view: Up to 6 channels
- API: ONVIF Profile S, Profile G, Profile T, ISAPI, SDK
- Users: Up to 32 users
- User levels: Administrator, operator and user
- Client software: iVMS-4200, Hik-Connect, Hik-Central
- Browser support: IE, Chrome, Firefox and Edge depending on live view mode
Storage
- On-board storage: Built-in microSD/microSDHC/microSDXC card slot
- Maximum card capacity: Up to 512 GB
- Network storage: NAS, NFS, SMB/CIFS
- ANR: Auto network replenishment supported
- Memory card encryption and health detection supported with Hikvision high-end memory card
Interface
- Ethernet: 1 × RJ45 port
- Built-in microphone: Yes
- Built-in speaker: Yes
- Audio input: 1 input, line in
- Audio output: 1 output, line out
- Alarm interface: Not available
- Reset key: Yes
- Memory card slot: Yes
Event & AI Functions
- Basic events: Motion detection with human and vehicle classification, video tampering alarm and exception
- Smart events: Line crossing, intrusion, region entrance and region exiting detection
- Smart event filtering: Supports alarm triggering by specified target types, including human and vehicle
- Scene change detection: Yes
- Face capture: Yes
Linkage
- Upload to NAS
- Upload to memory card
- Upload to FTP
- Notify surveillance centre
- Trigger recording
- Trigger capture
- Send email
- Activate strobe light
- Activate audible warning
- Trigger alarm output
Power
- 12 VDC ±25%
- DC power consumption: Max. 6.5 W
- PoE: IEEE 802.3af, Class 3
- PoE power consumption: Max. 8 W
Dimensions & Weight
- Dimensions: Ø138.3 mm × 115.4 mm
- Package dimensions: 170 mm × 170 mm × 150 mm
- Camera weight: Approx. 760 g
- Package weight: Approx. 1040 g
Operating Conditions
- Operating temperature: -30°C to 60°C
- Storage temperature: -30°C to 60°C
- Humidity: 95% or less, non-condensing
- Protection: IP67 weather resistant
General Functions
- Anti-flicker
- Heartbeat
- Mirror
- Privacy mask
- Flash log
- Password reset via email
- Pixel counter
- 33 language support
Approvals
- EMC: FCC, CE-EMC, RCM, IC, KC
- Safety: UL, CB, CE-LVD, LOA
- Environment: CE-RoHS, WEEE, REACH
- Protection: IP67
