Description

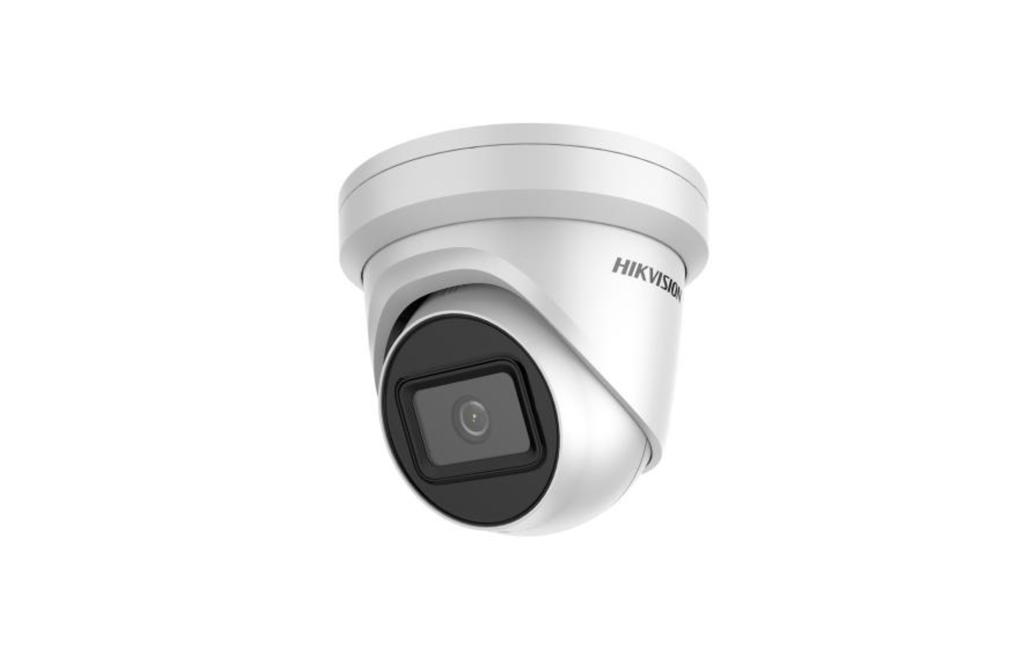

6 MP Powered-by-DarkFighter Fixed Turret Network Camera (4mm)
- High quality imaging with 6 MP resolution
 - Excellent low-light performance via powered-by-DarkFighter technology
 - Efficient H.265+ compression technology
 - Clear imaging against strong back light due to 120 dB true WDR technology
 - Water and dust resistant (IP67)
 - Robust structure design with full metal materials
 - Datasheet

Camera
-
Image Sensor: 1/2.4" Progressive Scan CMOS
 -
Min. Illumination: Color: 0.014 Lux @ (F1.6, AGC ON)
 -
Shutter Speed: 1/3 s to 1/100,000 s
 -
Slow Shutter: Yes
 -
Wide Dynamic Range: 120 dB
 -
Day & Night: IR Cut Filter
 -
Angle Adjustment: Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°

Lens
-
Focus: Fixed
 -
Lens Type: 2.8 / 4 / 6 mm
 -
Field of View:
-
2.8 mm — H: 99°, V: 61°, D: 128°
 -
4 mm — H: 80°, V: 51°, D: 101°
 -
6 mm — H: 60°, V: 38°

 -
 -
Aperture: F2.0
 -
Lens Mount: M12
 -
Aperture Type: Fixed

Illuminator
-
IR Range: Up to 30 m
 -
Wavelength: 850 nm

Video
-
Max. Resolution: 3072 × 2048
 -
Main Stream:
-
50Hz: 20 fps (3072×2048, 3072×1728, 2944×1656), 25 fps (2560×1440, 1920×1080, 1280×720)
 -
60Hz: 20 fps (3072×2048, 3072×1728, 2944×1656), 30 fps (2560×1440, 1920×1080, 1280×720)

 -
 -
Sub Stream:
-
50Hz: 25 fps (640×480, 640×360, 320×240)
 -
60Hz: 30 fps (640×480, 640×360, 320×240)

 -
 -
Third Stream:
-
50Hz: 25 fps (1280×720, 640×360, 352×288)
 -
60Hz: 30 fps (1280×720, 640×360, 352×240)

 -
 -
Video Compression:
-
Main Stream: H.265 / H.264
 -
Sub Stream: H.265 / H.264 / MJPEG
 -
Third Stream: H.265 / H.264

 -
 -
Video Bit Rate: 32 Kbps – 16 Mbps
 -
H.264 Type: Main Profile / High Profile
 -
H.265 Type: Main Profile
 -
H.264+: Supported (main stream)
 -
H.265+: Supported (main stream)
 -
Scalable Video Coding (SVC): H.264 and H.265 encoding supported
 -
Region of Interest (ROI): 1 fixed region for main and sub stream

Network
-
Simultaneous Live View: Up to 6 channels
 -
API: ONVIF (Profile S, G, T), ISAPI, SDK, Ehome
 -
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL/TLS, WebSocket, WebSockets
 -
Users/Host: Up to 32 users (Administrator / Operator / User)
 -
Security: Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP filter, WSSE and digest authentication, TLS1.2
 -
Network Storage: microSD/SDHC/SDXC (up to 128 GB), NAS (NFS, SMB/CIFS), ANR
 -
Client Software: iVMS-4200, Hik-Connect, Hik-Central
 -
Web Browser:
-
Plug-in required: IE8+
 -
Plug-in free: Chrome 57+, Firefox 52+, Safari 11+
 -
Local Service: Chrome 41+, Firefox 30+

 -

-
Day/Night Switch: Day / Night / Auto / Schedule
 -
Target Cropping: Yes
 -
DNR: 3D DNR
 -
Image Enhancement: BLC / 3D DNR / HLC
 -
Adjustable Settings: Rotate mode, Saturation, Brightness, Contrast, Sharpness, AGC, White Balance (via client or browser)

Interface
-
Video Output: No
 -
On-board Storage: Built-in microSD/SDHC/SDXC slot (up to 128 GB)
 -
Hardware Reset: Via reset button, web browser, or client
 -
Communication: 1 RJ45 10M/100M self-adaptive Ethernet port
 -
Interface Style: Pigtail

Event
-
Basic Events: Motion detection, video tampering, network disconnection, IP conflict, illegal login, HDD full/error
 -
Smart Events: Line crossing, intrusion, unattended baggage, object removal, face detection, scene change
 -
Linkage Methods:
-
Recording: Memory card / NAS / pre-post record
 -
Image Upload: FTP, HTTP, NAS, Email
 -
Notification: HTTP, ISAPI, Alarm Output, Email

 -

General
-
Languages: 32 (English, Russian, German, French, Spanish, Chinese, Japanese, etc.)
 -
Functions: One-key reset, anti-flicker, triple stream, heartbeat, mirror, privacy mask, password reset via email, pixel counter, HTTP listening, IP filter, watermark
 -
Storage Conditions: –30 °C ~ 60 °C (–22 °F ~ 140 °F), ≤95% RH (non-condensing)
 -
Operating Conditions: –30 °C ~ 60 °C (–22 °F ~ 140 °F), ≤95% RH (non-condensing)
 -
Power Supply: 12 V DC ± 25% (Φ5.5 mm coaxial plug), reverse polarity protection; PoE (802.3af, Class 3)
 -
Power Consumption:
-
12 V DC: 0.5 A (max 6 W)
 -
PoE: 36–57 V DC, 0.3–0.2 A (max 7.5 W)

 -
 -
Dimensions:
-
Camera: Φ138.3 × 125 mm (5.4″ × 4.9″)
 -
With Package: 170 × 170 × 150 mm (6.7″ × 6.7″ × 5.9″)

 -
 -
Weight:
-
Camera: 730 g (1.6 lb)
 -
With Package: 1050 g (2.3 lb)

 -

Approvals
-
EMC: 47 CFR Part 15 Subpart B; EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; AS/NZS CISPR 32:2015; ICES-003 Issue 6 (2016); KN 32:2015; KN 35:2015
 -
Safety: UL 60950-1; IEC 60950-1:2005 + Am 1:2009 + Am 2:2013; EN 60950-1:2005 + Am 1:2009 + Am 2:2013; IS 13252 (Part 1):2010 + A1:2013 + A2:2015
 -
Environment: 2011/65/EU (RoHS), 2012/19/EU (WEEE), Regulation (EC) No 1907/2006 (REACH)
 -
Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
