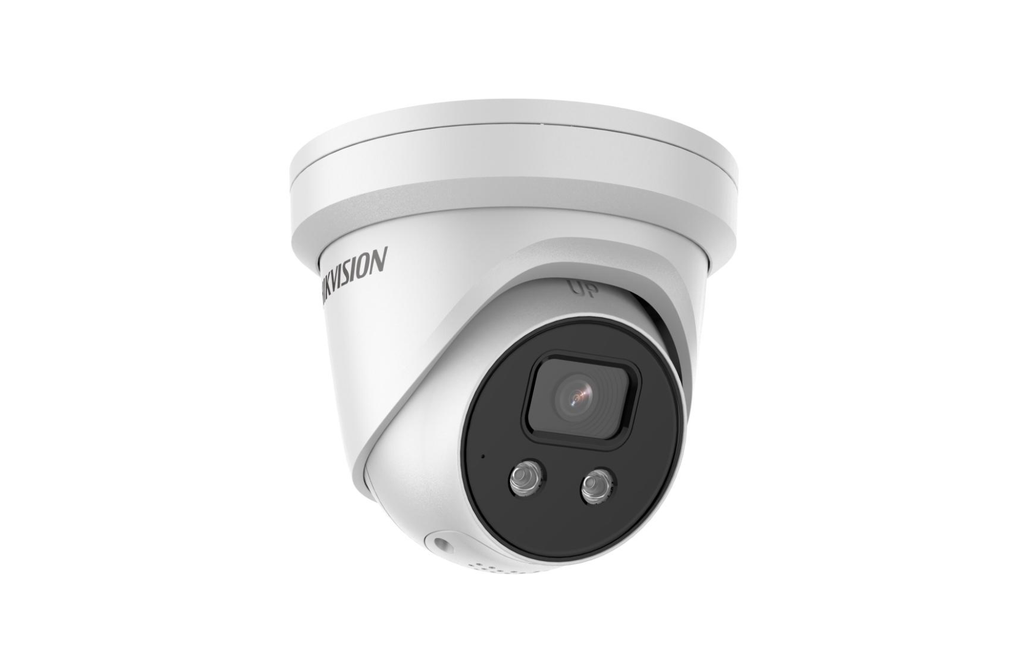

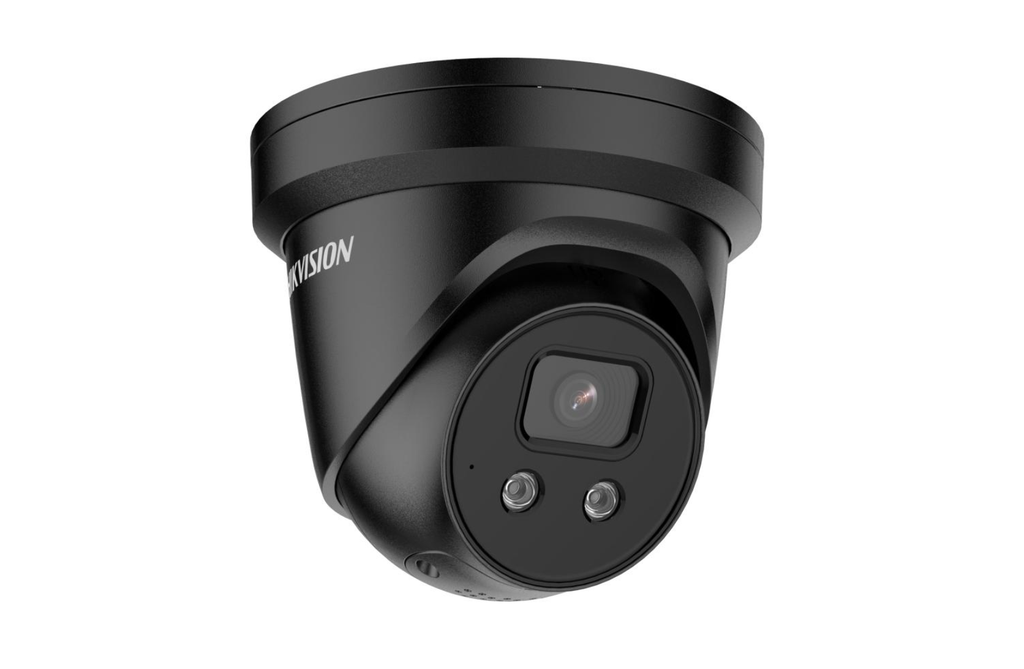

Hikvision DS-2CD2366G2-ISU/SL 6MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Datasheet

Camera

• Image Sensor: 1/2.4" Progressive Scan CMOS

• Max. Resolution: 3200 × 1800

• Min. Illumination:

  • Color: 0.003 Lux @ (F1.6, AGC ON)

  • B/W: 0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s

• Day & Night: IR Cut Filter

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°

Lens

• Lens Type: Fixed lens, 2.8 / 4 / 6 mm optional

• Focal Length & Field of View:

  • 2.8 mm: H: 105°, V: 55°, D: 127°

  • 4 mm: H: 78°, V: 38°, D: 96°

  • 6 mm: H: 51°, V: 26°, D: 59°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.6

DORI Distance

• 2.8 mm: Detect 76 m | Observe 30 m | Recognize 15 m | Identify 7 m

• 4 mm: Detect 115 m | Observe 45 m | Recognize 23 m | Identify 11 m

• 6 mm: Detect 164 m | Observe 65 m | Recognize 32 m | Identify 16 m

Illuminator

• Supplement Light Type: IR

• Range: Up to 30 m

• Smart Supplement Light: Yes

• IR Wavelength: 850 nm

Video

• Main Stream:

  • 50Hz: 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)

  • 60Hz: 30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)

• Sub Stream:

  • 50Hz: 25 fps (1280×720, 640×480, 640×360)

  • 60Hz: 30 fps (1280×720, 640×480, 640×360)

• Third Stream:

  • 50Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)

  • 60Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)
    Third stream supported under certain settings.

• Video Compression:

  • Main Stream: H.265+/H.265/H.264+/H.264

  • Sub Stream: H.265/H.264/MJPEG

  • Third Stream: H.265/H.264

• Bit Rate: 32 Kbps – 16 Mbps

• H.264 Type: Baseline / Main / High Profile

• H.265 Type: Main Profile

• Bit Rate Control: CBR / VBR

• Scalable Video Coding (SVC): Supported for H.264 & H.265

• Region of Interest (ROI): 1 fixed region (main & sub-stream)

Audio

• Audio Type: Mono

• Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

• Bit Rate:

  • 64 Kbps (G.711)

  • 16 Kbps (G.722.1 / G.726)

  • 32–192 Kbps (MP2L2)

  • 8–320 Kbps (MP3)

  • 16–64 Kbps (AAC-LC)

• Sampling Rate: 8 / 16 / 32 / 44.1 / 48 kHz

• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, SRTP, SFTP

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (Profile S/G/T), ISAPI, SDK, ISUP

• Users: Up to 32 (Administrator / Operator / User)

• Security: Password protection, HTTPS encryption, 802.1X (EAP-TLS, LEAP, MD5), watermark, IP filter, WSSE/digest authentication, RTP/RTSP over HTTPS, audit logs, TLS 1.1/1.2/1.3, MAC authentication

• Network Storage: NAS (NFS/SMB/CIFS), ANR, memory card encryption & health detection (with Hikvision card)

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser:

  • Plug-in: IE10 / IE11

  • Plug-in free: Chrome 57+, Firefox 52+, Edge 89+


• Image Parameter Switch: Yes

• Adjustable Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance

• Day/Night Switch: Day / Night / Auto / Schedule

• WDR: 120 dB

• SNR: ≥ 52 dB

• Image Enhancement: BLC / HLC / 3D DNR

• Privacy Mask: 4 programmable polygon masks

Interface

• Ethernet: 1 RJ45 10M/100M self-adaptive port

• On-Board Storage: microSD/SDHC/SDXC (up to 512 GB)

• Built-in Microphone: Yes

• Built-in Speaker: Max 1.2 W, 95 dB @10 cm

• Audio I/O:

  • 1 Input (line in), max amplitude 3.3 Vpp, impedance 4.7 KΩ

  • 1 Output (line out), max amplitude 3.3 Vpp, impedance 100 Ω

• Alarm I/O: 1 input, 1 output (max 24 VDC/24 VAC, 500 mA)

• Reset Key: Yes

Event

• Basic Events: Motion detection (human/vehicle filter), video tampering, exception, alarm I/O

• Smart Events: Line crossing, intrusion, region entrance/exit, scene change (with human/vehicle filter)

• Linkage: FTP/NAS/memory upload, center notification, email, recording, snapshot, alarm output, audible warning, strobe light

Deep Learning

• Face Capture: Supported

General

• Power:

  • 12 VDC ±25%, 0.7 A (max 8.4 W), Ø5.5 mm coaxial plug, reverse polarity protection

  • PoE: IEEE 802.3af Class 3, max 9.7 W

• Material: Metal (except trim ring)

• Dimensions: Ø138.3 × 112.1 mm (Ø5.5" × 4.4")

• Package Dimensions: 170 × 170 × 150 mm (6.7" × 6.7" × 5.9")

• Weight: 820 g (1.8 lb); With Package: 1150 g (2.5 lb)

• Storage Conditions: –30 °C to 60 °C (–22 °F to 140 °F), ≤95% RH (non-condensing)

• Operating Conditions: –30 °C to 60 °C (–22 °F to 140 °F), ≤95% RH (non-condensing)

• Languages: 33 supported (English, Russian, German, French, Spanish, Chinese, Japanese, etc.)

• Functions: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker

Approvals

• EMC:
  FCC (47 CFR Part 15 Subpart B); CE-EMC (EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014);
  RCM (AS/NZS CISPR 32:2015); IC (ICES-003 Issue 7); KC (KN32:2015, KN35:2015)

• Safety:
  UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017)

• Environment:
  CE-RoHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

• Protection:
  IP67 (IEC 60529:2013)
