Description
Key Features

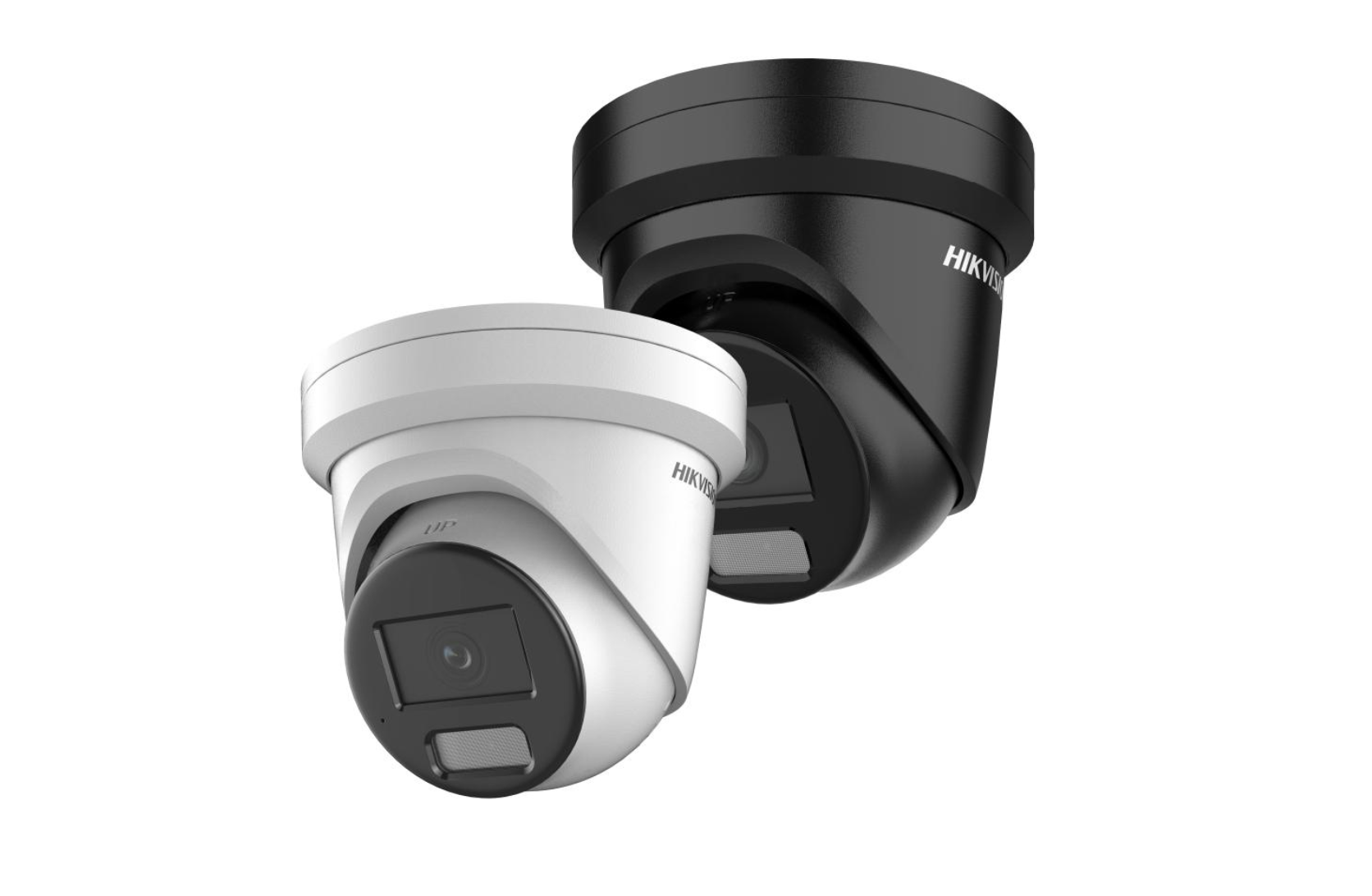

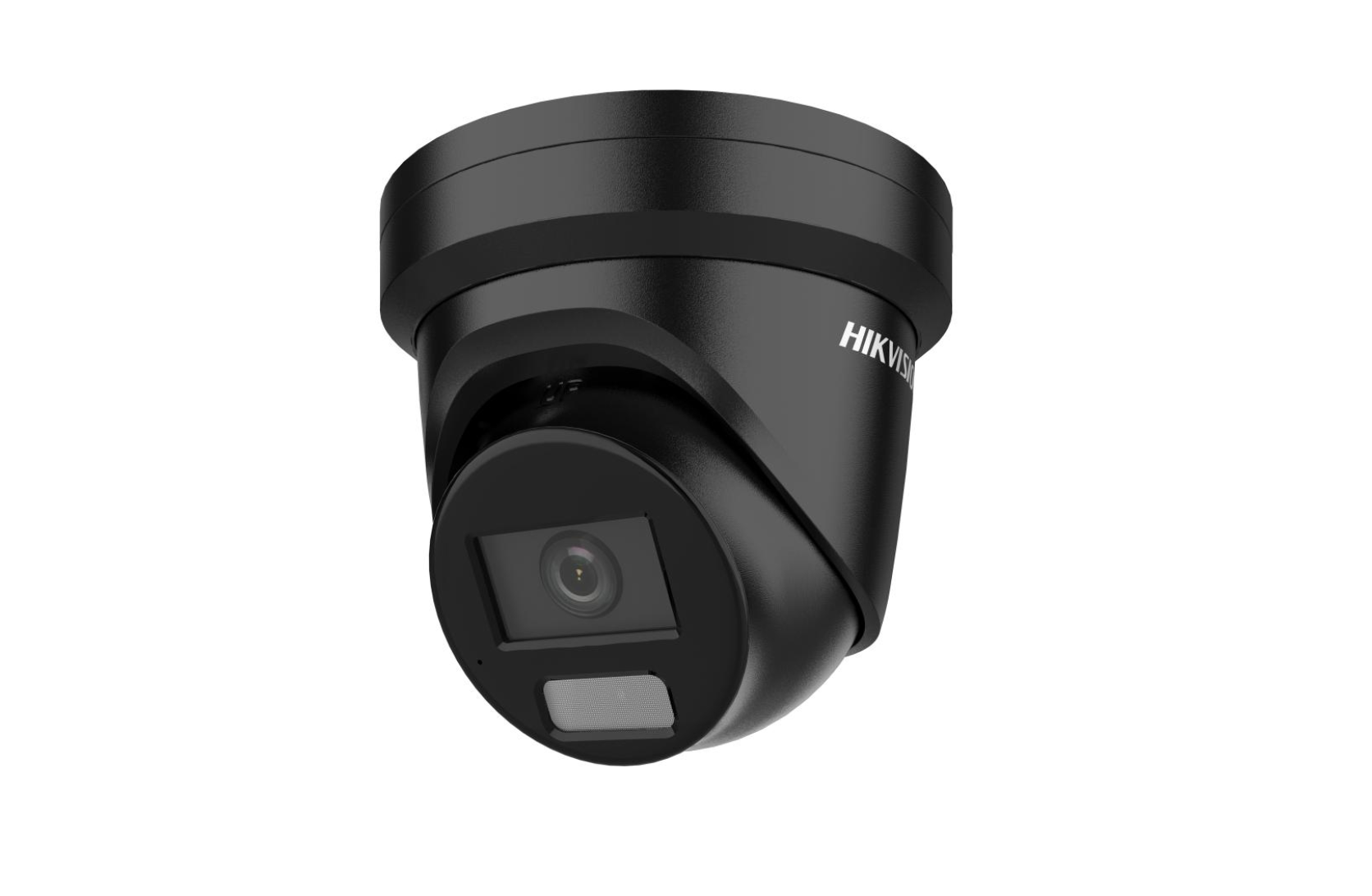

- 6 MP Powered-by-DarkFighter fixed turret network camera
- High quality imaging with 3200 × 1800 resolution
- Excellent low-light performance with F1.0 aperture and DarkFighter technology
- 120 dB True WDR for challenging lighting conditions
- Efficient H.265+ compression technology
- Human and vehicle classification based on deep learning
- Built-in microphone for real-time audio security (-U model)
- IR night vision up to 30 m
- Supports MicroSD storage up to 512 GB
- IP67 weatherproof metal housing
- Datasheet
Camera
Image Sensor: 1/2.4" Progressive Scan CMOS
Max Resolution: 3200 × 1800
Minimum Illumination:
- Colour: 0.001 Lux @ F1.0 (AGC ON)
- B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR Cut Filter
Angle Adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotate: 0° to 360°
Lens
Lens Type: Fixed Focal Lens
Lens Options:
- 2.8 mm
Aperture: F1.0
Lens Mount: M12
Iris Type: Fixed
Depth of Field:
- 2.8 mm: 1.7 m to ∞
Field of View
2.8 mm:
- Horizontal: 114.8°
- Vertical: 60°
- Diagonal: 143.5°
DORI
2.8 mm:
- Detect: 64 m
- Observe: 25 m
- Recognise: 12 m
- Identify: 6 m
Lighting
Supplement Light Type: IR
IR Range: Up to 30 m
IR Wavelength: 850 nm
Smart Supplement Light: Yes
Video
Maximum Resolution: 3200 × 1800
Main Stream:
- 25 fps @ 3200 × 1800 (50 Hz)
- 24 fps @ 3200 × 1800 (60 Hz)
- 30 fps @ 2688 × 1520, 1920 × 1080, 1280 × 720
Sub Stream:
- Up to 30 fps @ 1280 × 720, 640 × 480, 640 × 360
Third Stream:
- Up to 10 fps @ 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360
Video Compression:
- H.265
- H.265+
- H.264
- H.264+
- MJPEG (Sub-stream)
Video Bit Rate: 32 Kbps to 16 Mbps
Bit Rate Control: CBR / VBR
H.264 Profile:
- Baseline
- Main
- High
H.265 Profile: Main
ROI: 1 Fixed Region for Main Stream and Sub Stream
Scalable Video Coding (SVC): H.264 and H.265
Audio
Built-in Microphone:
- U Model: Yes
Audio Compression:
- G.711
- G.722.1
- G.726
- MP2L2
- PCM
- MP3
- AAC-LC
Audio Sampling Rates:
- 8 kHz
- 16 kHz
- 32 kHz
- 48 kHz
Environment Noise Filtering:
- U Model: Yes
AI Analytics
Human & Vehicle Classification: Yes
Face Capture: Yes
Perimeter Protection:
- Line Crossing Detection
- Intrusion Detection
- Region Entrance Detection
- Region Exiting Detection
Scene Change Detection: Yes
Motion Detection:
- Human Classification
- Vehicle Classification
Network & Storage
Ethernet: 1 × RJ45 10/100 Mbps
Simultaneous Live View: Up to 6 Channels
API Support:
- ONVIF Profile S/G/T
- ISAPI
- SDK
- ISUP
Protocols:
- TCP/IP
- HTTP / HTTPS
- FTP
- DHCP
- DNS
- DDNS
- RTP / RTSP / RTCP
- NTP
- SMTP
- SNMP
- IPv4 / IPv6
- SSL/TLS
- SRTP
- SFTP
- WebSocket
User Access:
- Up to 32 Users
- Administrator
- Operator
- User
On-Board Storage:
- MicroSD / SDHC / SDXC
- Up to 512 GB
NAS Support:
- NFS
- SMB/CIFS
ANR (Automatic Network Replenishment): Yes
Supported Clients:
- Hik-Connect
- iVMS-4200
- Hik-Central
Image Features
WDR: 120 dB
SNR: ≥ 52 dB
Image Enhancement:
- BLC
- HLC
- 3D DNR
Day/Night Modes:
- Day
- Night
- Auto
- Schedule
Image Settings:
- Brightness
- Contrast
- Saturation
- Sharpness
- Gain
- White Balance
- Rotate Mode
Privacy Masks:
- 4 Programmable Polygon Masks
Interface
Ethernet:
- 1 × RJ45 10/100 Mbps
On-Board Storage:
- MicroSD Slot up to 512 GB
Built-in Microphone:
- U Model: Yes
Reset Key:
- Yes
Event Actions
Linkage Actions:
- Trigger Recording
- Trigger Snapshot
- Send Email
- Upload to FTP
- Upload to NAS
- Upload to SD Card
- Notify Surveillance Centre
Power
Power Supply:
- 12 VDC ±25%
- PoE IEEE 802.3af Class 3
Power Consumption:
- 12 VDC: Max. 6.5 W
- PoE: Max. 8 W
Power Connector:
- Ø5.5 mm DC Jack
Reverse Polarity Protection: Yes
Build
Housing Material:
- Cover: Metal
- Main Body: Metal
Dimensions:
- Ø138.3 mm × 115.4 mm
Weight:
- Approx. 770 g
Protection
Weather Rating: IP67
Operating Temperature:
-30°C to 60°C
Storage Temperature:
-30°C to 60°C
Humidity:
95% or less (non-condensing)
Certifications
EMC:
- CE-EMC
- RCM
- IC
- KC
Safety:
- CB
- CE-LVD
- LOA
Environmental:
- RoHS
- WEEE
- REACH
