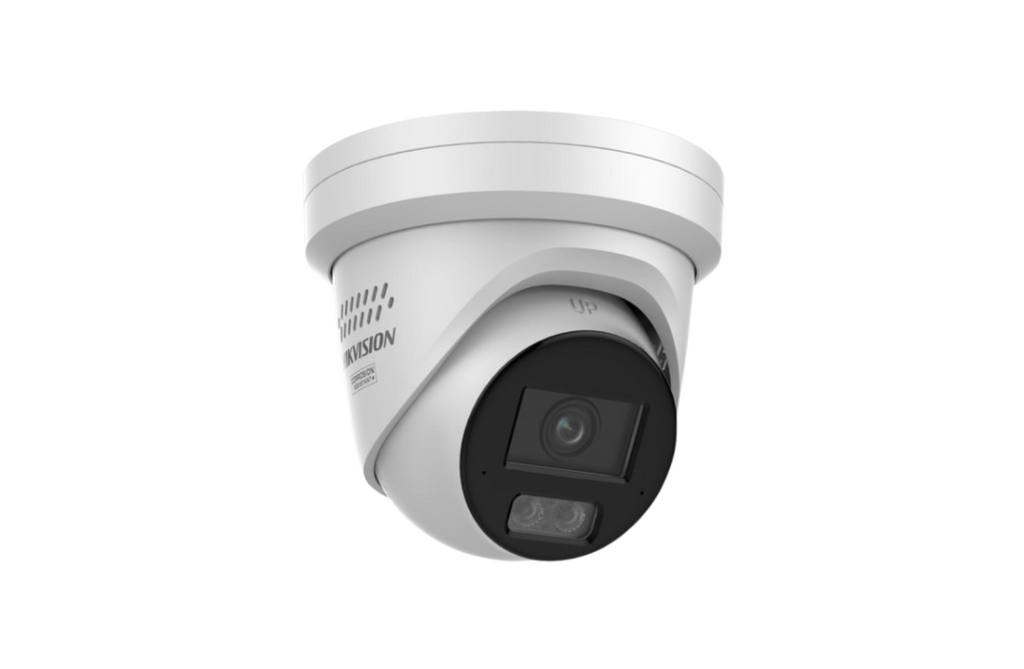

Hikvision DS-2CD2367G3-LIS2UY/SL 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

• 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
• HikAI-ISP for excellent noise reduction effect
• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Water and dust resistant (IP67)
• Audio and alarm interface available
• Active strobe light and audio alarm to warn intruders off
• Datasheet

Camera

• Uses a 1/1.8" Progressive Scan CMOS sensor

• Maximum resolution: 3200 × 1800

• Works in very low light: 0.0005 Lux (F1.0, AGC ON), or 0 Lux with its built-in light

• Shutter speed ranges from 1 second to 1/100,000 second

• Day & night function with IR cut filter

• Adjustable angles: Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360°

Lens

• Fixed lens options: 2.8 mm or 4 mm

• Field of View:

  • 2.8 mm: 108.8° (H), 56.4° (V), 134.3° (D)

  • 4 mm: 93.3° (H), 47.2° (V), 114.2° (D)

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm: 3.3 m to infinity

  • 4 mm: 3.8 m to infinity

• DORI distances:

  • 2.8 mm: Detect 89 m, Observe 35 m, Recognize 17 m, Identify 8 m

  • 4 mm: Detect 109 m, Observe 43 m, Recognize 21 m, Identify 10 m

Illuminator

• Light types: White light + IR

• Range: Up to 30 m

• Smart light adjustment supported

• IR wavelength: 850 nm

Video

• Main stream:

  • 50 Hz: 25 fps @ 3200×1800, 2688×1520, 1920×1080, 1280×720

  • 60 Hz: 30 fps @ same resolutions

• Sub-stream:

  • 50 Hz: 25 fps @ 1280×720, 640×480, 640×360

  • 60 Hz: 30 fps @ same resolutions

• Third stream (limited settings): up to 10 fps

• Compression: H.265, H.264, H.264+, H.265+, MJPEG

• Bitrate: 32 Kbps to 16 Mbps

• Supports CBR/VBR, ROI, and scalable video coding

Audio

• Built-in microphone and speaker

• Mono audio with compression formats: G.711, G.722.1, G.726, MP2L2, MP3, AAC-LC, PCM

• Noise filtering supported

Network

• Supports most protocols: TCP/IP, HTTP/HTTPS, RTSP, RTP, NTP, SMTP, SNMP, IPv4/IPv6, etc.

• Up to 6 live views simultaneously

• ONVIF, ISAPI, SDK, ISUP compatible

• Supports 32 users (admin, operator, user levels)

• Strong security: HTTPS, TLS 1.1/1.2/1.3, 802.1X, IP filtering, watermark, etc.

• Network storage: NAS, ANR

• Works with iVMS-4200, Hik-Connect, Hik-Central

Image Features

• Adjustable: rotate, brightness, contrast, saturation, sharpness, white balance

• Day/Night modes: Auto, Schedule, Manual

• Enhancements: BLC, HLC, 3D DNR, Defog, Distortion Correction, EIS

• WDR: 130 dB

• Privacy masks: 4 programmable zones

Interfaces

• 1 × RJ45 Ethernet (10/100M)

• Supports microSD up to 512 GB

• Audio I/O (line in/out), Alarm I/O (1 input, 1 output)

• Reset button

Events & Smart Functions

• Motion detection, tamper alarm, exceptions

• Smart: scene change detection

• Deep Learning:

  • Face capture

  • Perimeter protection (line crossing, intrusion, region entry/exit)

  • Human/vehicle classification

• Event actions: upload to FTP/NAS/SD card, send email, trigger alarms, flashing light, sound

General

• Power: 12V DC (15.5W) or PoE (17W, Class 4)

• Material: Metal housing

• Size: Ø138.3 × 115.4 mm

• Weight: 820 g (camera), 1.2 kg (with packaging)

• Operating conditions: -30 °C to 60 °C, up to 95% humidity

• Protection: IP67, NEMA 4X anti-corrosion

• Certifications: CE, RCM, IC, KC, UL, CB, RoHS
