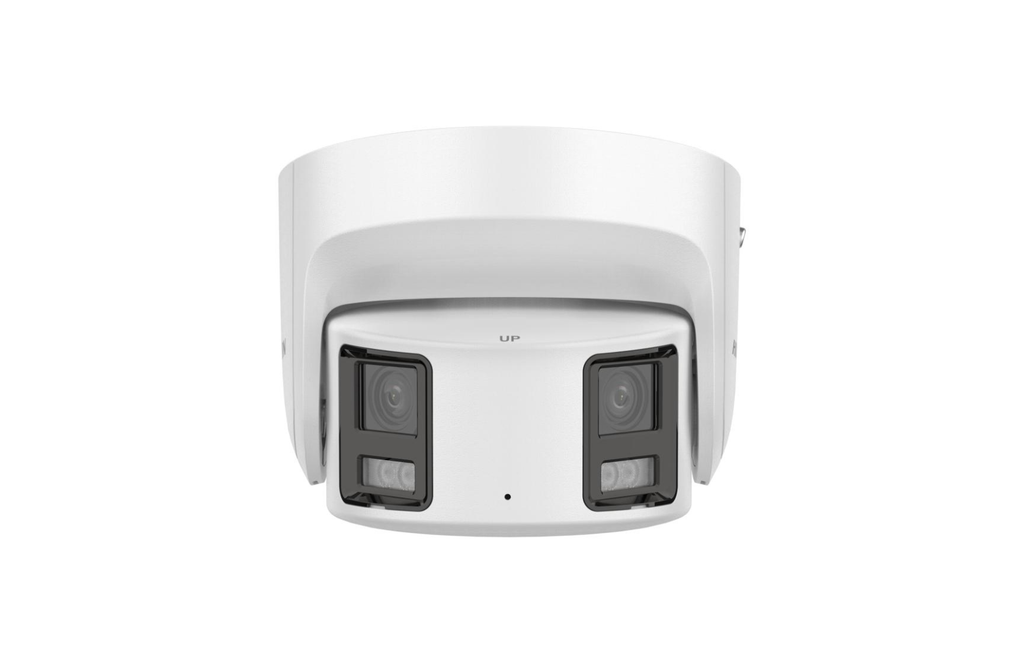

Hikvision DS-2CD2387G2P-LSU/SL (4mm) 8 MP Panoramic ColorVu Fixed Turret Network Camera 4mm

8MP Panoramic ColorVu Fixed Turret Network Camera

Key Features

• 8MP panoramic resolution
• Dual 4mm lenses with 180° horizontal field of view
• One stitched image covering the full scene
• 24/7 full-colour imaging with ColorVu
• 130dB WDR for strong backlight handling
• Human and vehicle classification with deep learning
• Active strobe light and audio alarm
• White light illumination up to 30m
• Built-in microphone and speaker
• Audio input and output support
• Alarm input and output support
• microSD storage up to 512GB
• H.265+ compression
• IP67 weatherproof
• Full metal turret housing

Camera

• Resolution: 5120 × 1440
• Imaging: 8MP panoramic output
• Day/Night: Day / Night / Auto / Schedule
• 24/7 Colour Imaging: Yes
• Wide Dynamic Range: 130dB
• Minimum Illumination: Not specified in provided data

Lens

• Lens Type: Fixed focal dual lens
• Lens Size: Dual 4mm
• Aperture: F1.0
• Lens Mount: M16
• Iris: Fixed
• Depth of Field: 3.6m to ∞

Field of View

• Horizontal FOV: 180°
• Vertical FOV: 44°

DORI Performance

• 4mm: Detect 77m / Observe 30m / Recognise 15m / Identify 7m

Lighting

• Type: White Light
• Range: Up to 30m
• Smart Supplement Light: Yes

Video

• Main Stream with WDR On: Up to 15fps @ 5120 × 1440
• Main Stream with WDR Off: Up to 20fps @ 5120 × 1440
• Sub Stream with WDR On: Up to 15fps
• Sub Stream with WDR Off: Up to 20fps
• Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR / VBR
• ROI: 1 fixed region
• SVC: H.264 / H.265 supported

Audio

• Built-in microphone
• Built-in speaker (up to 95dB)
• Mono audio
• Noise filtering supported
• Audio input and output terminals
• Codec Support: G.711 / G.722.1 / G.726 / AAC-LC / MP3 / PCM / MP2L2

AI Analytics

• Human and vehicle classification
• Line crossing
• Intrusion detection
• Region entry / exit
• Scene change detection
• Motion detection
• Alarm light output
• Audible alarm output

Network & Storage

• LAN: 1 × RJ45 10/100M
• Storage: microSD up to 512GB
• Network Storage: NAS / ANR / NVR
• Protocols: ONVIF Profile S/G/T, ISAPI, SDK, ISUP, IPv4/IPv6, HTTPS, TLS
• Users: Up to 32
• Simultaneous Live View: Up to 6 channels
• Client Software: iVMS-4200 / Hik-Connect / Hik-Central

Image Features

• 130dB WDR
• 3D DNR
• BLC / HLC
• 8 rectangular privacy masks
• SNR: ≥ 52dB
• Image Settings: saturation, brightness, contrast, sharpness, gain, white balance

Interfaces

• Audio In: 1
• Audio Out: 1
• Alarm In: 1
• Alarm Out: 1
• Reset Button: Yes

Power

• 12VDC: Max 10.5W
• PoE: IEEE 802.3af Class 3
• PoE Max: 12.5W

Build

• Material: Metal base and cover
• Dimensions: Ø155 × 155.3mm
• Unit Weight: 1110g
• Package Weight: 1900g

Protection

• IP67 weatherproof
• Operating Temperature: -30°C to 60°C

Certifications

• FCC
• CE
• RCM
• IC
• UL
• CB
• RoHS
• WEEE
• REACH
