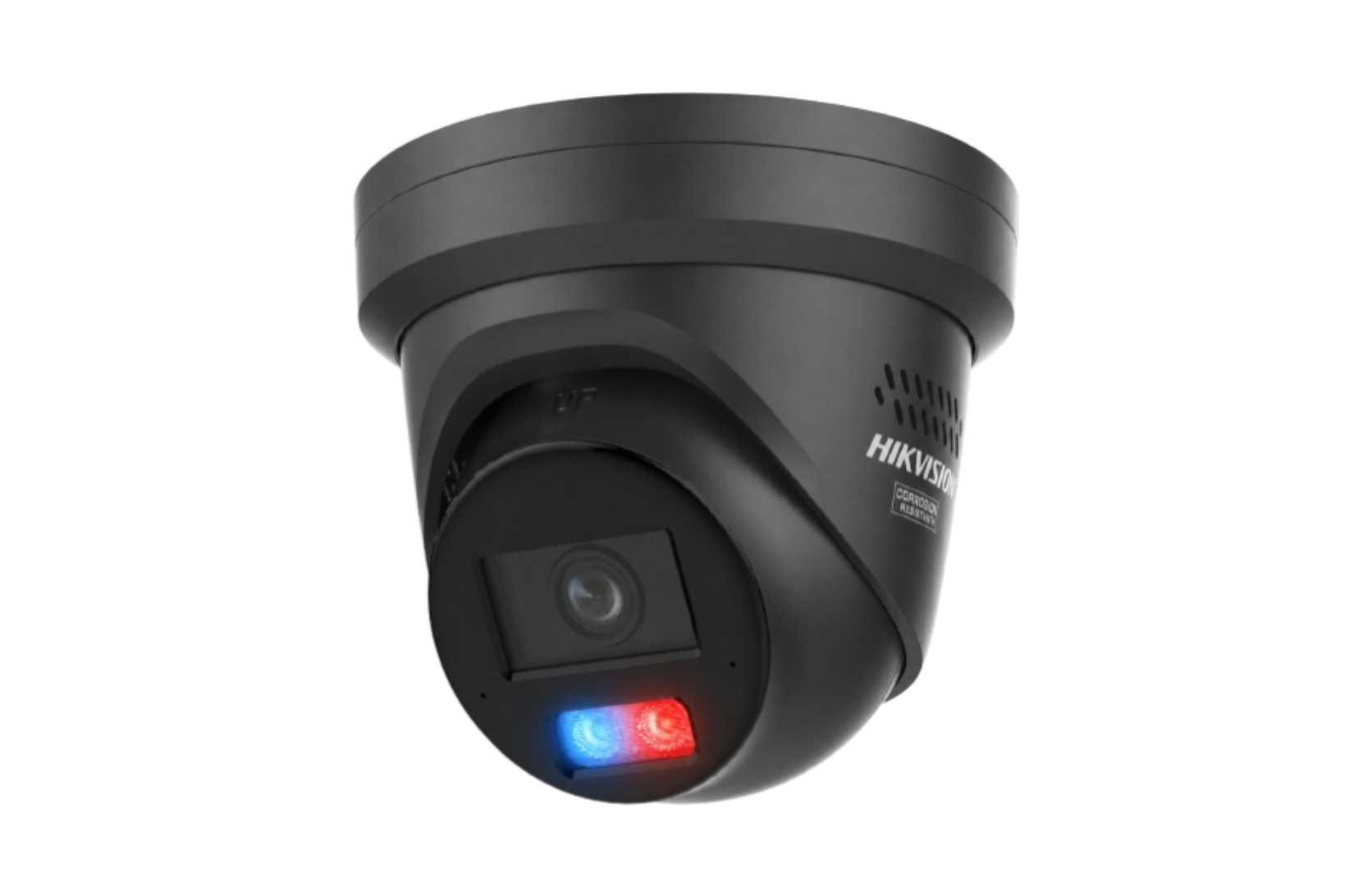

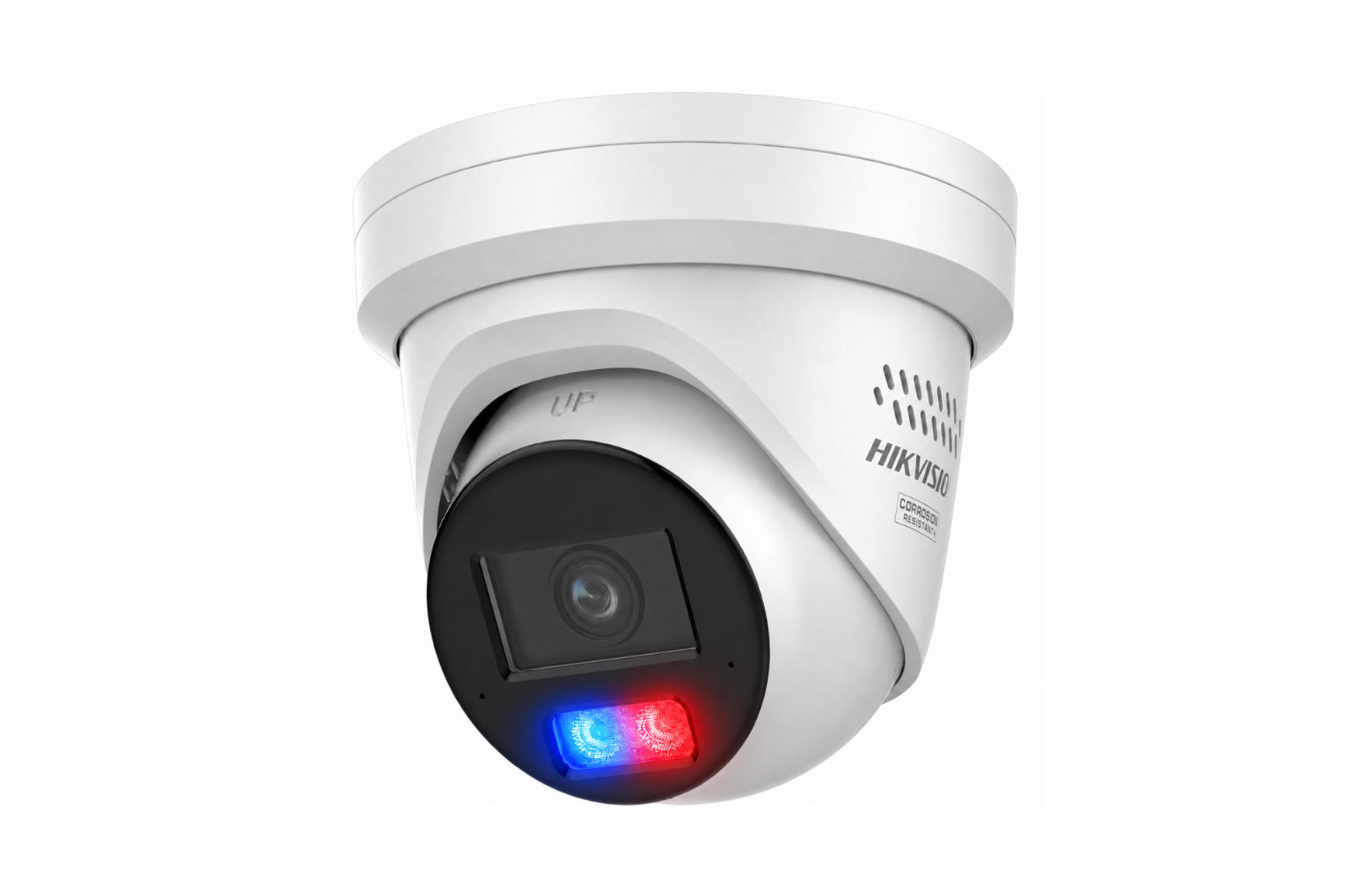

Hikvision DS-2CD2387G3-LIS2UY/SRB 8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera Red Blue Strobe

Key Features

• 8MP (3840 × 2160) ultra-high resolution
• HikAI-ISP for superior noise reduction and image enhancement
• 24/7 full-colour imaging with ColorVu technology
• Scene-adaptive 130 dB WDR for challenging lighting conditions
• Deep learning Person & Vehicle classification
• Built-in arrayed dual microphones for high-quality audio capture
• Two-way audio with built-in speaker
• Smart Hybrid Light with IR + White Light and 3 illumination modes
• Active strobe light and audio warning to deter intruders
• Face Capture and Perimeter Protection analytics
• Audio and Alarm I/O interfaces
• Anti-corrosion NEMA 4X design for harsh environments
• Supports microSD cards up to 512GB
• IP67 weatherproof protection
• PoE (802.3at) support
• Datasheet

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Maximum Resolution: 3840 × 2160 (8MP)
• Minimum Illumination: 0.0005 Lux @ F1.0
• Day/Night: IR Cut Filter
• WDR: 130 dB

Lens

• Lens Options: 2.8mm or 4mm
• Aperture: F1.0
• Fixed focal lens

Field of View

2.8mm

• Horizontal: 108.8°
• Vertical: 56.4°
• Diagonal: 134.3°

4mm

• Horizontal: 93.3°
• Vertical: 47.2°
• Diagonal: 114.2°

DORI Distance

2.8mm

• Detect: 89m
• Observe: 35m
• Recognise: 17m
• Identify: 8m

4mm

• Detect: 109m
• Observe: 43m
• Recognise: 21m
• Identify: 10m

Lighting

• Smart Hybrid Light
• IR & White Light
• Illumination Range: Up to 30m
• 850nm IR
• Three supplemental lighting modes

Video

• Main Stream: Up to 8MP @ 25/30fps
• Compression: H.265+, H.265, H.264+, H.264
• Triple Stream Support
• ROI Support
• Bit Rate: 32 Kbps to 16 Mbps

Audio

• Built-in Arrayed Dual Microphones
• Built-in Speaker
• Two-Way Audio
• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Environment Noise Filtering

AI Analytics

• Face Capture
• Line Crossing Detection
• Intrusion Detection
• Region Entrance Detection
• Region Exiting Detection
• Human & Vehicle Classification
• Scene Change Detection

Network & Storage

• RJ45 10/100Mbps Ethernet Port
• Supports ONVIF Profile S, G & T
• NAS Storage (NFS, SMB/CIFS)
• ANR Support
• MicroSD Card Support up to 512GB
• Supports Hik-Connect, iVMS-4200 and HikCentral

Image Features

• 130 dB WDR
• BLC
• HLC
• 3D DNR
• Defog
• Distortion Correction
• EIS Image Stabilisation
• Privacy Masking

Alarm & Interfaces

• 1 Alarm Input
• 1 Alarm Output
• 1 Audio Input
• 1 Audio Output
• Reset Button

Power

• 12VDC ±25%
• PoE IEEE 802.3at Class 4
• Max Power Consumption: 17W

Build

• Metal Housing
• Dimensions: Ø138.3 × 115.4mm
• Weight: Approx. 820g

Protection

• IP67 Weatherproof
• NEMA 4X Anti-Corrosion Protection

Active Deterrence

• Built-in Strobe Light
• Built-in Audio Warning
• Real-time audible and visual alerts to deter intruders

Certifications

• CE
• RCM
• UL
• RoHS
• IP67
• NEMA 4X
