Description

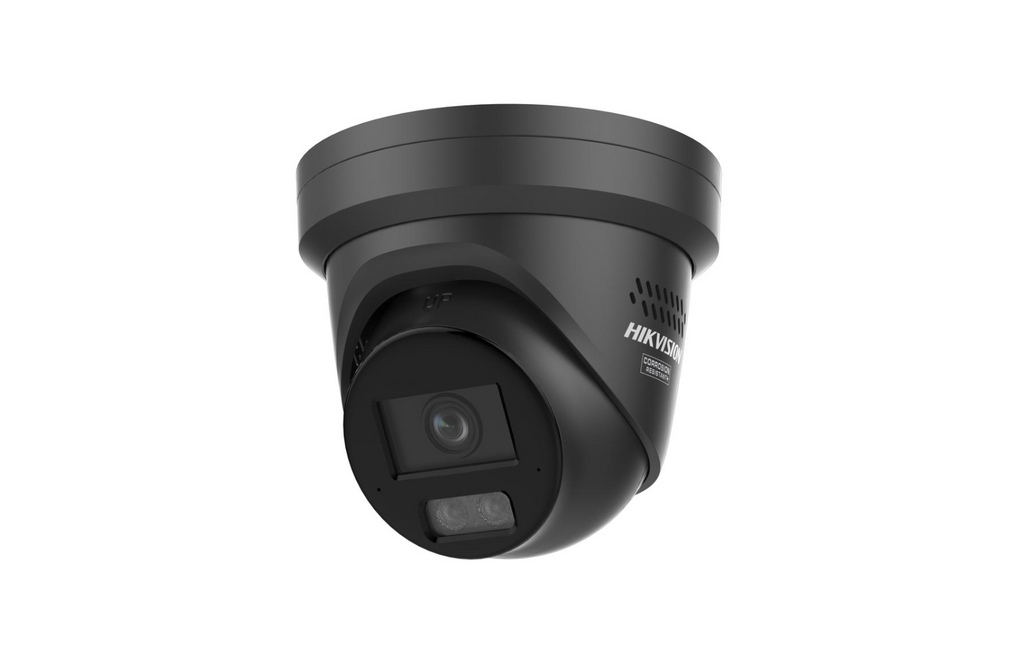

8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera
- HikAI-ISP for excellent noise reduction effect
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- Built-in arrayed dual-microphone for real-time high quality audio security
- Provide real-time security via built-in two-way audio
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
- Water and dust resistant (IP67)
- Audio and alarm interface available
- Active strobe light and audio alarm to warn intruders off
- Datasheet
Camera
-
Sensor: 1/1.8" Progressive Scan CMOS
-
Maximum resolution: 3840 × 2160 (4K Ultra HD)
-
Low-light performance: 0.0005 Lux (F1.0, AGC ON) or 0 Lux with light
-
Shutter speed: 1 s to 1/100,000 s
-
Day & Night function: IR cut filter
-
Angle adjustment: Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360°
Lens
-
Fixed focal lens options: 2.8 mm or 4 mm
-
Field of view:
-
2.8 mm: 108.8° (H), 56.4° (V), 134.3° (D)
-
4 mm: 93.3° (H), 47.2° (V), 114.2° (D)
-
-
Aperture: F1.0
-
Depth of field:
-
2.8 mm: 3.3 m to infinity
-
4 mm: 3.8 m to infinity
-
-
DORI (Detect, Observe, Recognize, Identify) distances:
-
2.8 mm: D 89 m, O 35 m, R 17 m, I 8 m
-
4 mm: D 109 m, O 43 m, R 21 m, I 10 m
-
Illuminator
-
Light type: White light + IR
-
Range: Up to 30 m
-
Smart light adjustment supported
-
IR wavelength: 850 nm
Video
-
Main stream:
-
50 Hz: 25 fps @ 3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720
-
60 Hz: 30 fps @ same resolutions
-
-
Sub-stream:
-
50 Hz: 25 fps @ 1280×720, 640×480, 640×360
-
60 Hz: 30 fps @ same resolutions
-
-
Third stream (optional): up to 10 fps
-
Compression: H.265, H.264, H.264+, H.265+, MJPEG
-
Bitrate: 32 Kbps to 16 Mbps
-
Supports CBR/VBR, ROI, and scalable video coding
Audio
-
Built-in microphone and speaker
-
Mono sound with compression support: G.711, G.722.1, G.726, MP2L2, MP3, AAC-LC, PCM
-
Noise filtering supported
Network
-
Protocols supported: TCP/IP, HTTP/HTTPS, RTP/RTSP, NTP, SMTP, SNMP, IPv4/IPv6, SSL/TLS, etc.
-
Live view: up to 6 channels
-
API support: ONVIF (S, G, T), ISAPI, SDK, ISUP
-
Up to 32 users (admin, operator, user levels)
-
Security: HTTPS, TLS 1.1/1.2/1.3, 802.1X, password protection, IP filtering, watermarking
-
Network storage: NAS, ANR
-
Clients: iVMS-4200, Hik-Connect, Hik-Central
-
Browser support: Chrome 80+, Firefox 80+, Edge 89+
Image Features
-
Adjustable: brightness, contrast, sharpness, saturation, white balance, rotation
-
Modes: Day, Night, Auto, Schedule
-
Enhancements: BLC, HLC, 3D DNR, Defog, Distortion Correction, EIS
-
WDR: 130 dB
-
Privacy masks: 4 programmable areas
Interfaces
-
1 × RJ45 Ethernet (10/100M)
-
MicroSD storage: up to 512 GB
-
Audio I/O: Line in/out supported
-
Alarm I/O: 1 input, 1 output
-
Reset button included
Events & Smart Functions
-
Basic: Motion detection, tamper alarm, exception alerts
-
Smart: Scene change detection
-
Deep learning functions:
-
Face capture
-
Perimeter protection (line crossing, intrusion, region entry/exit) with human/vehicle classification
-
-
Alarm linkage: upload to FTP/NAS/SD card, send email, trigger recording, alarms, flashing light, audio warning
General
-
Power: 12V DC (15.5W) or PoE (17W, Class 4)
-
Material: Metal housing
-
Size: Ø138.3 × 115.4 mm (5.4" × 4.5")
-
Weight: 820 g (camera), 1.2 kg (with packaging)
-
Operating temperature: -30 °C to 60 °C, up to 95% humidity
-
Protection: IP67, NEMA 4X anti-corrosion
-
Certifications: CE, RCM, IC, KC, UL, CB, RoHS
-
Flashing light options: Red/Blue (SRB model) or White (SL model)
