Description

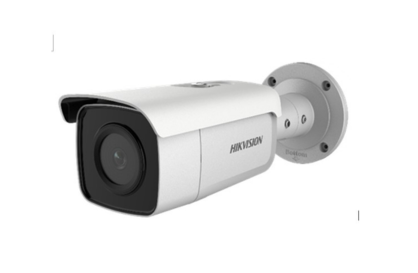

Part of Hikvision’s AcuSense Series, the HIK-2CD2T46G14I4 is an outdoor-ready bullet camera. Powered by Darkfighter and with an IR rating of 80m, this camera is ready for any environment, day or night, where security is a must.
- Max. 2688 x 1520 resolution at 30fps
- 4mm fixed lens
- H.265+, H.264+, H.265, H.264
- 120dB WDR
- False alarm reduction by human and vehicle target classification based on deep learning
- Powered by Darkfighter
- 12 VDC and PoE (802.3af, class 3)
- 80m IR
- Supports on board storage, up to 128 GB
- IP67
- BLC/3D DNR/ROI
- Colour: 0.007 Lux at (F1.2, AGC ON), 0.012 Lux at (F1.6, AGC ON)
| Image Sensor: | 1/2.7” Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON) | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124° 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99° 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58° 8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45° |
|
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265/H.264/MJPEG | |
| Video bit rate: | 32Kbps~16Mbps | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2688 × 1520 | |
| Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 576, 640 × 480, 352 × 288) |
|
| Frame Rate: | 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
| Image Enhancement: | BLC/3D DNR | |
| ROI: | Support 1 fixed region for main stream and sub stream separately | |
| Day/Night Switch: | Day/Night/Auto/Schedule | |
| Network | ||
|---|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Smart Feature-set | ||
|---|---|---|
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| General | ||
|---|---|---|
| Power Consumption: | -2I: 12 VDC, 0.9 A, Max: 10.5 W PoE: (802.3at, 42.5 V to 57 V), 0.3A to 0.1A, Max: 13 W -4I: 12 VDC, 1.2 A, Max: 14 W PoE: (802.3at, 42.5 V to 57 V), 0.4A to 0.1A, Max: 17 W |
|
| Weather Proof: | IP67 | |
| Dimensions: | Camera: Φ105 × 289.5 mm (Φ4.1″ × 11.4″) | |
| Weight: | Camera: 1100 g (2.4 lb.) With package: 1600 g (3.5 lb.) |
|
