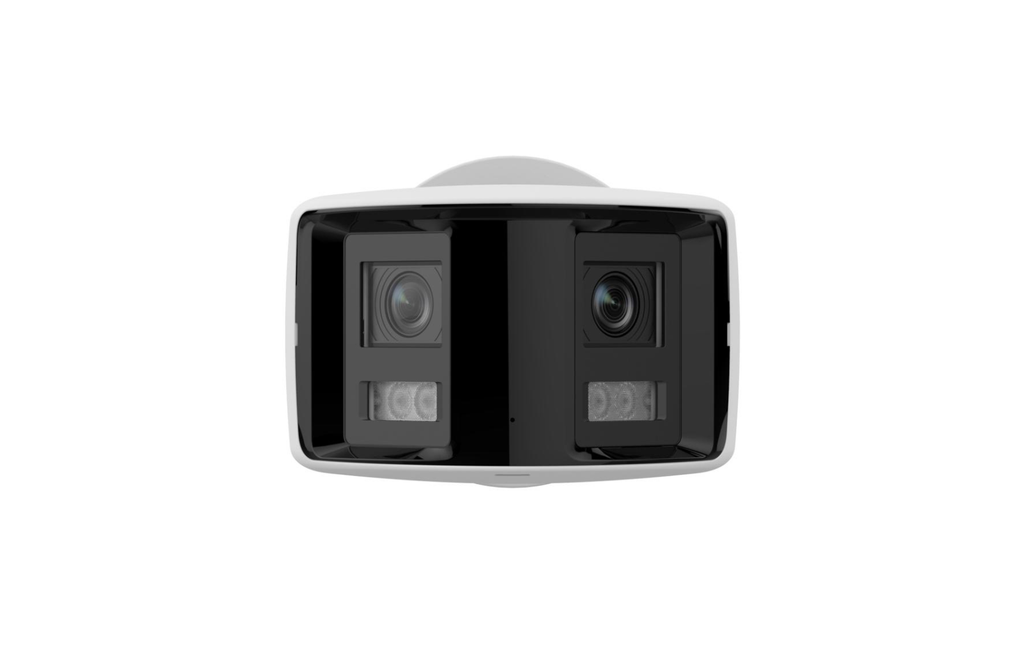

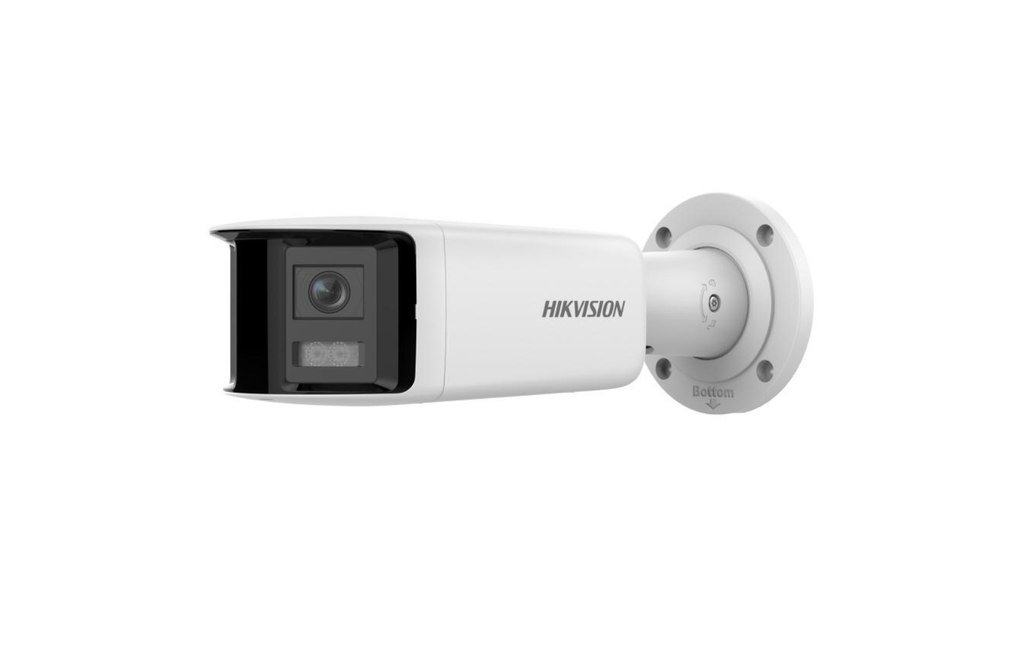

Hikvision DS-2CD2T67G2P-LSU/SL (2.8mm) 6 MP Panoramic ColorVu Fixed Bullet Network Camera 2.8mm

6MP Panoramic ColorVu Fixed Bullet Network Camera

Key Features

• 6MP panoramic resolution (3632 × 1632)
• Dual 1/2.5" Progressive Scan CMOS sensors
• 180° wide-angle panoramic view
• 24/7 full-colour imaging with ColorVu
• Smart H.265+ compression
• 130dB WDR for strong backlight scenes
• Human & vehicle classification with deep learning
• Built-in microphone and speaker
• Active strobe light and audible warning
• IP67 weatherproof
• microSD storage up to 256GB
• Full metal panoramic bullet design
• Datasheet

Camera

• Sensor: 2 × 1/2.5" Progressive Scan CMOS
• Resolution: 3632 × 1632
• Minimum Illumination: 0.0005 Lux colour / 0 Lux with light
• Shutter Speed: 1/3s to 1/100,000s
• Angle Adjustment: 355° pan / 90° tilt / 360° rotate

Lens

• Lens Type: Dual fixed focal
• Focal Length: 2.8mm
• Aperture: F1.0
• Lens Mount: M12
• Iris: Fixed
• Depth of Field: 2m to ∞

Field of View

• 2.8mm: 180° horizontal / 81° vertical panoramic view

DORI

• 2.8mm: D 45m / O 17.5m / R 9m / I 4.5m

Lighting

• Type: White Light only
• Range: Up to 40m
• Smart Supplement Light: Yes

Video

• Main Stream: Up to 20fps @ 3632 × 1632
• Sub Stream: Up to 20fps
• Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Bit Rate: 32 Kbps to 16 Mbps
• Bit Rate Control: CBR / VBR
• ROI: 1 fixed region
• SVC: H.264 / H.265 supported

Audio

• Built-in microphone
• Built-in speaker
• Mono sound
• Audio Input: 1 × line in
• Audio Output: 1 × line out
• Noise Filtering: Yes
• Codec Support: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
• Speaker Output: Up to 97dB at 10cm

AI Analytics

• Line crossing detection
• Intrusion detection
• Region entry / exit
• Human & vehicle filtering
• Scene change detection
• Motion detection
• Video tampering alarm

Network & Storage

• LAN: 1 × RJ45 10/100M
• Storage: microSD up to 256GB
• NAS: NFS / SMB / CIFS
• ANR: Supported
• Protocols: ONVIF Profile S/G/T, ISAPI, SDK, IPv4/IPv6, HTTPS, TLS
• Users: Up to 32
• Live View: Up to 6 channels
• Client Software: iVMS-4200 / Hik-Connect / Hik-Central

Image Features

• 130dB WDR
• 3D DNR
• BLC / HLC
• SNR: ≥ 52dB
• 8 privacy masks

Alarm & Interface

• Alarm Input: 1
• Alarm Output: 1
• Audio I/O: 1 in / 1 out
• Reset Button: Yes

Power

• 12VDC: Max 10.5W
• PoE: IEEE 802.3af Class 3
• PoE Max: 12.5W

Build

• Material: Full metal housing
• Dimensions: 118.6 × 105.1 × 306.5mm
• Unit Weight: 1400g
• Package Weight: 2100g

Protection

• IP67 weatherproof
• Operating Temperature: -30°C to 60°C

Certifications

• CE
• RCM
• FCC
• IC
• UL
• RoHS
• WEEE
• REACH
