Description

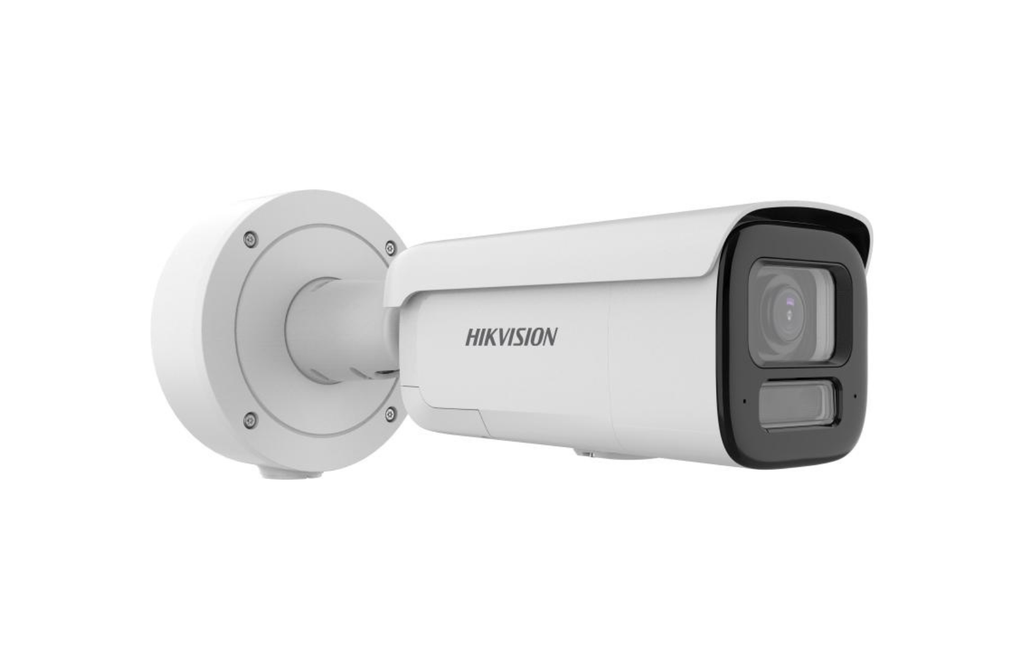

6MP Dual Illumination Strobe Light and Audible Warning Motorized Varifocal Bullet Network Camera
Key Features
- 6MP resolution (3200 × 1800)
- 1/1.8" Progressive Scan CMOS
- HIK AI-ISP for advanced noise reduction
- 24/7 full-colour imaging with DarkFighter 2.0
- Motorized varifocal lens 2.7–13.5mm
- Smart Hybrid Light with IR + White Light
- Up to 60m illumination distance
- Human & vehicle classification with deep learning
- Built-in array dual microphones
- Built-in two-way audio and speaker
- Active strobe light and audio alarm
- Face capture, people counting, and perimeter protection
- e-PTZ with patrol and auto tracking support
- IP67 weatherproof
- IK10 vandal resistant
- NEMA 4X anti-corrosion (-Y)
- microSD storage up to 512GB
- Full metal body and bracket
- Datasheet
Camera
- Sensor: 1/1.8" Progressive Scan CMOS
- Resolution: 3200 × 1800
- Minimum Illumination: 0.001 Lux colour / 0 Lux with light
- Shutter Speed: 1s to 1/100,000s
- Day/Night: IR cut filter
- Angle Adjustment: 355° pan / 90° tilt / 360° rotate
Lens
- Lens Type: Motorized varifocal
- Focal Length: 2.7–13.5mm
- Aperture: F1.2
- Iris: Auto-iris
- Mount: Integrated
- Depth of Field: 1m to ∞
Field of View
- 2.7–13.5mm: 112.3° to 41.2° H / 58.1° to 23.1° V / 137.4° to 47.3° D
DORI
- Wide: D 74.3m / O 29.5m / R 14.9m / I 7.4m
- Tele: D 183.3m / O 72.8m / R 36.7m / I 18.3m
Lighting
- Type: IR + White Light
- Range: Up to 60m
- Smart Supplement Light: Yes
- IR Wavelength: 850nm
- Flashing Light: White Light
Video
- Main Stream: Up to 30fps @ 3200 × 1800
- Sub Stream: Up to 30fps
- Third Stream: Supported
- Fourth Stream: Supported
- Compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
- Bit Rate: 32 Kbps to 16 Mbps
- Bit Rate Control: CBR / VBR
- ROI: 5 fixed regions for main and sub stream
- SVC: H.264 / H.265 supported
- e-PTZ: Patrol and auto tracking supported
Audio
- Built-in array dual microphones
- Built-in speaker
- Two-way audio
- Mono sound
- Audio Input: 1 × line in
- Audio Output: 1 × line out
- Noise Filtering: Yes
- Codec Support: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
- Speaker Output: Up to 120dB at 10cm
AI Analytics
- Face capture
- People counting
- Line crossing
- Intrusion detection
- Region entry / exit
- Human & vehicle filtering
- Scene change detection
- Audio exception detection
- Defocus detection
- Smart motion detection
- Video tampering alarm
Network & Storage
- LAN: 1 × RJ45 10/100M
- Storage: microSD up to 512GB
- NAS: NFS / SMB / CIFS
- ANR: Supported
- Protocols: ONVIF Profile S/T/G, ISAPI, SDK, ISUP, IPv4/IPv6, HTTPS, TLS
- Users: Up to 32
- Live View: Up to 6 channels
- Browser Support: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+
- Client Software: iVMS-4200 / Hik-Connect / Hik-Central
Image Features
- 130dB WDR
- 3D DNR
- BLC / HLC
- Defog
- Distortion correction
- EIS image stabilisation
- 8 polygon privacy masks
- SNR: ≥ 52dB
Open Platform
- Open Capability: HEOP 2.0 OpenDevSDK
- Computing Power: 1.5 TOPS
- Deep Learning Frameworks: Caffe / PyTorch / TensorFlow / PaddlePaddle / ONNX
- Programming Language: C / C++
- Memory: 40MB
- Smart RAM: 450MB
- eMMC: 2GB
Alarm & Interface
- Alarm Input: 2
- Alarm Output: 2
- Audio I/O: 1 in / 1 out
- Reset Button: Yes
- Power Output: 12VDC, max. 100mA
Power
- 12VDC: Max 14.5W
- PoE: IEEE 802.3at Class 4
- PoE Max: 18W
Build
- Material: Metal front cover, body, and bracket
- Dimensions: 335 × 140 × 140mm
- Unit Weight: 1555g
- Package Weight: 2366g
Protection
- IP67 weatherproof
- IK10 vandal resistant
- NEMA 4X anti-corrosion (-Y)
- Operating Temperature: -30°C to 60°C
Certifications
- CE
- CB
- RoHS
