Description

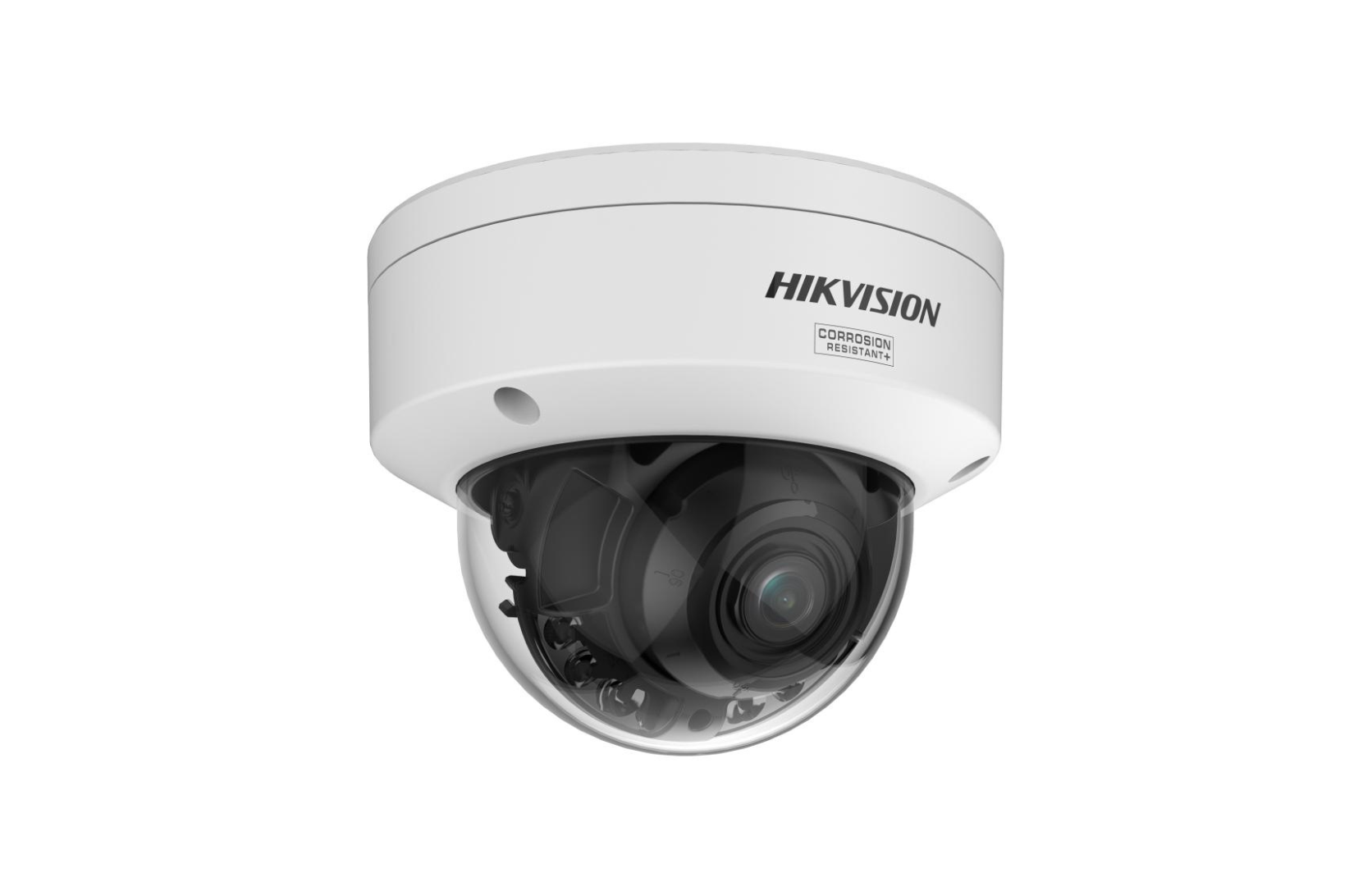

8MP Dual Illumination Motorized Varifocal Dome Network Camera
Key Features
- 8MP ultra-clear resolution (3840 × 2160)
- 1/1.8" Progressive Scan CMOS
- HikAI-ISP for advanced noise reduction
- DarkFighter 2.0 for superior low-light colour imaging
- Smart Hybrid Light with IR + White Light (up to 40m)
- Motorized varifocal lens (2.7–13.5mm)
- Human & vehicle classification with deep learning
- Face capture and people counting
- Built-in array dual microphones with audio I/O
- 130dB scene-adaptive WDR
- HEOP 2.0 open platform support
- IP67 weatherproof
- IK10 vandal resistant
- NEMA 4X anti-corrosion (-Y model)
- microSD storage up to 512GB
- Full metal dome housing
- Datasheet
Camera
- Sensor: 1/1.8" Progressive Scan CMOS
- Resolution: 3840 × 2160
- Minimum Illumination: 0.001 Lux colour / 0 Lux with light
- Shutter Speed: 1s to 1/100,000s
- Day/Night: IR cut filter
- Angle Adjustment: 355° pan / 75° tilt / 355° rotate
Lens
- Lens Type: Motorized varifocal
- Focal Length: 2.7–13.5mm
- Aperture: F1.2
- Iris: Auto-iris
- Mount: Integrated
- Depth of Field: 1m to ∞
Field of View
- Horizontal: 112.3° to 41.2°
- Vertical: 58.1° to 23.1°
- Diagonal: 137.4° to 47.3°
DORI Performance
- Wide: Detect 89.2m / Observe 35.4m / Recognise 17.8m / Identify 8.9m
- Tele: Detect 220.0m / Observe 87.3m / Recognise 44.0m / Identify 22.0m
Lighting
- Type: Smart Hybrid Light (IR + White Light)
- Range: Up to 40m
- Smart Supplement Light: Yes
- IR Wavelength: 850nm
Video
- Main Stream: Up to 30fps @ 3840 × 2160
- Sub Stream: Up to 30fps
- Third Stream: Supported
- Fourth Stream: Supported
- Compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
- Bit Rate: 32 Kbps to 16 Mbps
- Bit Rate Control: CBR / VBR
- ROI: 5 fixed regions
- SVC: H.264 / H.265 supported
- e-PTZ: Patrol and auto tracking supported
Audio
- Built-in array dual microphones
- Mono audio
- Noise filtering supported
- Audio input and output terminals
- Codec Support: G.711 / G.722.1 / G.726 / AAC-LC / MP3 / PCM
AI Analytics
- Face capture
- People counting
- Line crossing
- Intrusion detection
- Region entry / exit
- Human & vehicle filtering
- Scene change detection
- Audio exception detection
- Defocus detection
- Smart motion detection
- Video tampering alarm
Network & Storage
- LAN: 1 × RJ45 10/100M
- Storage: microSD up to 512GB
- NAS: NFS / SMB / CIFS
- ANR: Supported
- Protocols: ONVIF Profile S/T/G, ISAPI, SDK, ISUP, IPv4/IPv6, HTTPS, TLS
- Users: Up to 32
- Simultaneous Live View: Up to 6 channels
- Client Software: iVMS-4200 / Hik-Connect / Hik-Central
Image Features
- 130dB WDR
- 3D DNR
- BLC / HLC
- Defog
- Distortion correction
- EIS image stabilisation
- 8 polygon privacy masks
- SNR: ≥ 52dB
Power
- 12VDC: Max 16.2W
- PoE: IEEE 802.3at Class 4
- PoE Max: 18W
- Power Output: 12VDC (100mA)
Build
- Material: Full metal housing
- Dimensions: Ø141 × 112mm
- Unit Weight: 850g
- Package Weight: 1440g
Protection
- IP67 weatherproof
- IK10 vandal resistant
- NEMA 4X anti-corrosion (-Y model)
- Operating Temperature: -30°C to 60°C
Certifications
- CE
- RCM
- IC
- CB
- RoHS
- WEEE
