Description

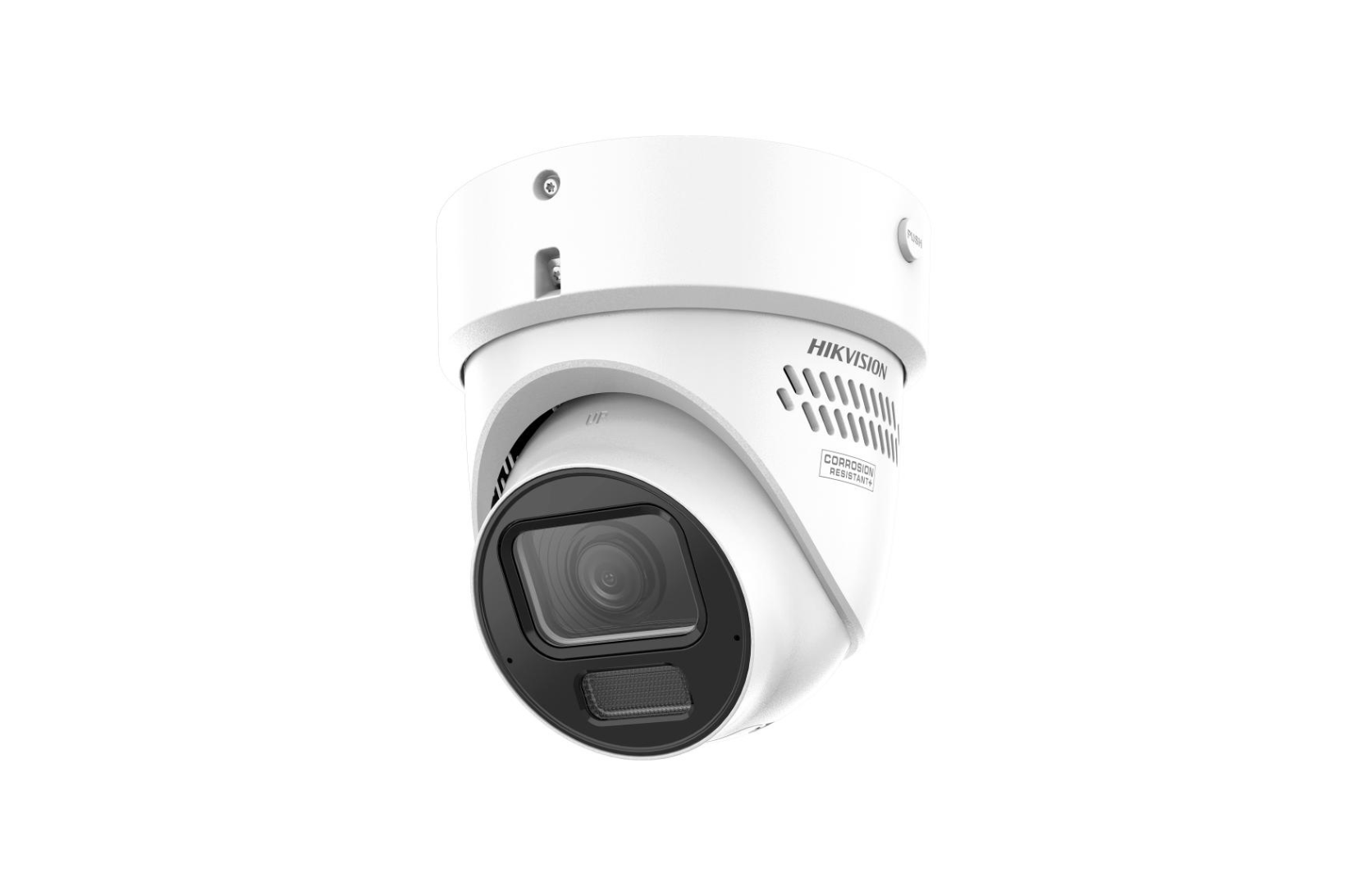

6MP Dual Illumination Strobe Light & Audible Warning Motorized Varifocal Turret Network Camera
Key Features
- 6MP resolution (3200 × 1800)
- 1/1.8" Progressive Scan CMOS
- HikAI-ISP for advanced noise reduction
- DarkFighter 2.0 for superior low-light colour imaging
- Smart Hybrid Light with IR + White Light (up to 40m)
- Motorized varifocal lens (2.7–13.5mm)
- Active deterrence with strobe light and audio warning
- Human & vehicle classification with deep learning
- Built-in array dual microphones and speaker
- Two-way audio support
- Face capture and people counting
- HEOP 2.0 open platform support
- IP67 weatherproof
- IK10 vandal resistant
- NEMA 4X anti-corrosion
- microSD storage up to 512GB
- Full metal turret housing
- Datasheet
Camera
- Sensor: 1/1.8" Progressive Scan CMOS
- Resolution: 3200 × 1800
- Minimum Illumination: 0.001 Lux colour / 0 Lux with light
- Shutter Speed: 1s to 1/100,000s
- Day/Night: IR cut filter
- Angle Adjustment: 360° pan / 75° tilt / 360° rotate
Lens
- Lens Type: Motorized varifocal
- Focal Length: 2.7–13.5mm
- Aperture: F1.2
- Iris: Auto-iris
- Mount: Integrated
- Depth of Field: 1m to ∞
Field of View
- Horizontal: 112.3° to 41.2°
- Vertical: 58.1° to 23.1°
- Diagonal: 137.4° to 47.3°
DORI Performance
- Wide: Detect 74.3m / Observe 29.5m / Recognise 14.9m / Identify 7.4m
- Tele: Detect 183.3m / Observe 72.8m / Recognise 36.7m / Identify 18.3m
Lighting
- Type: Smart Hybrid Light (IR + White Light)
- Range: Up to 40m
- Smart Supplement Light: Yes
- IR Wavelength: 850nm
Video
- Main Stream: Up to 30fps @ 3200 × 1800
- Sub Stream: Up to 30fps
- Third Stream: Supported
- Fourth Stream: Supported
- Compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
- Bit Rate: 32 Kbps to 16 Mbps
- Bit Rate Control: CBR / VBR
- ROI: 5 fixed regions
- SVC: H.264 / H.265 supported
- e-PTZ: Patrol and auto tracking supported
Audio
- Built-in array dual microphones
- Built-in speaker (up to 97dB)
- Two-way audio supported
- Noise filtering supported
- Audio input and output terminals
- Codec Support: G.711 / G.722.1 / G.726 / AAC-LC / MP3 / PCM
AI Analytics
- Face capture
- People counting
- Line crossing
- Intrusion detection
- Region entry / exit
- Human & vehicle filtering
- Scene change detection
- Audio exception detection
- Defocus detection
- Smart motion detection
- Video tampering alarm
Network & Storage
- LAN: 1 × RJ45 10/100M
- Storage: microSD up to 512GB
- NAS: NFS / SMB / CIFS
- ANR: Supported
- Protocols: ONVIF Profile S/T/G, ISAPI, SDK, ISUP, IPv4/IPv6, HTTPS, TLS
- Users: Up to 32
- Simultaneous Live View: Up to 6 channels
- Client Software: iVMS-4200 / Hik-Connect / Hik-Central
Image Features
- 130dB WDR
- 3D DNR
- BLC / HLC
- Defog
- Distortion correction
- EIS image stabilisation
- 8 polygon privacy masks
- SNR: ≥ 52dB
Power
- 12VDC: Max 16.8W
- PoE: IEEE 802.3at Class 4
- PoE Max: 20W
- Power Output: 12VDC (100mA)
Build
- Material: Full metal housing
- Dimensions: Ø143.5 × 142.7mm
- Unit Weight: 1265g
- Package Weight: 1530g
Protection
- IP67 weatherproof
- IK10 vandal resistant
- NEMA 4X anti-corrosion
- Operating Temperature: -30°C to 60°C
Certifications
- CE
- RCM
- CB
- RoHS
