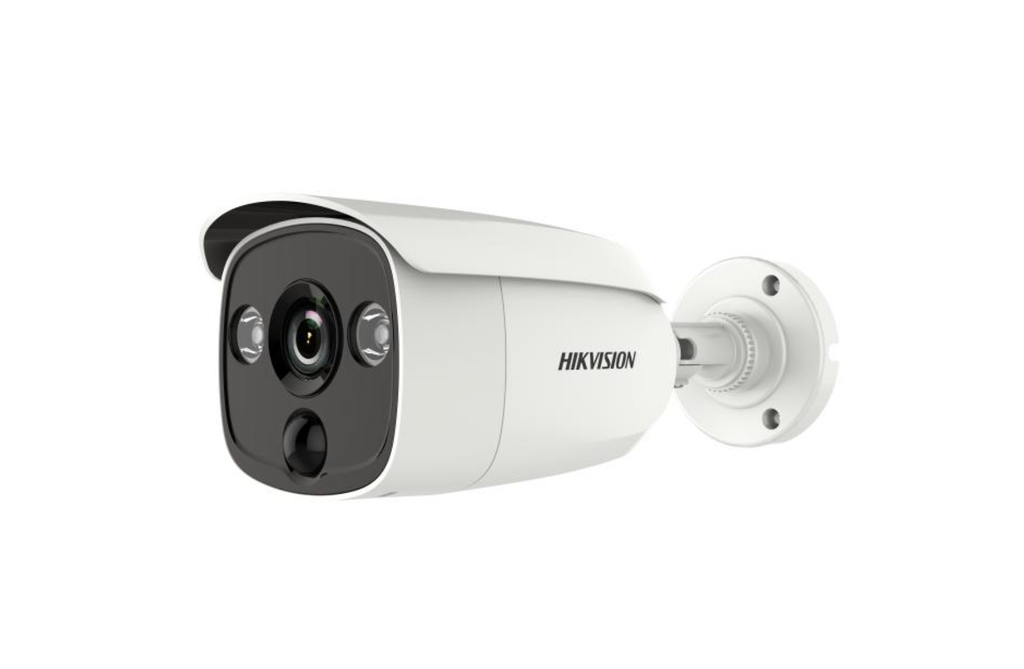

Hikvision DS-2CE12H0T-PIRL 5 MP PIR Fixed Bullet Camera

• 5 MP PIR bullet camera
• PIR detection and strobe light alarm to warn off intruders in real time
• EXIR 2.0: advanced infrared technology with 20 m IR distance
• Water and dust resistant (IP67)
• Datasheet

Camera

• Image Sensor: 5.0 Megapixel Progressive Scan CMOS

• Max. Resolution: 2560 (H) × 1944 (V)

• Min. Illumination:

  • Color: 0.01 Lux @ (F1.2, AGC ON)

  • 0 Lux with IR

• Shutter Time:

  • PAL: 1/25 s to 1/50,000 s

  • NTSC: 1/30 s to 1/50,000 s

• Day & Night: IR Cut Filter

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–180°, Rotate: 0°–360°

• Signal System: PAL / NTSC

Lens

• Lens Type: Fixed Lens

• Focal Length & Field of View:

  • 2.8 mm: 85.5°

  • 3.6 mm: 80.1°

• Lens Mount: M12


• Image Settings: Brightness, Contrast, Sharpness, Saturation, DNR, Mirror

• Frame Rate:

  • PAL: 5 MP @ 20 fps, 4 MP @ 25 fps, 1080p @ 25 fps

  • NTSC: 5 MP @ 20 fps, 4 MP @ 30 fps, 1080p @ 30 fps

• Day/Night Mode: Auto / Color / B&W

• Image Enhancement: BLC

• White Balance: Auto / Manual

• White Light: Auto / Off

• AGC: Yes

Supplement Detection (PIR)

• PIR Angle: 110°

• PIR Range: 11 m

Interface

• Video Output: TVI only

• Alarm: Supported

General

• Material:

  • Front Cover: Metal

  • Main Body: Plastic

• Dimensions: 88.6 × 81.3 × 224.7 mm (3.49" × 3.20" × 8.85")

• Weight: Approx. 430 g (0.95 lb)

• Operating Conditions: –40 °C to 60 °C (–40 °F to 140 °F), ≤90% humidity (non-condensing)

• Communication: Up the Coax, Protocol: HIKVISION-C (TVI output)

• Language: English

• Power Supply: 12 VDC ±25%

• Power Consumption: Max. 4 W

• IR Range: Up to 20 m

Approval

• Protection: IP67
