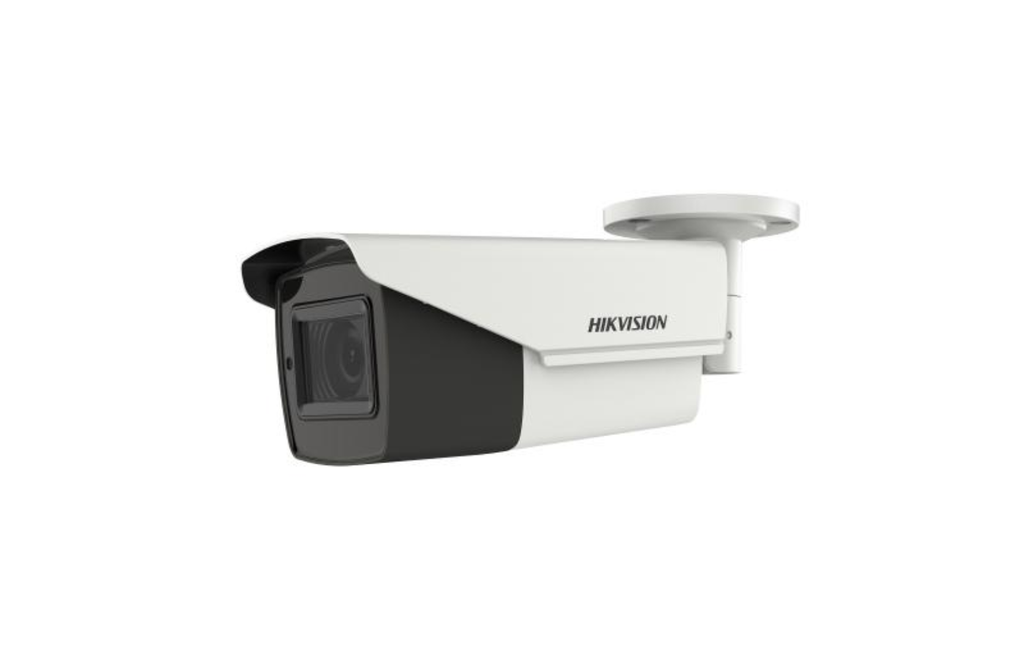

Hikvision DS-2CE19U7T-AIT3ZF 4K Ultra Low Light Motorized Varifocal Bullet Camera

• 8 MP high performance bullet camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Lens focuses automatically when zooming in or out
• EXIR 2.0, advanced infrared technology with 80 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
• Datasheet

Camera

• Image Sensor: 8.29 Megapixel Progressive Scan CMOS

• Max. Resolution: 3840 (H) × 2160 (V)

• Min. Illumination:

  • Color: 0.003 Lux @ (F2.4, AGC ON)

  • 0 Lux with IR

• Shutter Time:

  • PAL: 1/12.5 s to 1/50,000 s

  • NTSC: 1/15 s to 1/50,000 s

• Day & Night: IR Cut Filter

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°

• Signal System: PAL / NTSC

Lens

• Lens Type: 2.7 mm – 13.5 mm Motorized Varifocal Lens

• Focal Length & Field of View: 108.1° – 45.6°

• Lens Mount: Φ14

Illuminator

• Supplement Light Type: IR

• Supplement Light Range: Up to 80 m

• Smart Supplement Light: Yes


• Image Settings: Brightness, Sharpness, Mirror, Smart IR, AGC

• Frame Rate:

  • TVI: 8MP @ 12.5/15 fps, 5MP @ 20 fps, 4MP @ 25/30 fps, 2MP @ 25/30 fps

  • CVI: 8MP @ 12.5/15 fps

  • AHD: 8MP @ 12.5/15 fps

  • CVBS: 960H (P/N)

• Day/Night Mode: Auto / Color / B&W

• Wide Dynamic Range (WDR): ≥130 dB

• Image Enhancement: BLC, WDR

• Noise Reduction: 3D DNR

• White Balance: Auto / Manual

Interface

• Video Output: Switchable TVI / AHD / CVI / CVBS (1 HD analog output)

General

• Power Supply:

  • 9.6 VDC – 14.4 VDC

  • 19.2 VAC – 28.8 VAC

  • Max Power Consumption: 10.8 W

• Material: Metal

• Dimensions: 84.5 × 92 × 255.1 mm (3.33" × 3.62" × 10")

• Weight: Approx. 925 g (2.04 lb)

• Operating Conditions: –40 °C to 60 °C (–40 °F to 140 °F), ≤90% humidity (non-condensing)

• Communication: HIKVISION-C

• Protection: IP67
