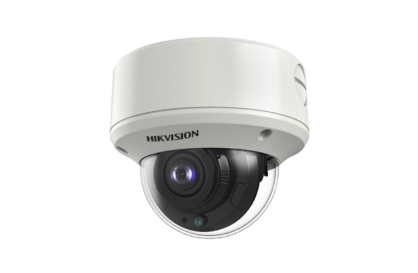

Hikvision DS-2CE59H8T-AVPIT3ZF TVI4.0 5MP Outdoor Dome Camera, IR, 130dB WDR, IP67, 2.7-13.5mm

5 MP Ultra Low Light Vandal Motorized Varifocal Dome Camera

• 5 MP high performance dome camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Lens focuses automatically when zooming in or out
• EXIR 2.0: advanced infrared technology with 60 m IR distance
• Water and dust resistant (IP67) and vandal proof (IK10)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)





Camera

• Image Sensor: 5 megapixel progressive scan CMOS
• Max. Resolution: 2560 (H) × 1944 (V)
• Min. Illumination: Color: 0.003 Lux@(F1.38, AGC ON), 0 Lux with IR
• Shutter Time:
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
• Signal System: PAL/NTSC

Lens

• Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
• Focal Length & FOV: 92.3° to 29.3°
• Lens Mount: Φ 14


• Image Settings: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
• Frame Rate:
  • TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
  • AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
  • CVI: 4 MP@25fps, 4 MP@30fps
  • CVBS: PAL, NTSC
• Day/Night Mode: Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR): ≥ 130 dB
• Image Enhancement: BLC
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: Level 1 to 9
• White Balance: Auto/Manual
• AGC: Yes

Interface

• Video Output: 1 HD analog output, TVI/AHD/CVI/CVBS

Event

• Motion Detection: 4 programmable areas

General

• Material: Metal
• Dimension: Φ 145.2 mm × 124.1 mm (Φ 7.1" × 4.9")
• Weight: Approx. 640 g (1.41 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
• Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
• Language: English
• Power Supply:
  • A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
• Consumption:
  • A: Max. 8 W
• IR Range: Up to 60 m
• Approval Protection: IP67, IK10
