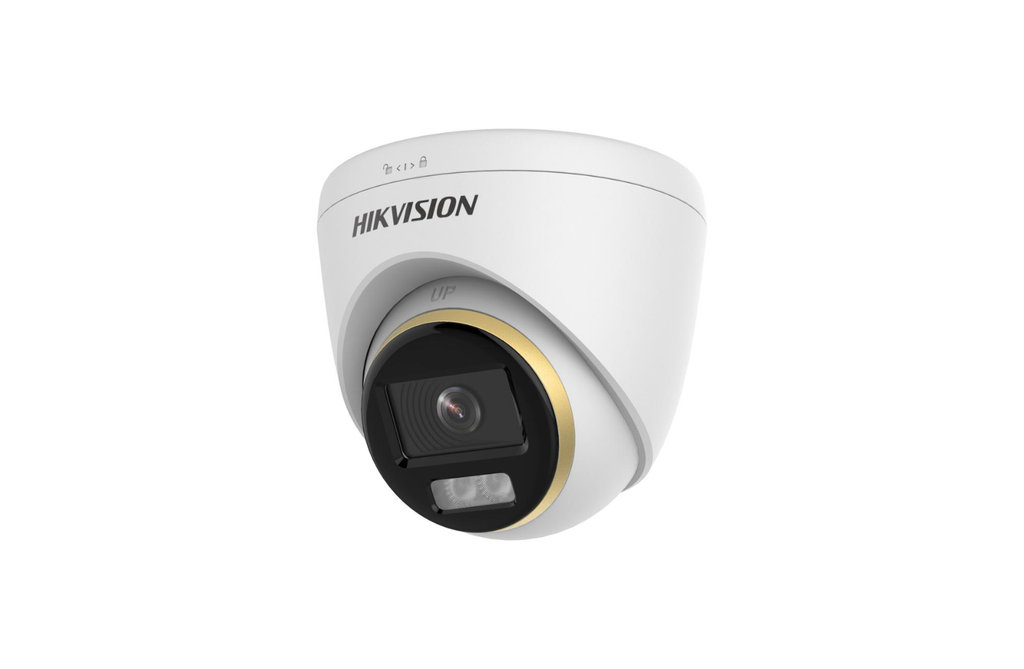

Hikvision DS-2CE72KF3T-L 3K ColorVu Dual-light Fixed Turret Camera

• High quality imaging with 3K, 2960 × 1665 resolution
• Excellent low-light performance
• 24/7 color imaging with F1.0 aperture
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options
• Datasheet

Camera

• Image Sensor: 3K CMOS

• Signal System: PAL / NTSC

• Max. Resolution: 2960 (H) × 1665 (V)

• Slow Shutter: Max. 16×

• Min. Illumination:

  • 0.0005 Lux @ (F1.0, AGC ON)

  • 0 Lux with White Light

• Shutter Time:

  • PAL: 1/25 s to 1/50,000 s

  • NTSC: 1/30 s to 1/50,000 s

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°

Lens

• Lens Type: 2.8 mm / 3.6 mm Fixed Focal Lens

• Focal Length & Field of View:

  • 2.8 mm: H: 105°, V: 59°, D: 139°

  • 3.6 mm: H: 80°, V: 49°, D: 105°

• Lens Mount: M12

Illuminator

• Supplement Light Type: Smart / IR / White Light

• Range:

  • IR: Up to 40 m

  • White Light: Up to 40 m


• Day/Night Mode: Auto / Color

• Frame Rate:

  • 3K @ 20 fps

  • 4 MP @ 25 / 30 fps

  • 1080p @ 25 / 30 fps

• Privacy Mask: 4 or 8 programmable privacy masks

• Wide Dynamic Range (WDR): ≥130 dB

• Image Parameter Switch: STD / HIGH-SAT / HIGHLIGHT

• AGC: Yes

• White Balance: Auto / Outdoor / Global / Manual

• Image Enhancement: WDR / BLC / HLC / Global / HLS

• Noise Reduction: 3D DNR / 2D DNR

• Image Settings: Anti-Banding, Smart Light, Brightness, Contrast, Mirror

Interface

• Video Output: 1 HD Analog Output

Event

• Motion Detection: 4 programmable motion areas

General

• Power Supply: 12 VDC ±25%, 0.65 A, Max. 7.8 W
  It is recommended to use one power adapter per camera.
  For high-impedance cables (e.g. 18 m extension), use a 15 VDC adapter.

• Language: English

• Operating Conditions: –40 °C to 60 °C (–40 °F to 140 °F), ≤90% RH (non-condensing)

• Material: Main Body: Metal; Enclosure: Plastic

• Communication: HIKVISION-C

• Dimensions: Ø109.98 × 98.27 mm (Ø4.33" × 3.87")

• Weight: Approx. 325 g (0.72 lb)

Approval

• Protection: IP67
