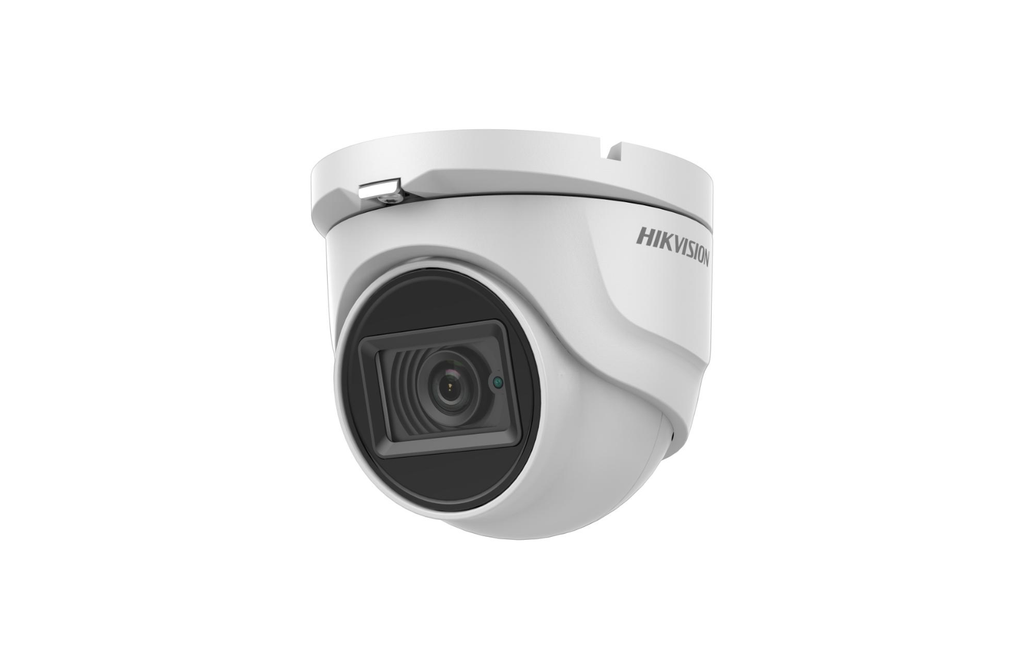

Hikvision DS-2CE76H8T-ITMF 5 MP Ultra Low Light Fixed Turret Camera

• 5 MP high performance turret camera
• Strong night performance, capturing images in ultra-low light down to 0.003 lux
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• EXIR 2.0: advanced infrared technology with 30 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
• Datasheet

Camera

• Image Sensor: 5 Megapixel Progressive Scan CMOS

• Max. Resolution: 2560 (H) × 1944 (V)

• Min. Illumination:

  • 0.003 Lux @ (F1.6, AGC ON)

  • 0 Lux with IR

• Shutter Time:

  • PAL: 1/25 s to 1/50,000 s

  • NTSC: 1/30 s to 1/50,000 s

• Day & Night: IR Cut Filter

• Angle Adjustment: Pan: 0°–360°, Tilt: 0°–180°, Rotation: 0°–360°

• Signal System: PAL / NTSC

Lens

• Lens Type: Fixed Lens (2.8 mm / 3.6 mm / 6 mm)

• Focal Length & Field of View:

  • 2.8 mm: 98°

  • 3.6 mm: 78°

  • 6 mm: 48°

• Lens Mount: M12

Illuminator

• Supplement Light Type: IR

• Supplement Light Range: Up to 30 m


• Image Settings: Brightness, Sharpness, Mirror, Smart IR, AGC

• Frame Rate:

  • TVI: 2 MP @ 25/30 fps, 4 MP @ 25/30 fps, 5 MP @ 20 fps

  • AHD: 4 MP @ 25/30 fps, 5 MP @ 20 fps

  • CVI: 4 MP @ 25/30 fps

  • CVBS: PAL / NTSC

• Day/Night Mode: Auto / Color / B&W

• Wide Dynamic Range (WDR): ≥130 dB

• Image Enhancement: BLC

• Privacy Mask: 4 programmable privacy masks

• Noise Reduction: 3D DNR

• White Balance: Auto / Manual

Interface

• Video Output: Switchable TVI / AHD / CVI / CVBS (1 HD analog output)

Event

• Motion Detection: 4 programmable motion areas

General

• Power Supply: 12 VDC ±25%, Max. 5.8 W
  It is recommended to use one power adapter per camera.

• Material: Metal

• Dimensions: 90 × 79.37 mm (3.54" × 3.12")

• Weight: Approx. 300 g (0.66 lb)

• Operating Conditions: –40 °C to 60 °C (–40 °F to 140 °F), ≤90% RH (non-condensing)

• Communication: HIKVISION-C

• Language: English

Approval

• Protection: IP67
