Hikvision DS-2DF7A436IXG-EL(Y) 7A Series 4MP 36X DarkFighter IR Network Speed Dome Product vendor

Roll over image to zoom in Click on image to zoom

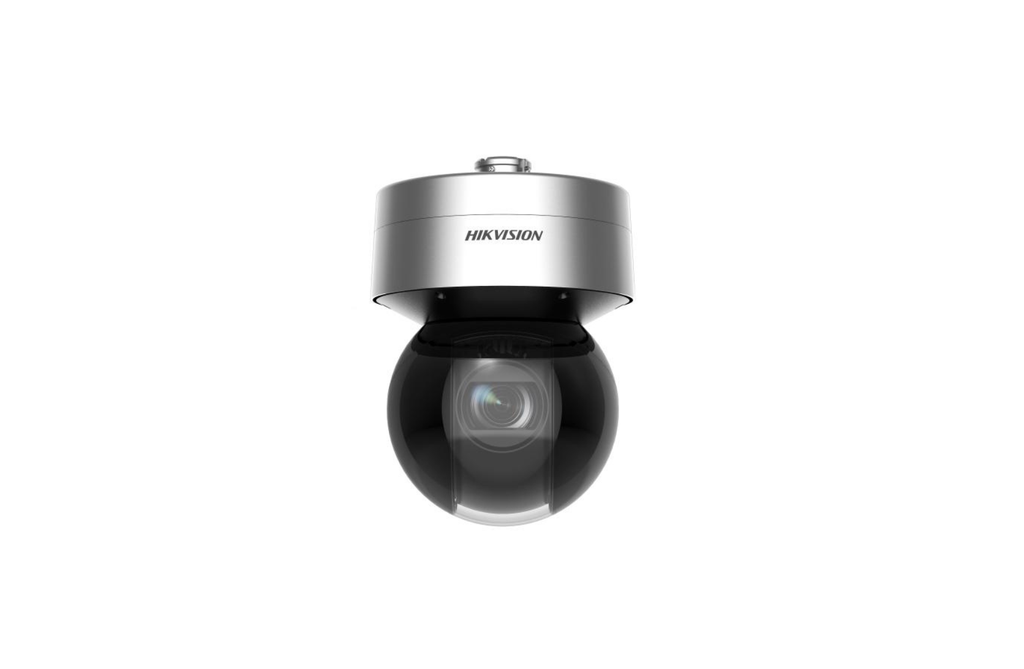

Hikvision DS-2DF7A436IXG-ELY 7A Series 4MP 36X DarkFighter IR Network Speed Dome

Name: Hikvision DS-2DF7A436IXG-ELY 7A Series 4MP 36X DarkFighter IR Network Speed Dome
Brand: Security Zone Online
SKU: DS-2DF7A436IXG-ELY
Price: 2859.50 AUD
Availability: InStock

Save $155.50

SKU: DS-2DF7A436IXG-ELY

Price:

$2,859.50 $3,015.00

Quantity:

Please note: This NVR is supplied without a hard drive. Choose a hard drive from the options below if you wish to record footage.

7A Series 4MP 36X DarkFighter IR Network Speed Dome PTZ

Key Features

4MP resolution (2688 × 1520)
36× optical zoom + 16× digital zoom
DarkFighter 2.0 ultra low light
150dB AWDR
Up to 300m IR
Rapid focus support
Smart pan-tilt correction
Built-in gyroscope for stable image
Auto-tracking 3.0
Face capture, LPR, human, vehicle and body analytics
IP67 + IK10
Optional NEMA 4X anti-corrosion
Datasheet

Camera

Sensor: 1/1.8" progressive CMOS
Max resolution: 2688 × 1520
Min illumination:
- Color: 0.0003 Lux
- B/W: 0.0001 Lux
- 0 Lux with IR
Day/Night: ICR
Slow shutter: Yes

Lens

Focal length: 6mm–216mm
Zoom: 36× optical
Digital zoom: 16×
Aperture: F1.2
Focus: auto / semi-auto / manual / rapid focus
Zoom speed: 4.5 sec

IR & PTZ

IR distance: up to 300m
Pan: 360°
Tilt: -20° to 90°
Max pan speed: 700°/s
Max tilt speed: 300°/s
Presets: 300
Patrols: 8
3D positioning
Power-off memory
Scheduled tasks
Preset freezing

Video

Up to 4MP @ 50/60fps
Up to 1080p @ 100/120fps
Triple stream
Compression:
- H.265+ / H.265
- H.264+ / H.264
- MJPEG
ROI fixed region
Bitrate: 32Kbps–16384Kbps

Image Features

150dB WDR
Optical defog
Gyroscope EIS
3D DNR
BLC / HLC
Regional focus
Regional exposure
24 privacy masks
SNR ≥ 52dB

AI Features

Face Capture

Up to 30 faces simultaneously
Best face image output
Face grading and selection

Perimeter

Line crossing
Intrusion
Region entry / exit

Multi Target

Face
Human body
Vehicle
7 face features
14 body features
8 vehicle features

Face Comparison

10 libraries
30,000 per library
150,000 total

LPR

Vehicle and motorcycle plate recognition
Up to 124 countries
Up to 120km/h front capture
Up to 80km/h side capture
10,000 allow/block list

Tracking

Manual tracking
Auto Tracking 3.0
Person arming
Face and human body tracking

Storage & Interface

RJ45 Ethernet
CVBS video out
RS485
Alarm: 7 in / 2 out
Audio in / out
microSD up to 1TB

General

36VDC or PoE++ 802.3bt
Max power: 90W
Typical max: 52W
Dimensions: Ø214.95 × 297.1 mm
Weight: 5kg
Operating temp: -40°C to 70°C

Protection

IP67 weatherproof
IK10 vandal resistant
6kV surge
Optional NEMA 4X anti-corrosion
