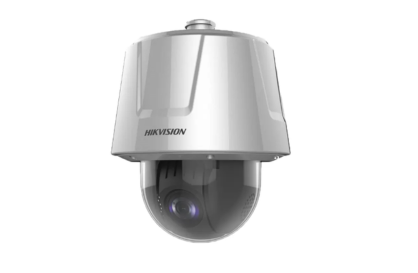

Hikvision DS-2DT6232X-AELY(T5) 6-inch 32x Anti-corrosion Network Speed Dome

• 1/1.8″ Progressive Scan CMOS
• Up to 1920 × 1080 resolution
• 32 × optical zoom, 16 × digital zoom
• Min. Illumination: Color: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
• 140dB WDR, 3D DNR, HLC
• 24 VAC Hi-PoE
• Support H.265+/H.265 video compression
• Support Rapid focus
• IK10, IP67
• Anti-Corrosion

Datasheet-of-DS-2DT6232X-AELYT5_20220409

Special Order (Delivery Time will vary)

Camera

• Image Sensor1/1.8＂ progressive scan CMOS
• Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
• Shutter Speed1/1s ~ 1/30,000s
• Slow Shutteryes
• Focusauto;semi-auto;manual
• Day & NightICR
• Day/Night Switchday, night, auto, scheduled-switch
• BLCyes
• WDR140 dB WDR
• HLCyes
• 3D DNRyes
• Defogyes
• EISYes. Built-in gyroscope to improve EIS performance.
• Regional Exposureyes
• Regional Focusyes
• White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
• Digital Zoom16x
• Optical Zoom32x
• Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
• DORI

  Detect(25px/m): 2604.1 m

  Observe(63px/m): 1033.4 m

  Recognize(125px/m): 520.8 m

  Identify(250px/m): 260.4 m

• SNR≥52dB
• General Functionmirror, password protection, watermark, IP address filter

• Lens
• Focal Length5.9mm to 188.8mm, 32× Optical
• Zoom Speedapprox. 4.5 s
• FOV

  Horizontal field of view: 59.8° to 3.3° (wide-tele),

  Vertical field of view: 33.7° to 1.9° (wide-tele),

  Diagonal field of view: 65° to 3.8° (wide-tele)

• ApertureF1.5

• Illuminator
• Smart IRno

PTZ

• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speedpan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
• Tilt Speedtilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
• Proportional Zoom yes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off Memory yes
• Park Actionpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
• 3D Positioningyes
• PTZ Status Display yes
• Preset Freezing yes
• Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output

Video

• Max. Resolution1920 × 1080
• Main Stream

  50Hz:25fps(1920×1080,1280×960,1280×720)；

  60Hz:30fps(1920×1080,1280×960,1280×720)；

• Sub-Stream

  50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video CompressionH.265;H.264;MJPEG
• Video Bit Rate32 Kbps ~ 16384 Kbps
• H.264 Typebaseline profile;main profile;high profile
• H.265 Typemain profile
• H.264+yes
• H.265+yes
• SVCyes
• ROIfixed region

• Audio
• Audio CompressionG.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)

• Smart Features
• Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
• Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
• Basic Eventalarm input and output;motion detection;video tampering alarm;exception
• Smart Eventobject removal detection;unattended baggage detection;vandal-proof alarm;fast moving detection;parking detection;region entrance detection;region exiting detection;line crossing detection;intrusion detection;loitering detection;people gathering detection;audio exception detection
• Smart Trackingmanual tracking;auto-tracking;event tracking
• Smart RecordANR;Dual-VCA
• Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Network

• Network StorageNAS (NFS, SMB/ CIFS);ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
• APIISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);Open-ended API;Third-party management platform;ISUP;Ehome
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. 3 levels: Administrator, Operator and User
• Smooth Streamingyes
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• ClientHikcentral;iVMS-4200;Hik-Connect
• Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

• Supplement Detection
• Compassyes

Interface

• Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
• Alarm Input7 alarm inputs
• Alarm Output2 alarm outputs
• Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output1 audio output, line level, impedance: 600 Ω
• Video OutputNTSC;PAL;1.0V[p-p]/75Ω;BNC connector
• RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive

• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2019);

  KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1)

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 62368-1:2014+A11:2017),

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (SANS IEC60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5

General

• Anti-Corrosion NEMA 4X
• Power24 VAC Hi-PoE
• Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
• Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
