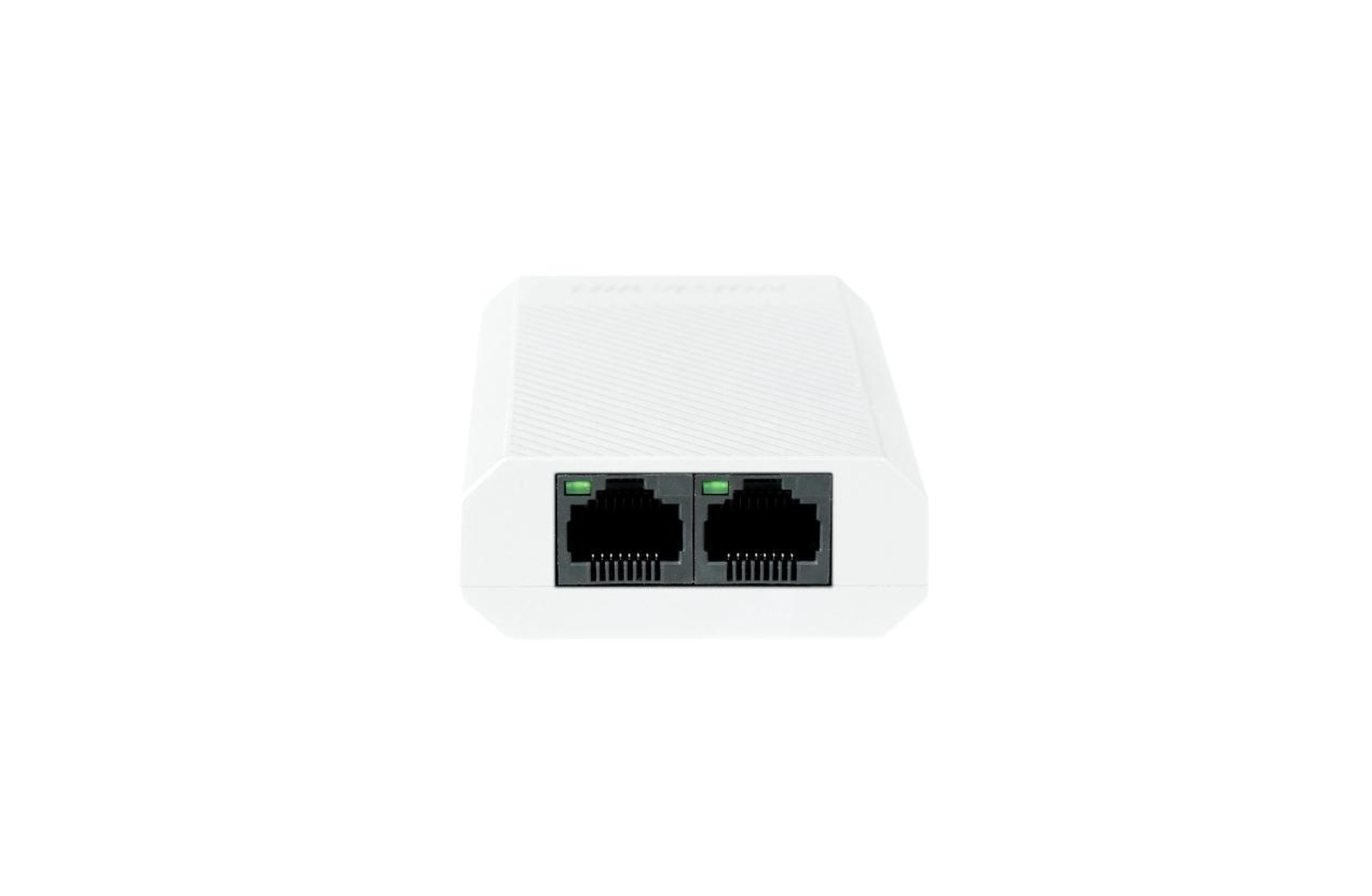

100Mbps PoE Repeater (1 PoE In + 2 PoE Out, 30W)
Key Features
- 1 × 10/100Mbps PoE IN port
- 2 × 10/100Mbps PoE OUT ports
- IEEE 802.3af / 802.3at
- Total PoE output: 30W
- Extends PoE power and data transmission distance
- Plug and play
- No configuration required
- Compact desktop design
- Datasheet
General
- Plastic housing
- Fan-free design
- Net weight: 0.046kg
- Dimensions: 79 × 22 × 53 mm
- Installation: desk mounted
- Operating temp: 0°C to 40°C
- Storage temp: -40°C to 85°C
- Humidity: 5%–95%
- Max power consumption: 1.2W
- Idle power: ≤0.92W
- Surge protection: 2kV
Network
Ports
- 1 × 10/100Mbps PoE input
- 2 × 10/100Mbps PoE output
Performance
- MAC table: 2K
- Switching capacity: 0.6Gbps
- Packet forwarding: 0.45Mpps
- Internal cache: 0.77Mbits
PoE
- IEEE 802.3af / 802.3at
- Ports 1–3
- Max device output: 30W
- Total PoE budget: 30W
Certifications
- CE
- UL
- CB
- CE-LVD
- RoHS
- WEEE
- REACH
