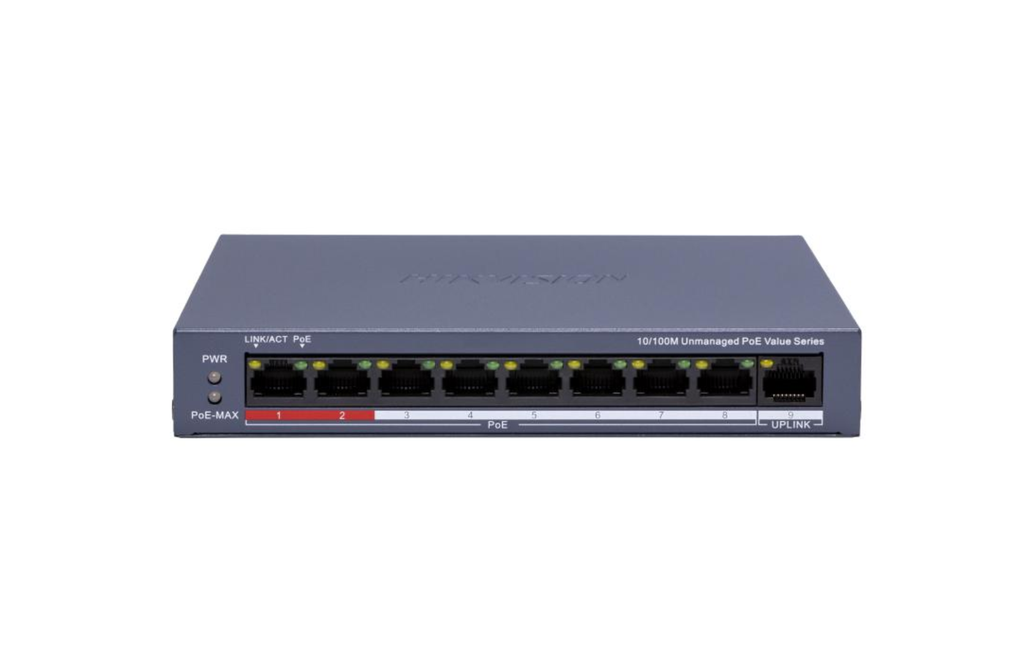

Hikvision DS-3E0109P-E/M 8 Port Fast Ethernet Unmanaged POE Switch

• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
• Datasheet

General

• Shell: Metal material

• Net Weight: 0.35 kg (0.77 lb)

• Gross Weight: 0.89 kg (1.96 lb)

• Dimensions (W × H × D): 170 mm × 27.6 mm × 93.1 mm (6.7'' × 1.1'' × 3.7'')

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)

• Operating Humidity: 5% to 95% (no condensation)

• Relative Humidity: 5% to 95% (no condensation)

• Power Supply: 48 VDC, 1.35 A

• Max. Power Consumption: 65 W

• Power Consumption (Idle): 5 W

• Installation Mode: Desk-Mounted, Wall-Mounted

• Surge Protection: 6 KV

Network Parameters

• Ports: 8 × 10/100 Mbps PoE ports, 1 × 10/100 Mbps RJ45 port

• MAC Address Table: 2 K

• Switching Capacity: 1.8 Gbps

• Packet Forwarding Rate: 1.34 Mpps

• Internal Cache: 1 Mbit

PoE Power Supply

• PoE Standard: IEEE 802.3af / IEEE 802.3at

• PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE Port: Ports 1–8

• Max. Port Power: 30 W

• PoE Power Budget: 60 W

Dialing Function

• Long Range: Ports 1–8 support up to 300 m
  Performance may vary depending on camera model or cable condition.

Approval

• EMC:
  FCC (47 CFR Part 15, Subpart B),
  CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020),
  IC (ICES-003: Issue 7:2020),
  RCM (AS/NZS CISPR 32:2015)

• Safety:
  UL (UL 60950-1),
  CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014, Second Edition),
  CE-LVD (EN 62368-1:2014+A11:2017)

• Chemistry:
  CE-RoHS (2011/65/EU)
  WEEE (2012/19/EU)
  REACH (Regulation (EC) No.1907/2006)
