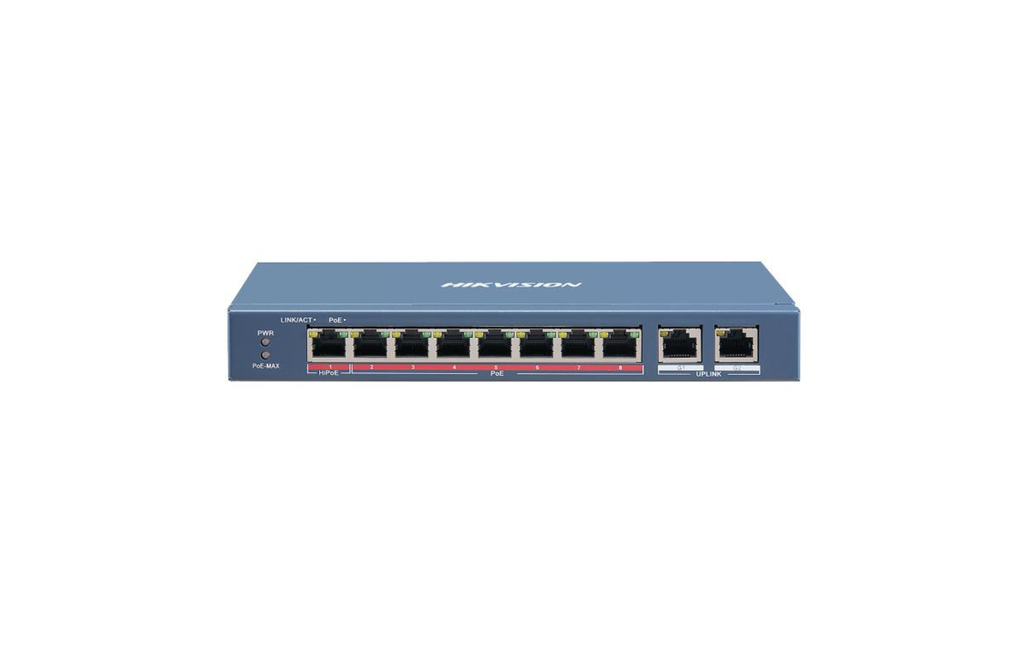

8 Port Fast Ethernet Unmanaged Hi-PoE Switch (8FE PoE + 2GE Uplink, 110W)
Key Features
- 8 × 10/100Mbps PoE ports
- 2 × Gigabit RJ45 uplink ports
- Intelligent PoE management
- Up to 300m long-range PoE
- IEEE 802.3bt Hi-PoE
- Up to 90W on Port 1
- Ports 2–8 support 30W
- 4/8-core adaptive power supply
- 6kV surge protection
- Metal fanless housing
- Datasheet
General
- Metal housing
- Fan-free design
- Net weight: 0.55kg
- Gross weight: 1.22kg
- Dimensions: 217.6 × 27.8 × 103.55 mm
- Installation: wall mount / desk mount
- Operating temp: 0°C to 40°C
- Storage temp: -40°C to 85°C
- Humidity: 5%–95%
- Power supply: 48VDC 2.5A
- Max power: 120W
- Idle power: 10W
- Surge protection: 6kV
Network
Ports
- 8 × 10/100Mbps PoE
- 2 × Gigabit RJ45 uplinks
Performance
- MAC table: 8K
- Switching capacity: 5.6Gbps
- Packet forwarding: 4.17Mpps
- Internal cache: 4Mbits
PoE
- IEEE 802.3af / 802.3at / 802.3bt
- Total PoE budget: 110W
Port Power
-
Port 1: up to 90W Hi-PoE
-
Ports 2–8: up to 30W each
PoE Ports
- Hi-PoE: Port 1
- Standard PoE: Ports 2–8
Pinout
- 1/2 (-)
- 3/6 (+)
- 4/5 (+)
- 7/8 (-)
Smart Functions
Long Range
- Ports 1–8 support up to 300m
- Distance depends on cable and camera quality
VIP Port
- Ports 1–8 support priority forwarding
- VIP traffic is prioritised when bandwidth is limited
Certifications
- FCC
- CE
- IC
- RCM
- UL
- CB
- CE-LVD
- RoHS
