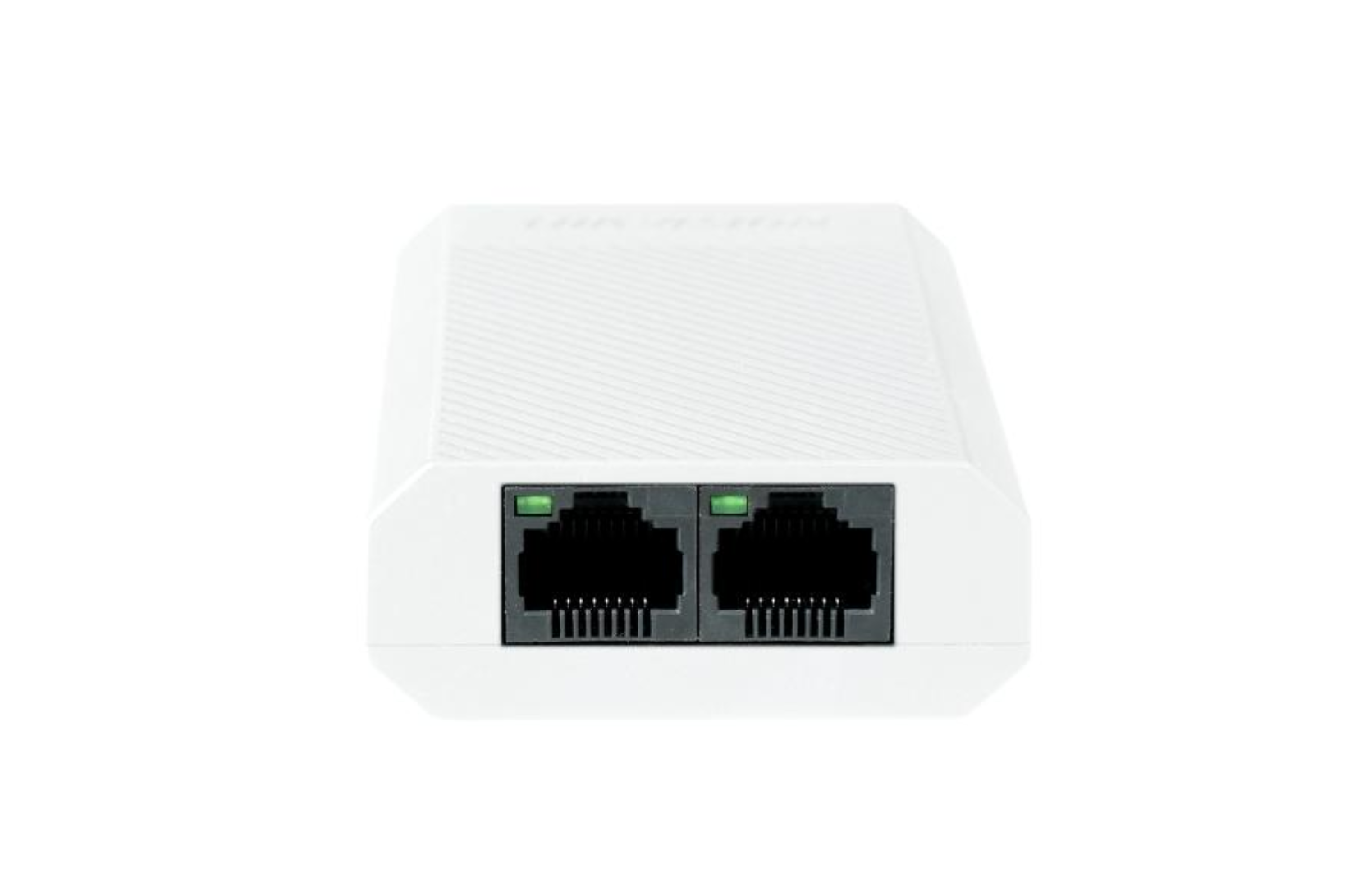

Hikvision DS-3E0503DP-E/R Gigabit PoE Repeater

Gigabit PoE Repeater

Key Features

• 1 × Gigabit PoE IN port and 2 × Gigabit PoE OUT ports
• Compliant with IEEE 802.3af/at standards
• Up to 30 W PoE output power for the whole device
• PoE extension for longer transmission and power supply distance
• Plug and play, no configuration required
• Desktop installation
• Datasheet

General

• Shell: Plastic material, fan-free design
• Net Weight: 0.058 kg (0.128 lb)
• Dimensions (W × H × D): 88.0 mm × 22.0 mm × 58.0 mm (3.46" × 0.87" × 2.28")
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity: 5% to 95% (no condensation)
• Relative Humidity: 5% to 95% (no condensation)
• Max. Power Consumption: 1.9 W
• Power Consumption in Idle: ≤ 1.55 W
• Installation Mode: Desk-Mounted
• Surge Protection: 2 kV

Network Parameters

• Ports: 1 × Gigabit PoE IN port and 2 × Gigabit PoE OUT ports
• MAC Address Table: 2 K
• Switching Capacity: 6 Gbps
• Packet Forwarding Rate: 4.46 Mpps
• Internal Cache: 1 Mbit

PoE Power Supply

• PoE Standard: IEEE 802.3af, IEEE 802.3at
• PoE Ports: Ports 1 to 3
• Max. Port Power: 30 W
• PoE Power Budget: 30 W

Approvals

• EMC: CE-EMC
  EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
• Safety:
  UL (UL 62368-1)
  CB (IEC 62368-1:2014)
  CE-LVD (EN 62368-1:2014+A11:2029)
• Environmental / Chemistry:
  CE-RoHS (2011/65/EU)
  WEEE (2012/19/EU)
  REACH (Regulation (EC) No 1907/2018)
