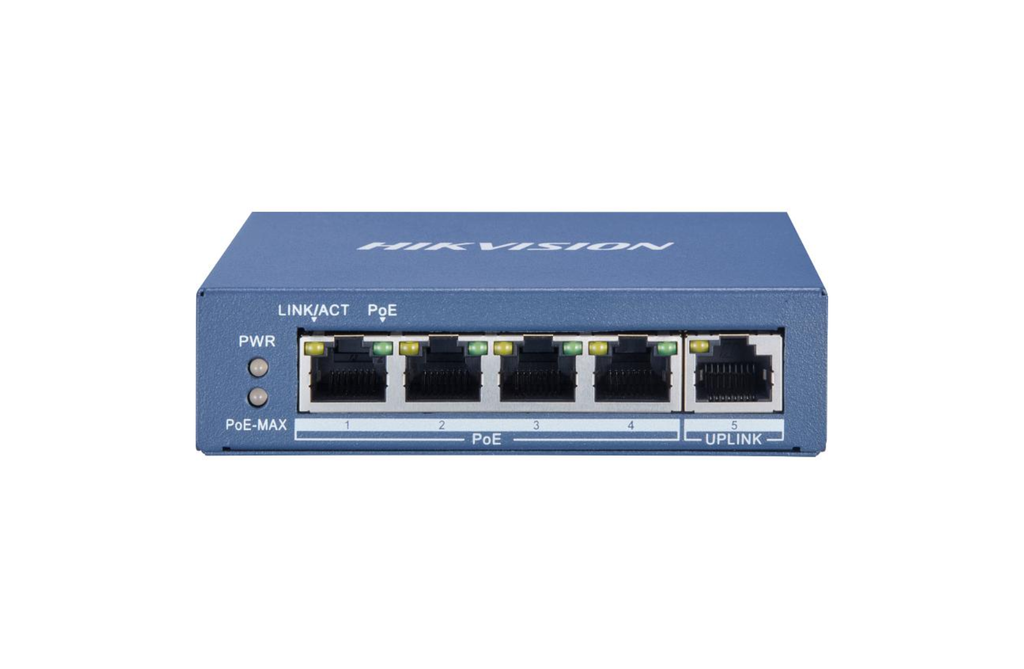

Hikvision DS-3E0505P-E/M 4 Port Gigabit Unmanaged POE Switch

• 4 × Gigabit PoE port, 1 × Gigabit RJ45 port
• IEEE 802.3at/af standard
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
• 6 KV surge protection for PoE ports
• PoE power management
• Gigabit network access
• Wire-speed forwarding and non-blocking design
• Store-and-forward switching
• Solid high-strength metal shell
• Reliable fan-free design
• Datasheet

General

• Shell: Metal material

• Net Weight: 0.265 kg (0.58 lb)

• Gross Weight: 0.759 kg (1.67 lb)

• Dimensions (W × H × D): 105 × 27.6 × 83.1 mm (4.1" × 1.1" × 3.3")

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)

• Operating Humidity: 5% to 95% (non-condensing)

• Relative Humidity: 5% to 95% (non-condensing)

• Power Supply: 48 VDC, 0.8 A

• Max. Power Consumption: 38 W

• Power Consumption (Idle): 3 W

• Installation Mode: Desk-mounted / Wall-mounted

• Surge Protection: 6 KV

Network Parameters

• Ports: 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port

• MAC Address Table: 2 K

• Switching Capacity: 10 Gbps

• Packet Forwarding Rate: 7.44 Mpps

• Internal Cache: 1 Mbit

PoE Power Supply

• PoE Standard: IEEE 802.3af / IEEE 802.3at

• PoE Power Pin: End-span — 1/2(+), 3/6(–)

• PoE Ports: Ports 1 to 4

• Max. Port Power: 30 W

• PoE Power Budget: 35 W

Approval

• EMC:
  FCC (47 CFR Part 15, Subpart B);
  CE-EMC (EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 50130-4:2011 + A1:2014, EN 55035:2017 + A11:2020);
  IC (ICES-003: Issue 7:2020);
  RCM (AS/NZS CISPR 32:2015)

• Safety:
  UL (UL 60950-1);
  CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014, 2nd Edition);
  CE-LVD (EN 62368-1:2014 + A11:2017)

• Chemistry:
  CE-RoHS (2011/65/EU);
  WEEE (2012/19/EU);
  REACH (Regulation (EC) No. 1907/2006)
