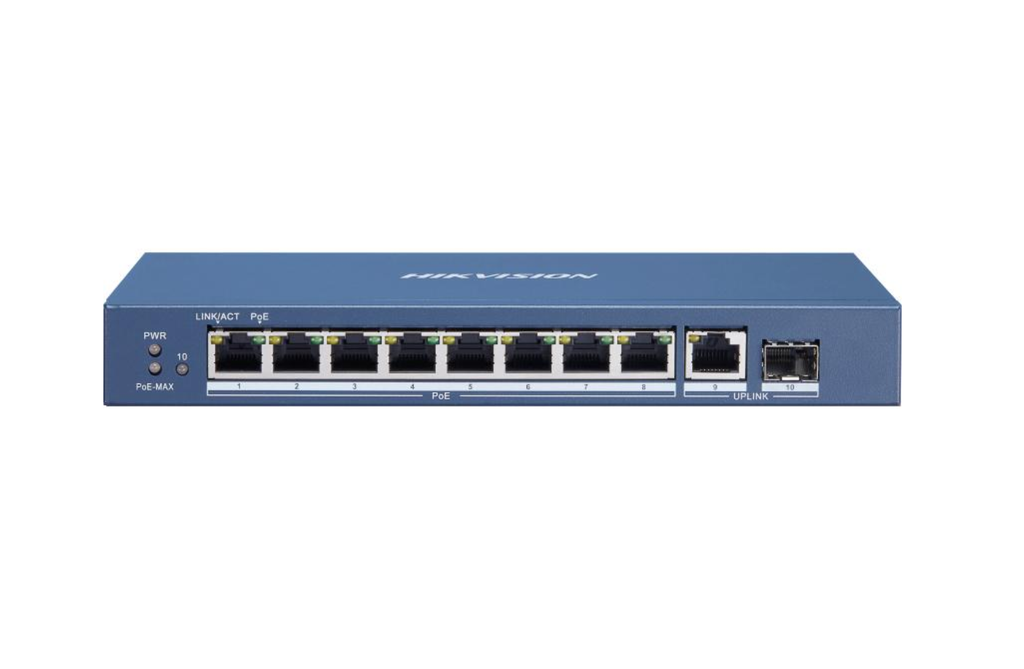

Hikvision DS-3E0510P-E 8 Port Gigabit Unmanaged POE Switch

• Layer 2 network switch designed for video data transmission
• 8 x 10/100/1000 Mbps ethernet port, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
• IEEE 802.3 af & at high PoE power supply
• Store-and-forward switching
• Safe and reliable using 6 KV high surge protection
• Plug and play ensures simplicity and convenience.
• Datasheet

General

• Shell: Metal material, fan-free design

• Net Weight: 0.6 kg (1.32 lb)

• Gross Weight: 1.4 kg (3.09 lb)

• Dimensions (W × H × D): 217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)

• Operating Humidity: 5% to 95% (no condensation)

• Relative Humidity: 5% to 95% (no condensation)

• Power Supply: 48 VDC, 2.5 A

• Max. Power Consumption: 120 W

• Power Consumption (Idle): 10 W

• Installation Mode: Desk-Mounted, Wall-Mounted

• Surge Protection: 6 KV

Network Parameters

• Ports: 8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port

• MAC Address Table: 4 K

• Switching Capacity: 20 Gbps

• Packet Forwarding Rate: 14.88 Mpps

• Internal Cache: 1.5 Mbits

PoE Power Supply

• PoE Standard: IEEE 802.3af / IEEE 802.3at

• PoE Power Pin: End-span: 1/2(+), 3/6(–)

• PoE Port: Ports 1–8

• Max. Port Power: 30 W

• PoE Power Budget: 110 W

Approval

• EMC:
  FCC (47 CFR Part 15, Subpart B),
  CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020),
  IC (ICES-003: Issue 7:2020),
  RCM (AS/NZS CISPR 32:2015)

• Safety:
  UL (UL 60950-1),
  CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014, Second Edition),
  CE-LVD (EN 62368-1:2014+A11:2017)

• Chemistry:
  CE-RoHS (2011/65/EU)
