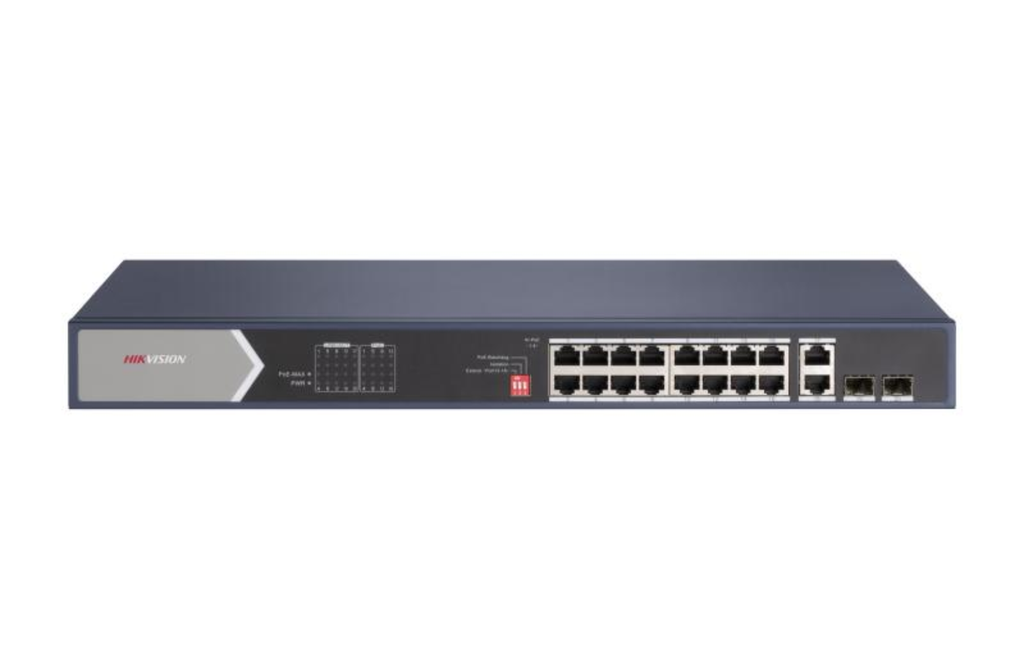

Hikvision DS-3E0520HP-E 16 Port Gigabit Unmanaged POE Switch

• 12 × gigabit PoE port, 4 × gigabit Hi-PoE port, 2 × gigabit RJ45 port, and 2 × gigabit fiber optical port.
• IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Gigabit network access design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Datasheet

General

• Shell: Metal material

• Net Weight: 2.79 kg (6.15 lb)

• Gross Weight: 3.60 kg (7.94 lb)

• Dimensions (W × H × D): 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')

• Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)

• Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)

• Operating Humidity: 5% to 95% (no condensation)

• Relative Humidity: 5% to 95% (no condensation)

• Power Supply: 100–240 VAC, 50/60 Hz, Max. 4 A

• Max. Power Consumption: 250 W

• Power Consumption (Idle): 25 W

• Installation Mode: Rack (equipped with mounting ears)

• Surge Protection: 6 KV

Network Parameters

• Ports: 16 × Gigabit PoE ports, 2 × Gigabit RJ45 ports, 2 × Gigabit fiber optical ports

• MAC Address Table: 8 K

• Switching Capacity: 40 Gbps

• Packet Forwarding Rate: 29.76 Mpps

• Internal Cache: 4.10 Mbits

PoE Power Supply

• PoE Standard: IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt

• PoE Power Pin: 8-pin power: 1/2(–), 3/6(+), 4/5(+), 7/8(–)

• PoE Ports:

  • Hi-PoE: Ports 1–4

  • PoE: Ports 5–16

• Max. Port Power: 90 W

• PoE Power Budget: 225 W

Dialing Function

• Long Range: Ports 13–16 support up to 300 m
  Performance may vary depending on camera model or cable condition.

Port Isolation

• Isolation Mode: Ports 1–16 can be set to port isolation mode for improved network security.
  Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the group.

PoE Watchdog

• Auto Detection: Ports 1–16 automatically detect and restart cameras that do not respond.

Approval

• EMC:
  FCC (47 CFR Part 15, Subpart B),
  CE-EMC (EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020),
  IC (ICES-003: Issue 7:2020),
  RCM (AS/NZS CISPR 32:2015)

• Safety:
  UL (UL 60950-1),
  CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014, Second Edition),
  CE-LVD (EN 62368-1:2014+A11:2017)

• Chemistry:
  CE-RoHS (2011/65/EU)
