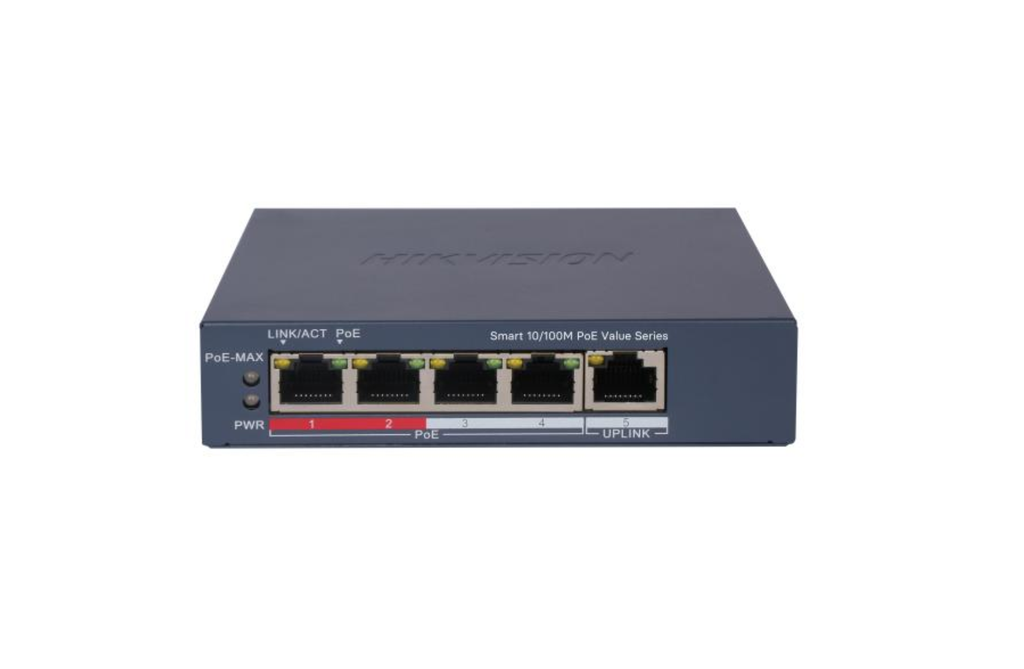

Hikvision DS-3E1105P-EI/M 4 Port Fast Ethernet Smart POE Switch

• 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
• Total PoE Power Budget 45W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP Loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission
• 6 KV Surge Protection
• Datasheet

General

• Shell: Metal material, fan-free design

• Net Weight: 0.26 kg (0.573 lb)

• Gross Weight: 0.75 kg (1.65 lb)

• Dimensions (W × H × D): 121.1 × 27.6 × 83.1 mm (4.77" × 1.09" × 3.27")

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)

• Operating Humidity: 5% to 95% (non-condensing)

• Relative Humidity: 5% to 95% (non-condensing)

• Power Supply: 54 VDC, 0.92 A

• Installation Mode: Desk-mounted / Wall-mounted

• Max. Power Consumption: 50 W

• Power Consumption (Idle): 5 W

• Surge Protection: 6 KV

Network Parameters

• Ports: 4 × 10/100 Mbps PoE ports, 1 × 10/100 Mbps RJ45 port

• MAC Address Table: 2 K

• Switching Capacity: 1.2 Gbps

• Packet Forwarding Rate: 0.89 Mpps

• Internal Cache: 768 Kbits

PoE Power Supply

• PoE Standard: IEEE 802.3af, IEEE 802.3at

• PoE Power Pin: 8-pin — 1/2(–), 3/6(+), 4/5(+), 7/8(–)

• PoE Ports: Ports 1 to 4

• Max. Port Power: 30 W

• PoE Power Budget: 45 W

Software Function

• Port Isolation:

  • Ports 1–4 can be isolated to enhance network security.

  • Ports in the isolation group cannot communicate with each other, but can communicate with ports outside the group.

• PoE Watchdog:

  • Ports 1–4 auto-detect and restart unresponsive cameras.

• Link Aggregation:

  • Aggregates multiple physical ports into one logical port for load balancing, bandwidth expansion, and redundancy.

  • Supports static link aggregation and 1 aggregation group.

• Loop Prevention:

  • Prevents network loops that can disrupt communication.

  • Supports IEEE 802.1D STP and IEEE 802.1w RSTP (disabled by default).

• VLAN:

  • Supports IEEE 802.1Q

  • VLAN ID range: 1–4094

  • Port modes: Trunk / Access

  • Supports up to 32 VLANs

• Long Range:

  • Ports 1–4 support transmission up to 300 m (performance depends on camera and cable quality).

• HPP (Hik-Partner Pro):
  Supports one-click activation and remote management with:

  1. Port rate display

  2. Bandwidth utilization monitoring

  3. PoE power usage display

  4. Topology visualization

  5. Alarm status display

  6. Remote port/device restart

  7. Port long-range enable

  8. Remote firmware upgrade

• System Maintenance:

  • Supports remote management via Hik-Partner Pro

• VIP Port:

  • Ports 1–2 have priority forwarding when bandwidth is limited

Approval

• EMC:
  CE-EMC (EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 50130-4:2011 + A1:2014, EN 55035:2017 + A11:2020)

• Safety:
  CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014, 2nd Edition), CE-LVD (EN 62368-1:2014 + A11:2017)

• Chemistry:
  CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (Regulation (EC) No.1907/2006)
