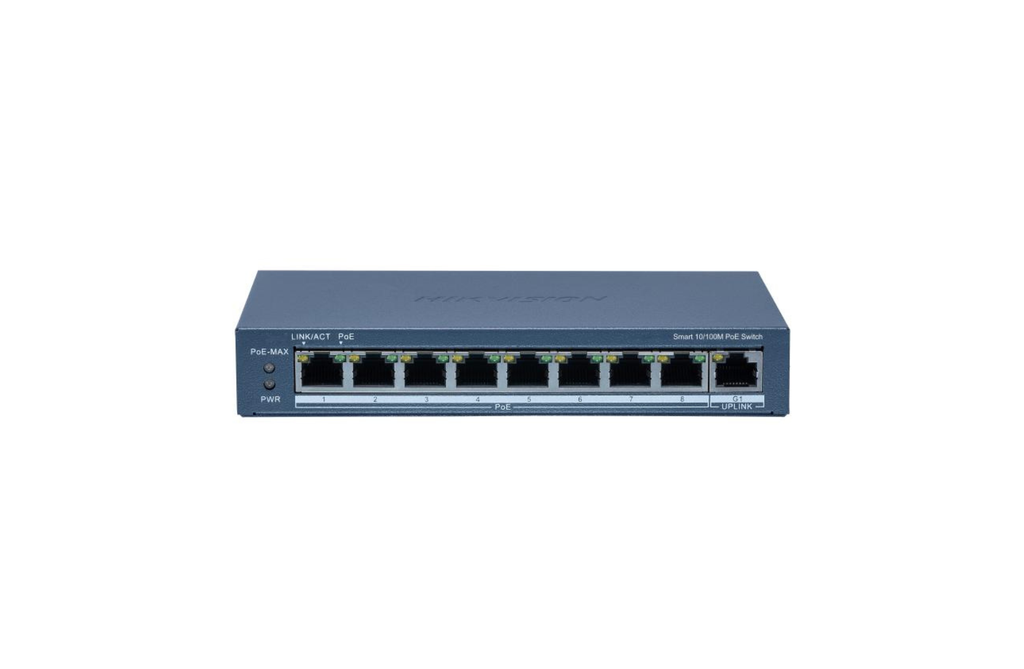

8 Port Fast Ethernet Smart PoE Switch (8FE + 1 Gigabit Uplink, 110W)
Key Features
- 8 × 10/100Mbps PoE ports
- 1 × Gigabit RJ45 uplink
- Total PoE budget: 110W
- Supports 802.1Q VLAN
- PoE watchdog auto reboot
- STP / RSTP loop prevention
- Cable fault detection
- Up to 300m long-range PoE
- 6kV surge protection
- Fanless metal housing
- Datasheet
General
- Metal housing
- Fan-free design
- Net weight: 0.35kg
- Gross weight: 1.11kg
- Dimensions: 170 × 27.6 × 93.1 mm
- Installation: desk mount / wall mount
- Operating temp: 0°C to 40°C
- Storage temp: -40°C to 85°C
- Humidity: 5%–95%
- Power supply: 54VDC 2.22A
- Max power: 120W
- Idle power: 10W
- Surge protection: 6kV
Network
Ports
- 8 × 10/100Mbps PoE
- 1 × Gigabit RJ45 uplink
Performance
- MAC table: 8K
- Internal cache: 4Mbits
- Packet forwarding: 4.17Mpps
- Switching capacity: 5.6Gbps
PoE
- IEEE 802.3af / 802.3at
- PoE on ports 1–8
- Max 30W per port
- Total PoE budget: 110W
Pinout
- 1/2 (-)
- 3/6 (+)
- 4/5 (+)
- 7/8 (-)
Smart Features
Long Range
- Ports 1–8 up to 300m
- Distance depends on cable quality and camera model
Port Isolation
- Ports 1–8 can be isolated
- Cameras cannot talk to each other
- All still communicate to uplink
PoE Watchdog
- Auto detects frozen cameras
- Reboots non-responsive devices
Loop Prevention
VLAN
- 802.1Q VLAN
- VLAN ID: 1–4094
- Supports Access and Trunk
- Up to 4094 VLANs
Remote Management
Hik-Partner Pro
- One-click activation
- Port speed monitoring
- Bandwidth usage
- PoE load monitoring
- Topology view
- Alarm status
- Remote reboot
- Enable long-range remotely
- Remote firmware upgrade
Maintenance
- Web browser management
- DHCP client enabled
- Super IP: 10.180.190.200
- Hik-Central Pro support
- Cable fault detection
- Cable length testing
- Open / short detection
- LLDP device discovery
- Port mirroring
Certifications
- CE
- RCM
- IC
- CB
- RoHS
- WEEE
- REACH
