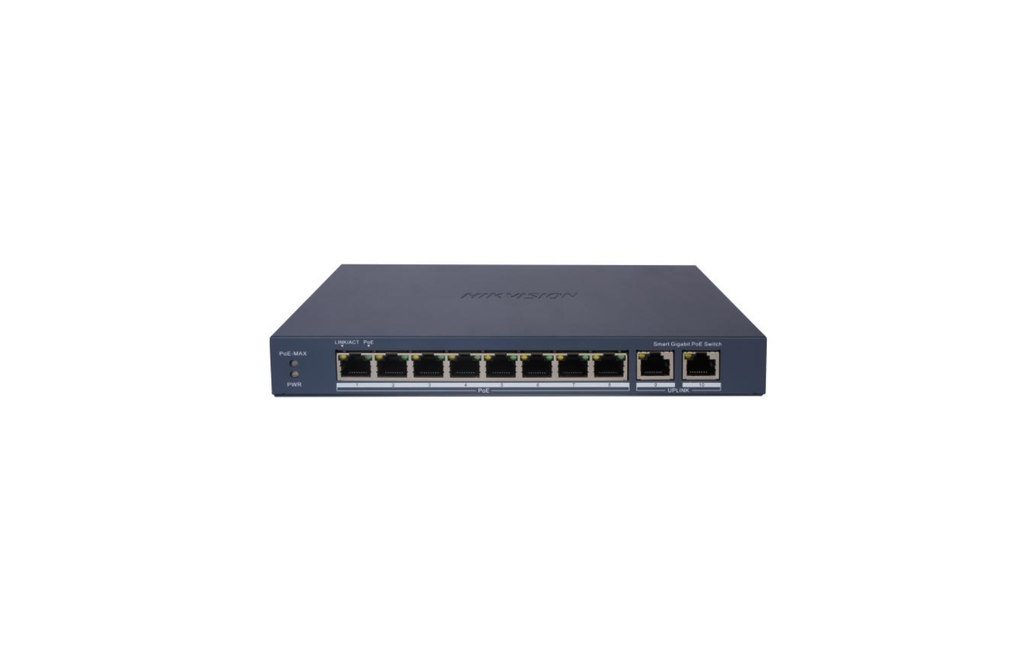

8 Port Gigabit Smart PoE Switch (8GE PoE + 2GE Uplink)
Key Features
- 8 × Gigabit PoE ports
- 2 × Gigabit RJ45 uplink ports
- Total PoE budget: 110W
- Supports 802.1Q VLAN
- PoE watchdog auto reboot
- STP / RSTP loop prevention
- Cable fault detection
- Up to 300m long-range PoE
- 6kV surge protection
- Metal housing
- Desk or wall mount
- Datasheet
General
- Dimensions: 217.6 × 27.6 × 108.5 mm
- Net weight: 0.54kg
- Gross weight: 1.27kg
- Operating temp: 0°C to 40°C
- Storage temp: -40°C to 85°C
- Humidity: 5%–95%
- Power supply: 54VDC 2.22A
- Max power: 120W
- Idle power: 2.7W
Network
- MAC table: 4K
- Switching capacity: 20Gbps
- Packet forwarding: 14.88Mpps
- Cache: 1.5Mbits
PoE
- IEEE 802.3af / 802.3at
- Ports 1–8
- Max 30W per port
- Total 110W
- End-span: 1/2(-), 3/6(+)
Smart Functions
- Long range: up to 300m
- Port isolation
- PoE watchdog
- Static link aggregation
- 3 aggregation groups
- STP / RSTP
- VLAN 1–4094
- Access / Trunk
- Max 32 VLANs
Remote Management
- Web management
- Hik-Partner Pro
- Hik-Central Pro
- DHCP client
- Super IP: 10.180.190.200
- Cable diagnostics
- LLDP
- Port mirroring
Certifications
- CE
- CB
- CE-LVD
- RoHS
- WEEE
- REACH
