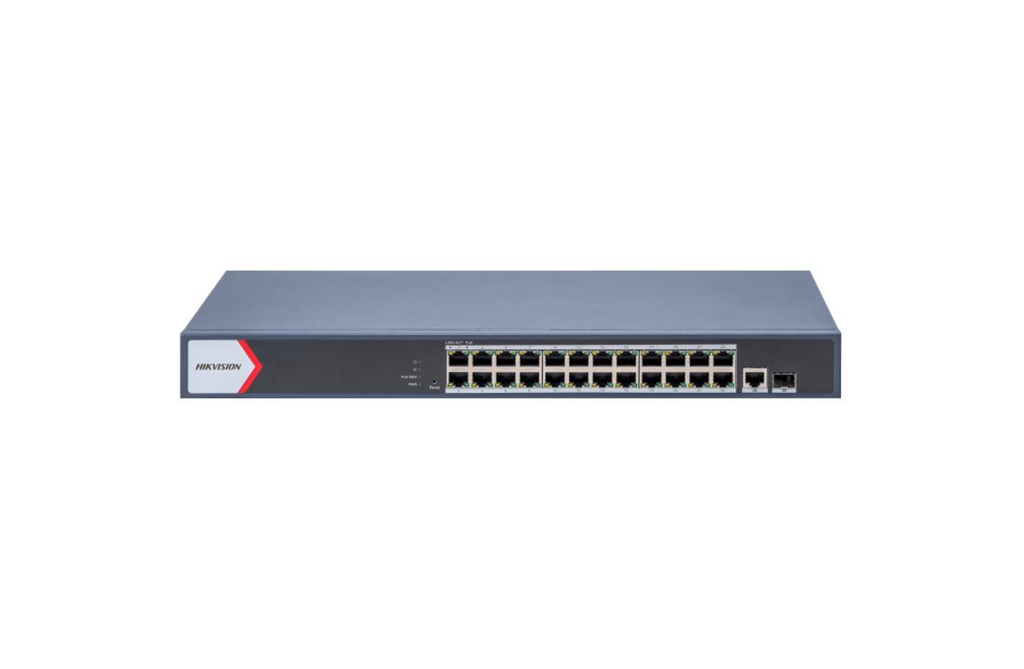

24 Port Gigabit Smart PoE Switch (24GE PoE + 1GE RJ45 + 1GE SFP, 370W)
Key Features
- 24 × Gigabit PoE ports
- 1 × Gigabit RJ45 uplink
- 1 × Gigabit fiber optical uplink
- Total PoE power budget: 370W
- Supports IEEE 802.1Q VLAN
- Energy saving mode with custom schedules
- Supports IEEE 802.3az EEE
- STP / RSTP loop prevention
- Cable fault detection
- DHCP snooping
- 6kV surge protection
- Rack mount metal chassis
- Datasheet
General
- Metal housing
- Rack mount with mounting ears
- Net weight: 3.1kg
- Gross weight: 3.3kg
- Dimensions: 440 × 220.8 × 44 mm
- Operating temp: 0°C to 45°C
- Storage temp: -40°C to 85°C
- Humidity: 5%–95%
- Power supply: 100–240VAC, 50/60Hz
- Max power: 400W
- Idle power: 30W
- Surge protection: 6kV
Network
Ports
- 24 × Gigabit PoE
- 1 × Gigabit RJ45
- 1 × Gigabit fiber optical
Performance
- MAC table: 8K
- Switching capacity: 56Gbps
- Packet forwarding: 41.66Mpps
- Internal cache: 4.1Mbits
PoE
- IEEE 802.3af / 802.3at
- Ports 1–24
- Max 30W per port
- Total budget: 370W
Smart Features
Long Range
- Ports 1–24 up to 300m
- Depends on cable and camera quality
PoE Watchdog
- Auto detects and reboots frozen cameras
Port Isolation
- Ports 1–26 isolation supported
- Improves security while keeping uplinks active
Link Aggregation
- Static aggregation supported
- Up to 8 groups
QoS
- Port-based priority
- SP / WRR scheduling
Loop Prevention
- IEEE 802.1D STP
- IEEE 802.1w RSTP
VLAN
- IEEE 802.1Q
- VLAN ID 1–4094
- Access / Trunk
- Up to 32 VLANs
DHCP Snooping
- Blocks rogue DHCP servers
- Trusted port filtering
- Disabled by default
Remote Management
Hik-Partner Pro
- One-click activation
- Port speed monitoring
- Bandwidth monitoring
- PoE usage display
- Topology view
- Alarm status
- Remote reboot
- Enable long-range remotely
- Firmware upgrades
Maintenance
- Web browser management
- DHCP client enabled
- Super IP: 10.180.190.200
- Hik-Central Pro
- Hik-Partner Pro cloud management
- Cable diagnostics
- Cable length testing
- LLDP discovery
- Port mirroring
Certifications
- CE
- UL
- CB
- CE-LVD
- RoHS
- WEEE
- REACH
