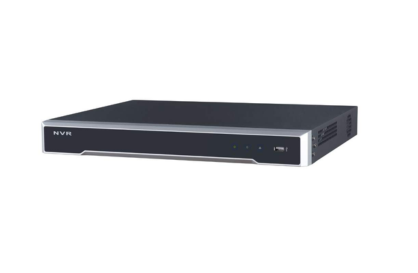

Hikvision DS-7604NI-I1-4P 4ch PoE CCTV NVR 4K

4-ch 1U 4 PoE 4K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Up to 4-ch IP camera inputs
• 2-ch@12 MP (20fps)/4-ch@8 MP (25fps)
• 4-ch synchronous playback at up to 8MP resolution




Video and Audio

• IP Video Input

  • 4 channels
  • Up to 12 MP resolution

• HDMI Output

  • 4K (3840 × 2160) @ 60Hz
  • 4K (3840 × 2160) @ 30Hz
  • 2K (2560 × 1440) @ 60Hz
  • 1920 × 1080 @ 60Hz
  • 1600 × 1200 @ 60Hz
  • 1280 × 1024 @ 60Hz
  • 1280 × 720 @ 60Hz
  • 1024 × 768 @ 60Hz

• VGA Output

  • 1920 × 1080 @ 60Hz
  • 1280 × 1024 @ 60Hz
  • 1280 × 720 @ 60Hz
  • 1024 × 768 @ 60Hz

• CVBS Output

  • 1 channel, BNC (1.0 Vp-p, 75 Ω)
  • Resolution: PAL: 704 × 576, NTSC: 704 × 480

• Incoming Bandwidth

  • 40 Mbps

Audio

• Audio Output

  • 1 channel, RCA (Linear, 1 KΩ)

• Two-Way Audio

  • 1 channel, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding Format

  • H.265/H.265+/H.264/H.264+/MPEG4

• Decoding Capability

  • 2 channels @ 12 MP (20fps)
  • 4 channels @ 8 MP (25fps)
  • 8 channels @ 4 MP (30fps)

• Synchronous Playback

  • 4 channels

• Recording Resolution

  • 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Network

• Network Protocols

  • TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

• Network Interface

  • 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE Interface

  • 4 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

Auxiliary Interface

• SATA

  • 1 SATA interface
  • Up to 8 TB capacity for each HDD

• USB Interface

  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 3.0

• Alarm In/Out

  • 4/1

General

• Power Supply

  • 48 VDC, 1.8 A

• Consumption

  • ≤ 15 W

• Working Temperature

  • -10 to +55º C (+14 to +131º F)

• Working Humidity

  • 10 to 90 %

• Dimensions (W × D × H)

  • 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")

• Weight

  • ≤ 1.18 Kg (2.6 lb)
