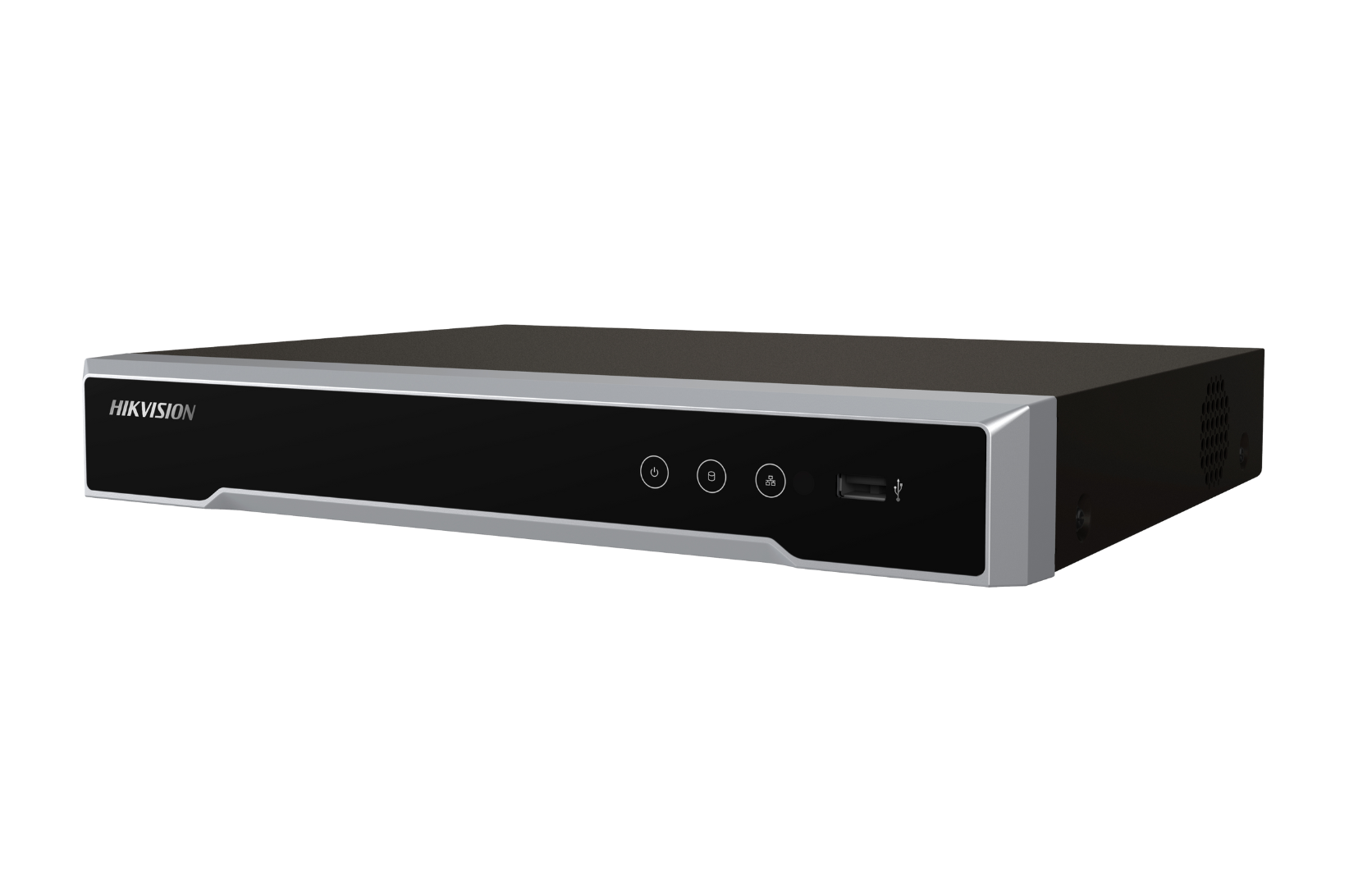

Hikvision DS-7604NI-M1/4P 4-ch 1U 4K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Up to 4-ch IP camera inputs
• Up to 4-ch@8 MP decoding capacity
• Up to 40 Mbps incoming bandwidth
• Datasheet

Camera

• Supports 4 camera inputs, up to 32MP resolution

• Handles 40 Mbps incoming and 80 Mbps outgoing bandwidth

• Video output options: 8K, 4K, 2K, or Full HD (1080p)

• VGA output also supports 1080p

• Independent HDMI and VGA display outputs

• No CVBS output available

• Audio output: 1 channel (RCA)

• Two-way audio: 1 channel (RCA)

• Dual-stream recording supported

• Works with H.265+/H.265/H.264+/H.264 formats

• Playback capacity: 4-channel synchronous playback

• Recording resolutions from 32MP down to QCIF

• Audio formats supported: G.711, G.722, G.726, AAC, MP2L2

Networking

• Remote connections: up to 128 users

• Supports standard protocols (TCP/IP, DHCP, DNS, RTSP, HTTP/HTTPS, etc.)

• 1 Gigabit Ethernet port (RJ-45)

PoE (Power over Ethernet)

• 4 PoE ports (RJ-45, 10/100 Mbps)

• Power budget: ≤ 60W

• Standard: IEEE 802.3 af/at

Storage & Interfaces

• 1 SATA slot (up to 16TB HDD)

• Alarm I/O: 4 in / 1 out

• USB ports: 2 × USB 2.0 (1 front, 1 rear)

General Specs

• Power supply: 48V DC, 1.875A

• Power use: ≤ 15W (without HDD and PoE off)

• Operating temperature: -10°C to 50°C

• Humidity: 10%–90%

• Size: 320 × 240 × 48 mm

• Weight: ≤ 1.2 kg (without HDD)

Certifications

• CE certified

• Meets EN 55032, EN 61000, EN 50130-4, EN 55035 standards
