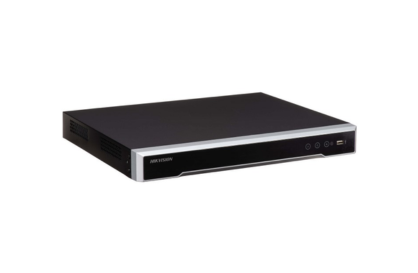

Hikvision DS-7608NI-M2/8P 8-ch 1U 8 PoE 8K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Up to 8-ch IP camera inputs
• Up to 8-ch@8 MP decoding capacity
• Up to 128 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected
• Datasheet

Video & Audio

• IP Video Input: 8 channels (supports up to 32 MP resolution)

  • Note: With Ultra HD mode enabled, supports up to 8 channels of 32 MP/24 MP inputs

• Incoming Bandwidth: 128 Mbps

• Outgoing Bandwidth: 256 Mbps

• HDMI Output:

  • 8K (7680 × 4320) @ 30 Hz

  • 4K (3840 × 2160) @ 60 Hz / 30 Hz

  • 2K (2560 × 1440) @ 60 Hz

  • 1920 × 1080 @ 60 Hz

• VGA Output: 1920 × 1080 @ 60 Hz

• Video Output Mode: Independent HDMI and VGA outputs

• CVBS Output: 1 channel, BNC, PAL (704 × 576), NTSC (704 × 480)

• Audio Output: 1 channel, RCA (Linear, 1 KΩ)

• Two-Way Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ, using audio input)

Decoding & Recording

• Dual-Stream Recording: Supported

• Decoding Format: H.265+/H.265/H.264+/H.264

• Decoding Capability:

  • 2 channels @ 32 MP (30 fps) + 2 channels @ 8 MP (30 fps)

  • OR 10 channels @ 8 MP (30 fps)

  • OR 20 channels @ 4 MP (30 fps)

  • OR 40 channels @ 1080p (30 fps)

• Synchronous Playback: 8 channels

• Recording Resolution: 32 MP, 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

• Stream Type: Video only or Video & Audio

• Audio Compression: G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2

Network

• Remote Connections: Up to 128

• Supported Protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (v2.2), OTAP

• Network Interface: 1 × RJ-45 (10/100/1000 Mbps, self-adaptive)

• Camera Access Protocols: ONVIF (v2.5), RTSP

PoE

• Interfaces: 8 × RJ-45 (10/100 Mbps, self-adaptive)

• Power Budget: ≤ 120 W

• Standard: IEEE 802.3 af/at

Storage & Interfaces

• SATA: 2 SATA interfaces (up to 16 TB each)

• Alarm I/O: 4 in / 1 out

• USB: Front: 1 × USB 2.0, Rear: 1 × USB 3.0

General

• Power Supply: 100 to 240 VAC, 50/60 Hz

• Power Consumption: ≤ 15 W (without HDD and PoE off)

• Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)

• Humidity: 10% to 90% (non-condensing)

• Dimensions: 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

• Weight: ≤ 3 kg (without HDD)

Certification

• FCC: Part 15 Subpart B, ANSI C63.4-2014

• CE: EN 55032:2015+A1:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
