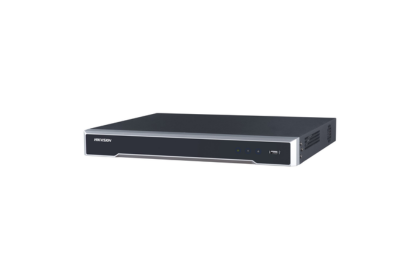

Hikvision DS-7616NI-M2/16P 16CH Ultra Series NVR

• H.265+/H.265/H.264+/H.264 video formats
• Up to 16-ch IP camera inputs
• Up to 16-ch@4MP decoding capacity
• Up to 256 Mbps incoming bandwidth
• Up to 8-ch IP speakers can be connected
• Datasheet

Video & Audio

• Supports up to 16 camera channels with a maximum resolution of 32 MP

• In ultra HD mode, it can handle up to 8 cameras at 32 MP/24 MP

• Incoming and outgoing bandwidth: 256 Mbps

• HDMI output supports resolutions up to 8K (30Hz) and 4K (60Hz/30Hz), plus 2K and 1080p

• VGA output: 1080p/60Hz

• Independent HDMI/VGA output available

• CVBS output: 1 channel BNC, PAL 704×576 / NTSC 704×480

• Audio output: 1 channel RCA

• Two-way audio supported (RCA input/output)

Decoding & Recording

• Supports video compression: H.265+/H.265/H.264+/H.264

• Recording resolution options from 32 MP down to QCIF

• Synchronous playback for up to 16 channels

• Decoding capacity:

  • 2 channels @ 32 MP (30 fps) + 2 channels @ 8 MP (30 fps)

  • 10 channels @ 8 MP (30 fps)

  • 20 channels @ 4 MP (30 fps)

  • 40 channels @ 1080p (30 fps)

• Dual-stream recording supported

• Stream types: Video only or Video & Audio

• Audio compression formats: G.711, G.722, G.726, AAC, MP2L2

Network

• Remote access for up to 128 connections

• Supports many protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTP/HTTPS, ONVIF, OTAP

• Network port: 1 × RJ-45 Gigabit Ethernet

• Camera access via ONVIF (v2.5) or RTSP

PoE (Power over Ethernet)

• 16 × RJ-45 ports, 10/100 Mbps self-adaptive

• Total PoE budget: ≤ 200 W

• Complies with IEEE 802.3 af/at

Storage & Interfaces

• 2 SATA slots, up to 16 TB per drive

• Alarm input/output: 4 in / 1 out

• USB ports:

  • Front: 1 × USB 2.0

  • Rear: 1 × USB 3.0

General

• Power supply: 100–240 VAC, 50/60 Hz

• Power consumption: ≤ 15 W (without HDD, PoE off)

• Operating temperature: -10 °C to 55 °C

• Humidity: 10% to 90%

• Size: 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

• Weight: ≤ 3 kg (without HDD)

Certifications

• FCC: Part 15 Subpart B, ANSI C63.4-2014

• CE: EN 55032, EN61000-3-2, EN61000-3-3, EN 50130-4, EN 55035
