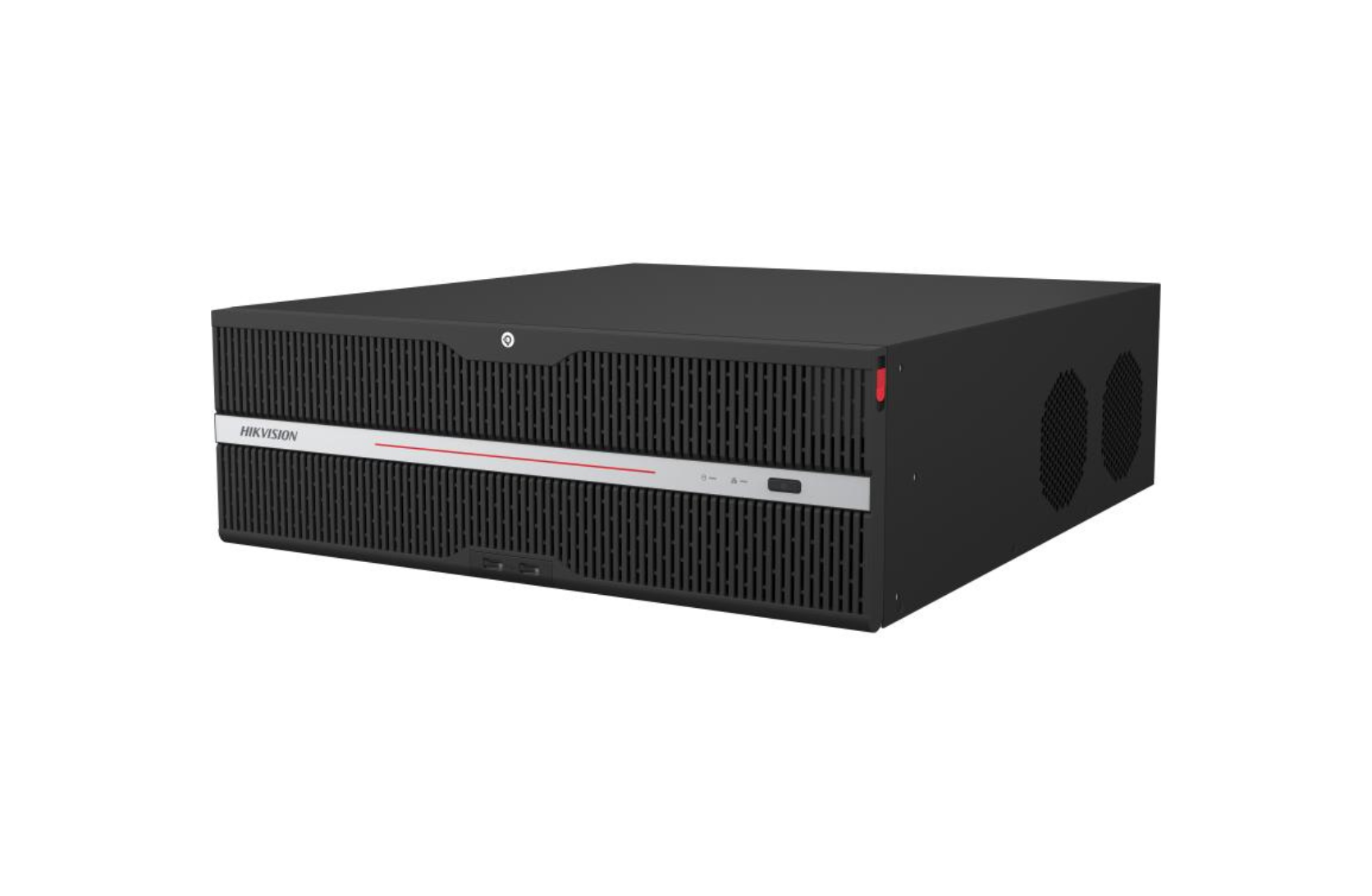

Hikvision DS-96128NXI-S16R S Series NVR with AcuSense

S Series 128CH NVR with AcuSense (16 SATA, Redundant PSU)

Video Formats

• H.265+
• H.265
• H.264+
• H.264

Key Features

• 128-channel enterprise NVR
• Up to 128 IP camera inputs
• Up to 32-channel 1080p decoding
• Facial recognition, perimeter protection, video structuralization, AcuSearch
• Supports up to 8 IP speakers
• RAID 0 / 1 / 5 / 6 / 10
• N+M hot spare supported
• Up to 8K HDMI output
• Redundant power supply
• 16 SATA HDD bays
• Datasheet

---

Intelligent Analytics

AI by NVR

• Facial recognition
• Perimeter protection
• Video structuralization

AI by Camera

• Facial recognition
• Perimeter protection
• Video structuralization
• AcuSearch
• Motion Detection 2.0
• ANPR
• People counting
• VCA

---

AcuSearch

By Camera

• All 128 channels supported
• Up to 345,600 targets/day
• Requires camera-side AcuSearch enabled

---

Perimeter Protection

By NVR

• Simultaneous mode: 8ch @ 2MP
• Independent mode: 4ch @ 2MP

By Camera

• All channels

---

Video Structuralization

By NVR

• Simultaneous mode: 8ch @ 2MP
• Independent mode: 4ch @ 2MP

---

Facial Recognition

Functions

• Face comparison
• Human face capture
• Face search

Face Library

• Up to 64 face libraries
• Up to 300,000 face images
• Up to 10GB total capacity

Face Comparison

• 16-channel
• 24 pictures per second

Performance

• Simultaneous: 8ch @ 2MP
• Independent: 4ch @ 2MP

---

Video & Audio

Video Input

• 128 IP channels
• Up to 32MP resolution

Bandwidth

• Incoming: 1280 Mbps
• Outgoing: 1024 Mbps
• RAID mode incoming: 640 Mbps
• RAID mode outgoing: 512 Mbps

Video Outputs

• HDMI 1: up to 4K
• HDMI 2: up to 4K
• HDMI 3: up to 8K
• HDMI 4: 1080p
• VGA 1: 1080p
• VGA 2: 1080p
• HDMI input: 1
• HDMI loopback: 1

Audio

• 2 RCA outputs
• 1 RCA two-way audio

---

Recording & Playback

Decoding

• 2ch @ 32MP
• 2ch @ 24MP
• 4ch @ 16MP
• 8ch @ 8MP
• 16ch @ 4MP
• 32ch @ 1080p

Playback

• 16-channel synchronous playback

Recording Resolution

• Up to 32MP
• Supports all common resolutions

---

Network

Remote Users

• 256

LAN

• 4 × 2.5GbE RJ45
• 2 × 1Gb SFP optical ports

Protocols

• ONVIF
• ISAPI
• RTSP
• HTTPS
• IPv4 / IPv6
• SNMP
• iSCSI
• NFS

---

Storage & RAID

Storage

• 16 × SATA bays
• 1 × eSATA
• Up to 20TB per HDD

RAID

• RAID 0 / 1 / 5 / 6 / 10
• N+M hot spare

---

Interfaces

Alarm

• 32 in / 16 out

Serial

• 1 × RS-232
• 2 × RS-485

USB

• Front: 2 × USB 2.0
• Rear: 4 × USB 3.0

---

General

Power

• 100–240VAC
• Redundant PSU
• ≤ 100W without HDD

Operating Temperature

• -10°C to 55°C

Humidity

• 10% to 90%

Dimensions

• 442 × 497 × 146 mm

Weight

• ≤ 12 kg without HDD

---

Certifications

• CE
• IC
• CB
• RoHS
• REACH
• WEEE
• RCM
• UKCA
• LOA
