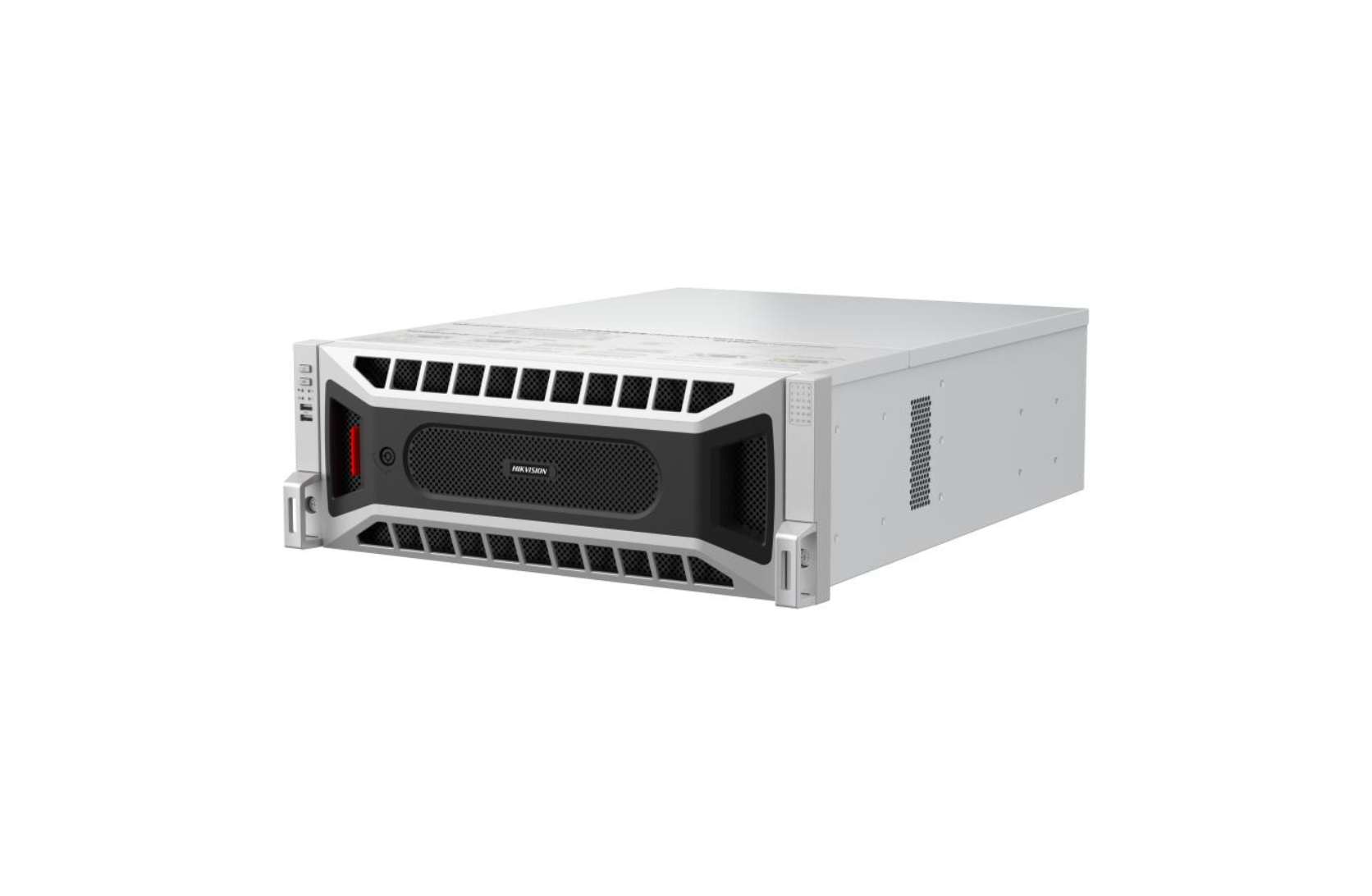

S Series 256CH NVR with AcuSense (24 SATA, Redundant PSU)
Video Formats
- H.265+
- H.265
- H.264+
- H.264
Key Features
- 256-channel enterprise NVR
- Supports up to 256 IP camera inputs
- Up to 32-channel 1080p decoding
- Built-in AcuSense analytics for facial recognition, perimeter protection, video structuralization, and AcuSearch
- Supports up to 8 IP speakers
- RAID 0 / 1 / 5 / 6 / 10
- N+M hot spare support for higher redundancy
- HDMI output up to 8K
- Redundant power supply
- 24 SATA HDD bays
Intelligent Analytics
AI by NVR
- Facial recognition
- Perimeter protection
- Video structuralization
AI by Camera
- Facial recognition
- Perimeter protection
- Video structuralization
- AcuSearch
- Motion Detection 2.0
- ANPR
- People counting
- VCA
AcuSearch
By Camera
- All 256 channels
- Up to 345,600 targets/day
- Requires AcuSearch-enabled cameras
Perimeter Protection
By NVR
- Simultaneous mode: 8ch @ 2MP
- Independent mode: 4ch @ 2MP
By Camera
Video Structuralization
By NVR
- Simultaneous mode: 8ch @ 2MP
- Independent mode: 4ch @ 2MP
Facial Recognition
Functions
- Face comparison
- Human face capture
- Face search
Face Library
- Up to 64 libraries
- Up to 300,000 face images
- Up to 10GB total capacity
Face Comparison
- 16-channel
- 24 pictures per second
Performance
- Simultaneous: 8ch @ 2MP
- Independent: 4ch @ 2MP
Video & Audio
Video Input
- 256 IP channels
- Up to 32MP resolution
Bandwidth
- Incoming: 1280 Mbps
- Outgoing: 1024 Mbps
- RAID mode incoming: 640 Mbps
- RAID mode outgoing: 512 Mbps
Video Outputs
- HDMI 1: up to 4K
- HDMI 2: up to 4K
- HDMI 3: up to 8K
- HDMI 4: 1080p
- VGA 1: 1080p
- VGA 2: 1080p
- HDMI input: 1
- HDMI loopback: 1
Audio
- 2 RCA outputs
- 1 RCA two-way audio
Recording & Playback
Decoding
- 2ch @ 32MP
- 2ch @ 24MP
- 4ch @ 16MP
- 8ch @ 8MP
- 16ch @ 4MP
- 32ch @ 1080p
Playback
- 16-channel synchronous playback
Recording Resolution
- Up to 32MP
- Supports all common resolutions down to CIF
Network
Remote Users
LAN
- 4 × 2.5GbE RJ45
- 2 × 1Gb SFP optical ports
Protocols
- ONVIF
- ISAPI
- RTSP
- HTTPS
- IPv4 / IPv6
- SNMP
- iSCSI
- NFS
Storage & RAID
Drive Bays
- 24 × SATA
- 1 × eSATA
- Up to 20TB per HDD
RAID
- RAID 0 / 1 / 5 / 6 / 10
- N+M hot spare supported
Interfaces
Alarm
Serial
USB
- Front: 2 × USB 2.0
- Rear: 4 × USB 3.0
General
Power
- 100–240VAC
- Redundant PSU
- ≤ 100W without HDD
Operating Temperature
Humidity
Dimensions
Weight
Certifications
- CE
- IC
- CB
- RoHS
- REACH
- WEEE
- RCM
- UKCA
- LOA
