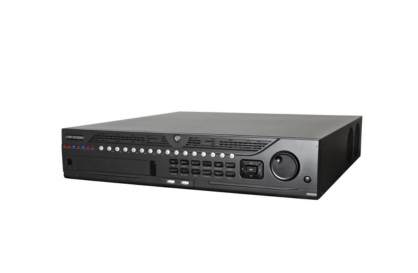

Hikvision DS-9664NI-I16 64ch NVR, 320Mbps (200Mbps w RAID enabled) 4K, 2RU, 16 Bay 4TB Included

64-ch 3U 4K NVR

• Up to 64 channel IP cameras can be connected
• Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
• 2 HDMI (different source) and 2 VGA (different source) interfaces
• 16 HDD can be used for continuous video recording
• Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
• 4TB Included





Video and Audio

• IP Video Input

  • 64 channels
  • Up to 12 MP resolution
  • 32 MP and 24 MP resolution is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, enabling ultra HD resolution mode reduces IP video input to 24 channels.

• Incoming Bandwidth

  • 320 Mbps

• Outgoing Bandwidth

  • 256 Mbps

• Incoming Bandwidth (RAID Mode)

  • 200 Mbps

• Outgoing Bandwidth (RAID Mode)

  • 200 Mbps

• HDMI 1 Output

  • Resolutions: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• HDMI 2 Output

  • Resolutions: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• VGA 1 Output

  • Resolutions: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• VGA 2 Output

  • Resolutions: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Video Output Mode

  • HDMI 1 and VGA 1 provide simultaneous video output and work as the main output
  • HDMI 2 and VGA 2 provide simultaneous video output and work as the auxiliary output

• CVBS Output

  • 1 channel, BNC (1.0 Vp-p, 75 Ω)
  • Resolution: PAL: 704 × 576, NTSC: 704 × 480

• Audio Input

  • 1 channel, RCA (2.0 Vp-p, 1 KΩ)

• Audio Output

  • 2 channels, RCA (Linear, 1 KΩ)

• Two-Way Audio

  • 1 channel, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding Format

  • H.265, H.265+, H.264, H.264+, MPEG4

• Recording Resolution

  • 32 MP, 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
  • 32 MP and 24 MP resolution is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, enabling ultra HD resolution mode reduces IP video input to 24 channels.

• Synchronous Playback

  • 16 channels

• Decoding Capability

  • 1 channel @ 32 MP (30 fps)
  • 2 channels @ 12 MP (20 fps)
  • 4 channels @ 8 MP (25 fps)
  • 8 channels @ 4 MP (30 fps)
  • 16 channels @ 1080p (30 fps)

• Dual-Stream Recording

  • Supported

• Stream Type

  • Video, Video & Audio

• Audio Compression

  • G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2, PCM

Network

• Remote Connection

  • 128

• Network Protocols

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface

  • 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

RAID

• RAID Type
  • RAID0, RAID1, RAID5, RAID6, RAID10 (at least 4 TB for each HDD)

Auxiliary Interface

• Serial Interface

  • 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard

• SATA

  • 16 SATA interfaces supporting hot-plug

• ESATA

  • 1 eSATA interface

• Capacity

  • Up to 10 TB for each disk

• Alarm In/Out

  • 16/8

• USB Interface

  • Front panel: 2 × USB 2.0
  • Rear panel: 1 × USB 3.0

General

• Power Supply

  • 100 to 240 VAC, 50 to 60 Hz

• Consumption

  • ≤ 45 W

• Working Temperature

  • -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity

  • 10% to 90%

• Chassis

  • 3U chassis

• Dimensions (W × D × H)

  • 445 × 496 × 146 mm (17.5" × 19.5" × 5.7")

• Weight

  • ≤ 12.5 kg (27.6 lb)

Certification

• FCC

  • Part 15 Subpart B, ANSI C63.4-2014

• CE

  • EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
