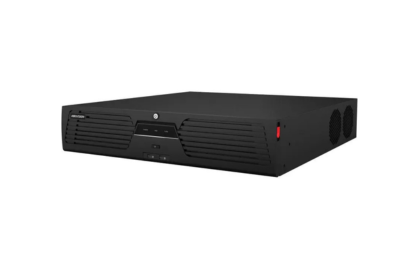

Hikvision DS-9664NI-M8 64ch M-Series NVR, 400Mbps, 8K, VGA/HDMI, 8 Bay, 3RU

64-ch 2U 4K NVR

• Up to 64-ch IP camera inputs
• Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
• Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
• 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
• Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
• Advanced streaming technology enables smooth live view in poor network conditions
• Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

Video And Audio

• IP Video Input

  • 64 channels

• Incoming Bandwidth

  • 400 Mbps

• Outgoing Bandwidth

  • 400 Mbps

HDMI 1 Output

• Supported Resolutions
  • 8K (7680 × 4320)/30 Hz
  • 4K (3840 × 2160)/60 Hz
  • 4K (3840 × 2160)/30 Hz
  • 2K (2560 × 1440)/60 Hz
  • 1920 × 1080/60 Hz

HDMI 2 Output

• Supported Resolutions
  • 4K (3840 × 2160)/60 Hz
  • 4K (3840 × 2160)/30 Hz
  • 2K (2560 × 1440)/60 Hz
  • 1920 × 1080/60 Hz
  • Note: When HDMI 1 output resolution is 8K, HDMI 2 output is limited to a maximum of 1080p.

VGA Outputs

• VGA 1 Output

  • 1920 × 1080/60 Hz

• VGA 2 Output

  • 1920 × 1080/60 Hz

Video Output Mode

• Main Output

  • HDMI 1 and VGA 1 provide simultaneous video output

• Auxiliary Output

  • HDMI 2 and VGA 2 provide simultaneous video output

CVBS Output

• Output
  • 1 channel, BNC (1.0 Vp-p, 75 Ω)
  • Resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

• Channels
  • 2 channels, RCA (Linear, 1 KΩ)

Two-Way Audio

• Channels
  • 1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format

  • H.265+/H.265/H.264+/H.264

• Recording Resolution

  • 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous Playback

  • Up to 16 channels

• Decoding Capability

  • 2 channels @ 32 MP (30 fps) + 2 channels @ 8 MP (30 fps)
  • 10 channels @ 8 MP (30 fps)
  • 20 channels @ 4 MP (30 fps)
  • 40 channels @ 1080p (30 fps)

Audio Compression

• Supported Formats
  • G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

• Network Protocol

  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, UDP, RTP, RTCP

• Network Interface

  • 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID

• RAID Type
  • RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

• Serial Interface

  • 1 × RS-485 (full-duplex)
  • 1 × RS-232

• SATA

  • 8 SATA interfaces supporting hot-plug

• ESATA

  • 1 eSATA interface

Storage Capacity

• Per Disk
  • Up to 16 TB capacity for each disk

Alarm In/Out

• Inputs/Outputs
  • 16/9

USB Interface

• Front Panel

  • 2 × USB 2.0

• Rear Panel

  • 2 × USB 3.0

Power Supply

• Input

  • 100 to 240 VAC, 50 to 60 Hz

• Consumption

  • ≤ 50 W (without HDD)

Environmental Specifications

• Operating Temperature

  • -10 °C to 55 °C (14 °F to 131 °F)

• Operating Humidity

  • 10% to 90%

Chassis

• Type

  • 2U chassis

• Dimensions (W × D × H)

  • 445 × 465 × 93 mm (17.5" × 18.3" × 3.7")

• Weight

  • ≤ 10 kg (without HDD, 22 lb.)

Certification

• Obtained Certification

  • CE, FCC

• CE

  • EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
