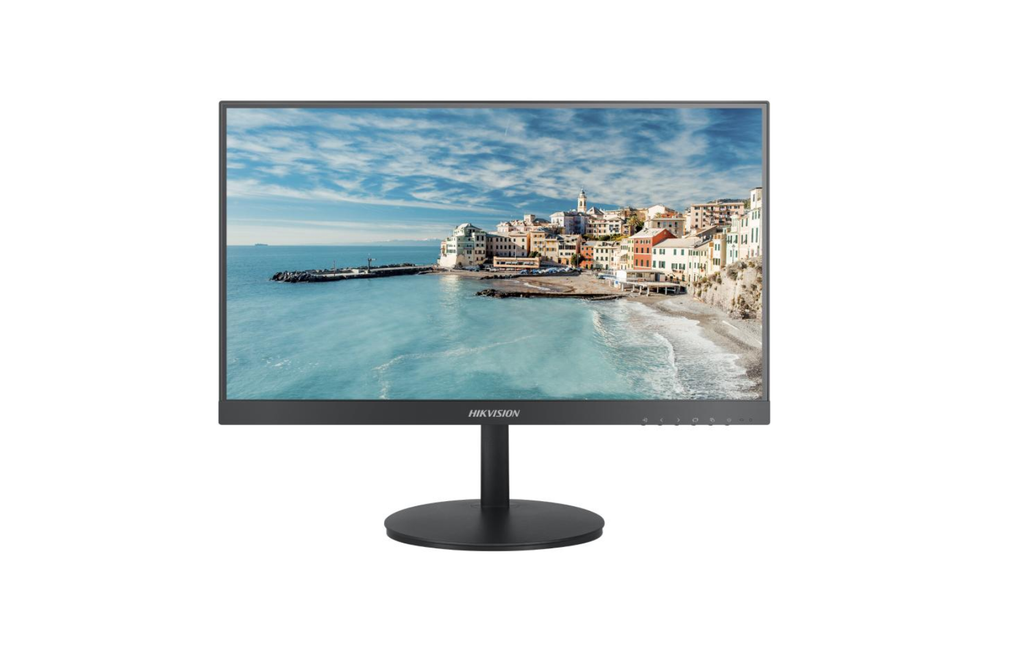

Hikvision DS-D5022FN-C 21.5 inch FHD Borderless Monitor

• Ultra-thin device body with ultra-thin border for 3 sides.
• 2 channels of 8 bit/10 bit LVDS HD (1920 × 1080) display.
• 178° ultra-wide view screen.
• 3D noise reduction.
• Low blue light design for eye care.
• Dual interface of HDMI and VGA.
• Support VESA wall mount.
• Datasheet

Display

• Screen Size: 21.5 inch

• Active Display Area: 478.656 (H) mm × 260.28 (V) mm

• Resolution: 1920 × 1080

• Backlight: E-LED

• Pixel Pitch: 0.0831 (H) mm × 0.241 (V) mm

• Brightness: 250 cd/m²

• Viewing Angle: 178° (H) / 178° (V)

• Color Depth: 8 bit

• Contrast Ratio: 3000:1

• Response Time: 6.5 ms

• Refresh Rate: 60 Hz

• Haze: 25%

• Reliability: 7 × 24 h continuous operation

• Color Gamut: 72% NTSC

Interface

• Video & Audio Input: HDMI 1.4 × 1, VGA × 1

Power

• Power Supply: 100 to 240 VAC, 50/60 Hz

• Power Consumption: ≤ 22 W

• Standby Consumption: ≤ 0.5 W

Working Environment

• Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)

• Working Humidity: 20% to 90% RH (without condensation)

• Storage Temperature: –20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)

• Storage Humidity: 10% to 90% RH (without condensation)

General

• Casing Material: Plastic

• VESA Mount: 75 mm × 75 mm, 4 × M6 × 6 screw holes

• Bezel Width: Top: 1.88 mm, Bottom: 19 mm, Left: 1.88 mm, Right: 1.88 mm

• Product Dimensions (W × H × D):

  • With base: 492.356 × 390.11 × 200.20 mm (19.38'' × 15.36'' × 7.88'')

  • Without base: 492.356 × 289.680 × 43.88 mm (19.38'' × 11.40'' × 1.73'')

• Package Dimensions (W × H × D): 647 × 111 × 406 mm (25.49'' × 4.37'' × 15.99'')

• Net Weight: 2.6 ± 0.5 kg (5.7 ± 1.1 lb)

• Gross Weight: 4.0 ± 0.5 kg (8.8 ± 1.1 lb)

Packing List

• Monitor × 1

• AC Power Cable × 1

• Base Bracket × 1

• User Manual × 1

• Quick Start Guide × 1

• HDMI Cable × 1
