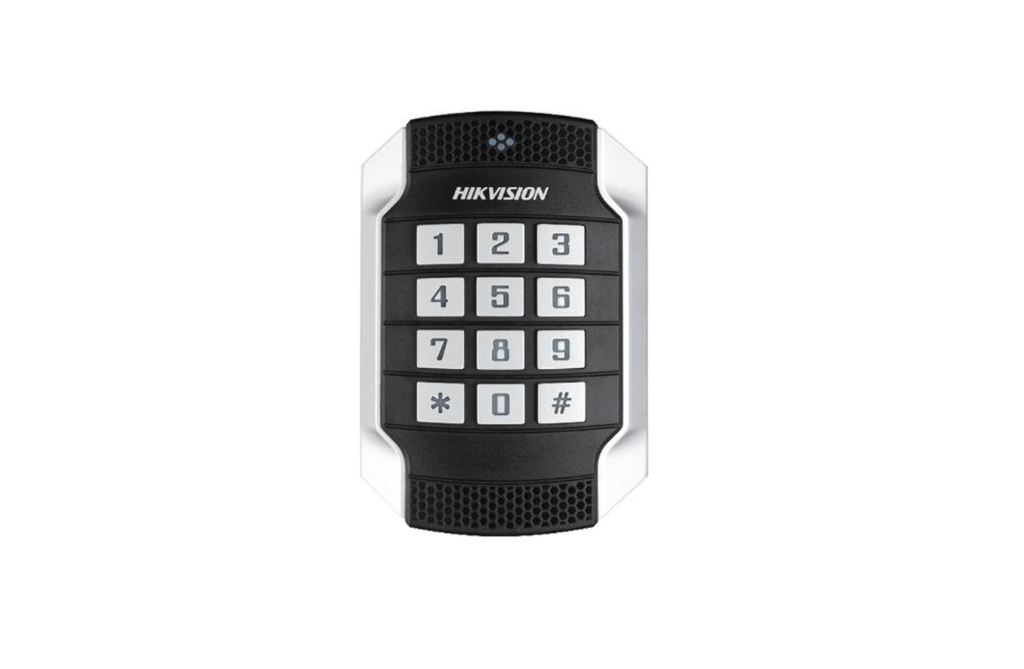

Hikvision DS-K1104MK Pro 1104 Series Metal Vandal-proof Card Reader

• M1 card reader
• PC+zinc-alloy material shell
• Built-in audible beeper
• RS-485 and Wiegand interface
• IK10
• Datasheet

General

• Power Supply: 12 VDC, ≤ 500 mA

• Power Consumption: ≤ 2 W

• Working Temperature: –20 °C to 65 °C (–4 °F to 149 °F)

• Working Humidity: 10% to 90% (non-condensing)

• Dimensions: 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91”)

• Installation: Suitable for 86 & 120 Gang Box

• Weight: ≤ 0.52 kg (1.1 lb)

Keypad

• DS-K1104M: No keypad

• DS-K1104MK: Keypad with 12 keys (0–9, *, #)

Buzzer

• Support: Yes

Function

• ID Settings: Configurable via DIP switch
