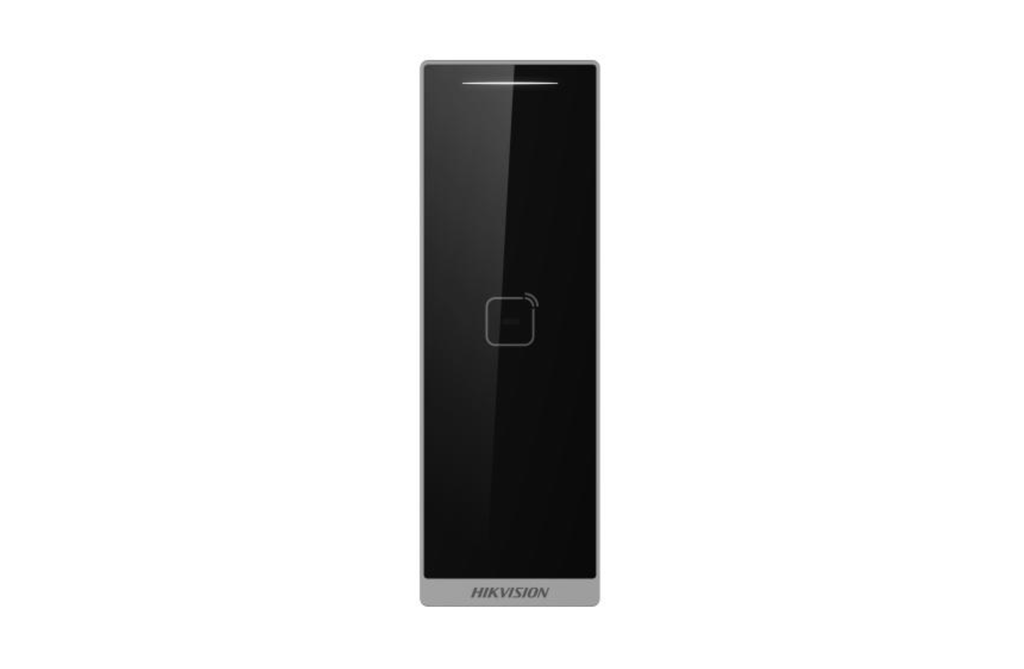

Hikvision DS-K1105EDB Pro Series Multi-Technology Card Reader (IP66)

Professional access control card reader supporting multiple authentication methods including M1, EM, DESfire, Bluetooth, and wave-to-open functionality. Designed for outdoor environments with IP66 protection.

Datasheet

---

Key Features

• Supports RS-485, Wiegand (W26/W34), and OSDP protocols

• Built-in M1 (13.56 MHz) and EM (125 KHz) card reading module

• Supports DESfire card reading

• Multiple authentication methods:

  • Card

  • Bluetooth

  • Wave-to-open (gesture recognition)

• Touch panel operation

• Built-in buzzer for reading status indication

• Occlusion detection support

• Supports online firmware upgrade

• IP66-rated weatherproof design

---

Authentication

• Supported Card Types:

  • EM Card (125 KHz)

  • M1 Card (13.56 MHz)

  • DESfire Card

---

Interface

• RS-485: Supported

• Wiegand: Supported (W26/W34)

• OSDP: Supported

---

General Specifications

• Power Supply: DC 12V

• Power Consumption: ≤ 6W

• Working Temperature: -40°C to 65°C

• Working Humidity: 0% to 90%

• Protection Level: IP66

• Installation: Wall mounting

• Dimensions (W × H × D):
  139 × 46 × 21.2 mm
  (5.47 × 1.81 × 0.83 inch)

• Weight: 167.7 g

• Buzzer: Supported
