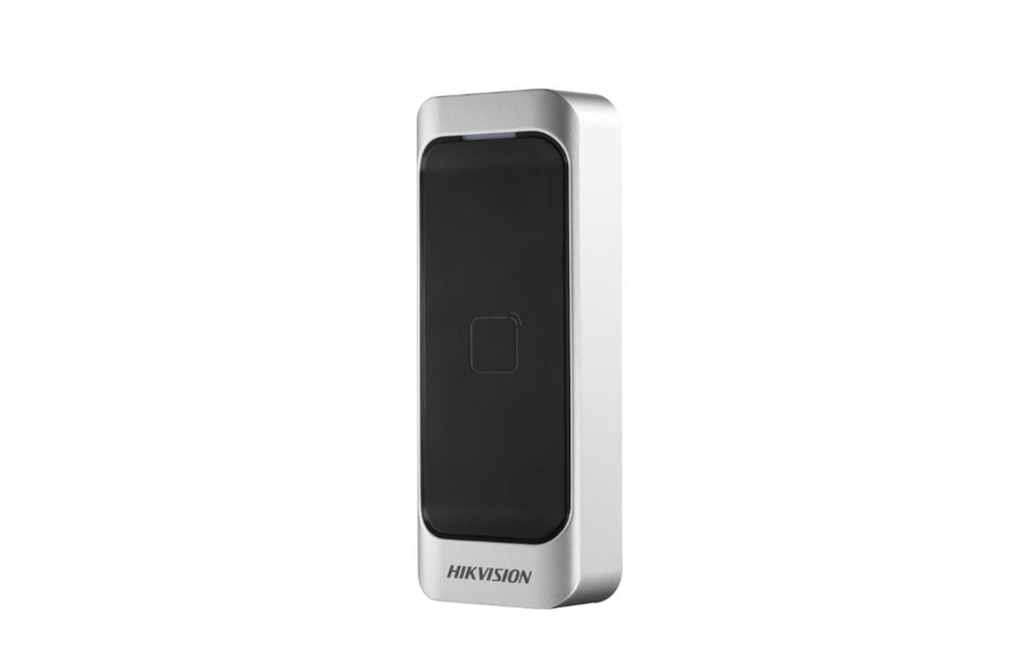

Hikvision DS-K1107M Pro 1107 Series Card Reader

• Mifare1 card reader
• Built-in audible beeper
• RS-485， Wiegand (W26/W34) protocol, and OSDP protocol
• IP65
• Datasheet

System

• Processor: 32-bit

• TAMPER: Supported

• RS-485: Supported

• Wiegand: Supported

Authentication

• Card Reading Distance: ≤ 50 mm (≤ 1.97")

General

• Indicator: Power Indicator, Status Indicator

• Power Supply: 12 VDC

• Power Consumption: ≤ 2 W

• Working Temperature: –20 °C to +65 °C (–4 °F to 149 °F)

• Working Humidity: 10% to 90% (non-condensing)

• Protective Level: IP65

• Dimensions: 115 mm × 44 mm × 22 mm (4.53” × 1.73” × 0.87”)

• Keypad:

  • No Keypad (DS-K1107E and DS-K1107M)

  • Keypad with 12 Keys (0–9, *, #) (DS-K1107EK and DS-K1107MK)

• Buzzer: Supported

Function

• ID Settings: Configurable via DIP Switch
