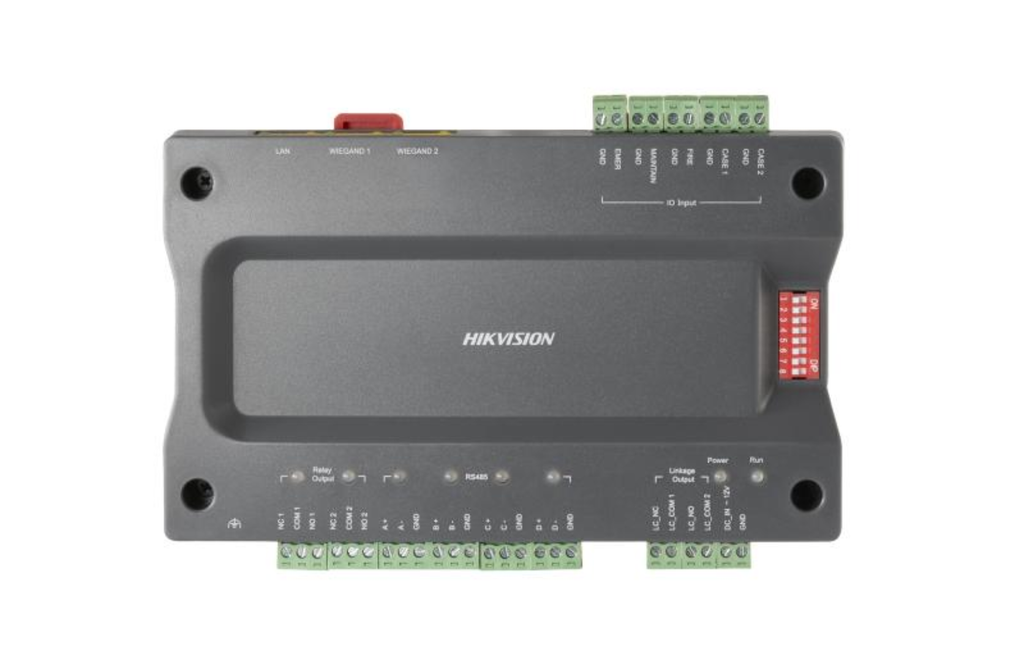

Hikvision DS-K2210 Elevator Master Controller

• Master elevator controller
• Control 128 floors' permissions
• 20,000 cards and 50,000 events storage
• Uplink Communication: TCP/IP and RS-485
• Multiple authentication modes
• Configure and manage device via web client and client software
• Watchdog and tamper-proof function
• Accessible Card Reader: 2 Wiegand readers or 2 RS485 readers
• Datasheet

Device Interface

• Communication: TCP/IP, RS-485, and Wiegand

• Input Interface: 1 Panic Button, 1 Fire Alarm Button, 1 Maintenance Button

• Output Interface: 5 Relay Outputs

• Internal Clock: Supported

• RTC: Supported

General

• Working Temperature: –40 °F to 158 °F

• Working Humidity: 0% to 90% (non-condensing)

• Power Supply: 12 VDC ±15%

• Installation: Guide Rail Installation

• Dimensions: 167 mm (L) × 105 mm (W) × 30 mm (H)

System Parameters

• Processor: 32-bit

• Indicator:

  • Power On: Solid Green

  • Running Properly: Flashing Green

  • Running Exception: Solid Red

  • Serial Port Not Communicating: Off

  • Serial Port Communicating: Solid Green

  • Relay NC: Off

  • Relay NO: Solid Green

  • Network Disconnected: Off

  • Network Cable Connected: Solid Yellow, Flashing Green

  • Network Armed: Solid Yellow, Flashing Green

• Card Reader: Supports up to 2 RS-485 card readers or 2 Wiegand card readers
