Description

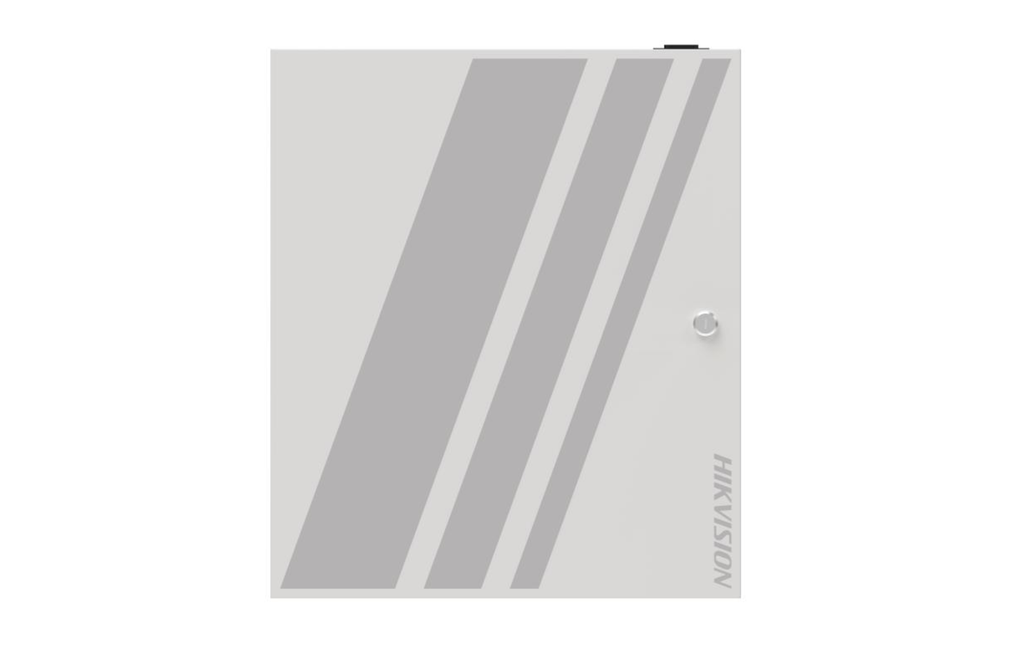

Access Controller
- Supports 8-door control. It is formed by 2 DS-K2M002X access modules, and one 4-doors access controller
- Access controller: downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus. Access Module: supports 8-ch RS-485 interface for card reader connecting
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
- Datasheet
System
-
Operating System: Linux
Network
-
Wired Network: 1 × 10/100/1000 Mbps self-adaptive
Interface
-
Network Interface: 1
-
Lock Control: 8 (4 on access controller, 4 on access modules)
Note: The cabinet contains 1 × DS-K2704X(P) access controller and 2 × DS-K2M002X access modules. -
Exit Button: 8 (4 on access controller, 4 on access modules)
Note: The cabinet contains 1 × DS-K2704X(P) access controller and 2 × DS-K2M002X access modules. -
Door Contact Input: 8 (4 on access controller, 4 on access modules)
Note: The cabinet contains 1 × DS-K2704X(P) access controller and 2 × DS-K2M002X access modules. -
Alarm Input: 16 (8 on access controller, 8 on access modules)
Note: The cabinet contains 1 × DS-K2704X(P) access controller and 2 × DS-K2M002X access modules. -
Alarm Output: 8 (4 on access controller, 4 on access modules)
Note: The cabinet contains 1 × DS-K2704X(P) access controller and 2 × DS-K2M002X access modules. -
TAMPER: 1
-
RS-485: 15 total
-
7 on access controller:
-
2 for card readers
-
5 for access modules (4 for communication, each supporting up to 16 access modules; 1 for redundancy)
-
-
8 on access modules:
-
4 for card readers
-
4 for access controller
-
-
-
Wiegand: 8 (4 on access controller, 4 on access modules)
Note: The cabinet contains 1 × DS-K2704X(P) access controller and 2 × DS-K2M002X access modules. -
USB: 1 × USB 2.0
-
Fire Interface: 1
Capacity
-
User Capacity: 100,000
-
Fingerprint Capacity: 10,000
-
Card Capacity: 200,000
-
Event Capacity: 600,000
-
Linked Door Capacity: 8 (4 on access controller, 4 on access modules)
-
Linked Card Reader Capacity:
-
16 RS-485 card readers (OSDP protocol) and 8 Wiegand card readers
-
8 RS-485 card readers on access controller and 8 on access modules (4 for each)
-
4 Wiegand card readers on access controller and 2 on access modules
-
Authentication
-
Fingerprint Recognition Duration: < 1 s
General
-
Indicator:
-
DS-K2704X(P): 12 indicators — 1 for power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status
-
DS-K2M002X: 6 indicators — 1 for power status, 1 for running status, 2 for RS-485 status, and 2 for door status
-
-
Battery: Supports charge and discharge
-
Power Supply: 100 VAC to 240 VAC
-
Power Consumption: ≤ 200 W
-
Working Temperature: –10 °C to 55 °C (14 °F to 131 °F)
-
Working Humidity: 0% to 90% (non-condensing)
-
Installation: Wall mounting
-
Language Support: English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Function
-
Configuration via Web Browser: Supported
-
Multi-Factor Authentication: Supported
-
First Person In: Supported
-
Anti-Passback: Supports 32 routes (64 card readers each)
-
Multi-Door Interlocking: Supports 32 groups (32 doors each)
