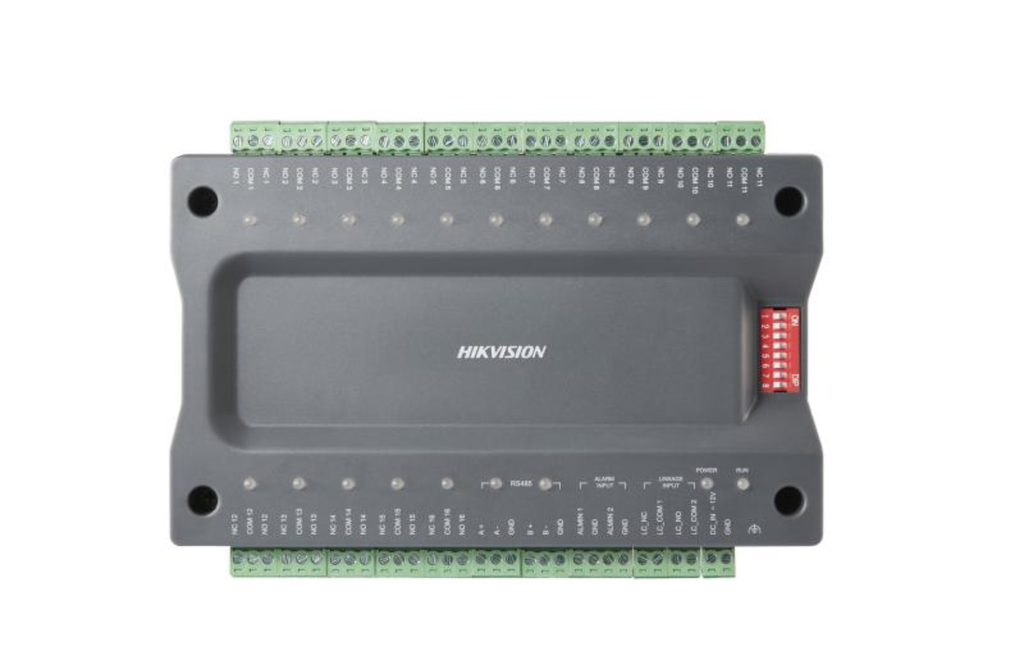

Hikvision DS-K2M0016A Elevator Sub-Controller

• Distributed elevator controller
• Connectable with up to 16 relays to control floor buttons in the elevator
• RS-485 communication with the master elevator controller
• DIP switch settings for device address and relay types
• Up to 8 distributed elevator controllers can be linked to the master elevator controller
• Control the elevator via the relay
• Datasheet

Device Interface

• RS-485 Interface: 2

• Alarm Input: 2

• Relay Output: 16

• Buzzer: 1

General

• Working Temperature: –40 °F to 158 °F

• Working Humidity: 0% to 90% (non-condensing)

• Power Supply: 12 VDC ±15%

• Installation: Guide Rail Installation

• Tamper-Proof: 1

• Dimensions: 167 mm (L) × 105 mm (W) × 30 mm (H)

System Parameter

• Processor: 32-bit
