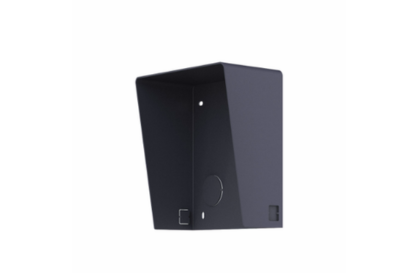

Hikvision DS-KABD8003-RS1 2nd Gen Door Shroud to suit DS-KD-ACW1

Rain Shield of Module Door Station

• Convenient design available for the 1 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
• Material: SECC

General

• Working Temperature: -40° C to +60° C (-40° F to 140° F)
• Working Humidity: 10% to 95%
• Weight: 298.9 g
• Dimension (W × H × D): 122 x 116.4 × 58 mm (4.80" x 4.58" x 2.28")
• Material: SECC (Steel, Electrogalvanized, Cold-rolled, Coil)

Installation Instructions

1. Preparation:

   • Paste the installation sticker onto the wall. Ensure the sticker is level using a gradienter.
   • Drill 4 holes aligned with the screw holes on the sticker. Suggested hole size: 6 mm (diameter) × 25 mm (depth).

2. Mounting Frame and Shield:

   • Remove the sticker and insert expansion sleeves into the screw holes.
   • Fix the mounting frame and protective shield onto the wall with 4 expansion bolts.

3. Connecting Cables:

   • Connect the cables to the corresponding interfaces of the main unit and insert the unit into the frame.

4. Securing the Cover:

   • Use the hexagon wrench provided in the package to fix the cover onto the frame
